Offer enquiry Connectors

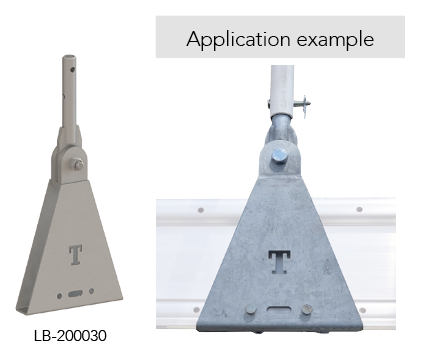

Suspension shoe

• Made of steel

Article no. Width Height Weight piece
LB-200030 30 cm 63 cm 9,5 kg
Suspension shoe Tobler AG

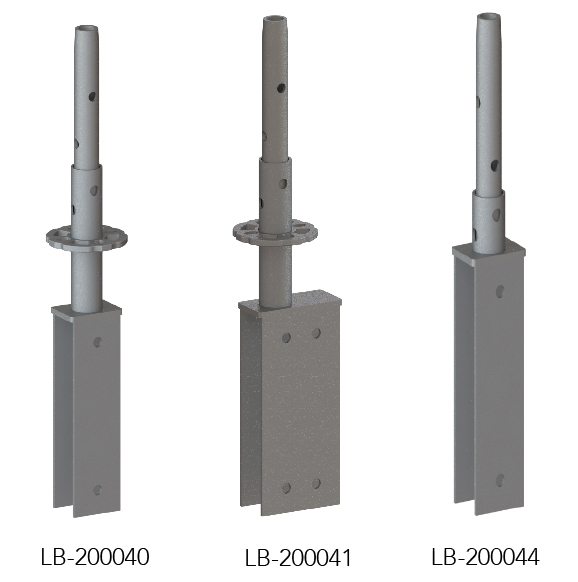

Shaft connection

• Made of steel

Article no. Designation Width Height Weight piece
LB-200040 - 9 cm 70 cm 4,9 kg
LB-200041 wide 13 cm 70 cm 6,2 kg
LB-200044 without plate 9 cm 55 cm 3,4 kg
Shaft connection Tobler AG

Bolt with spring cotter

• Made of steel

Article no. Designation Weight piece
LB-834002 Ø 12 x 85 mm 0,08 kg
Bolt with spring cotter Tobler AG

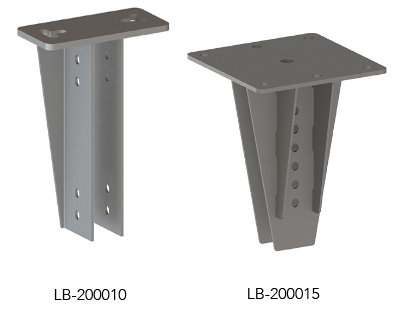

Ceiling connection

• Made of steel

Article no. Designation Height Weight Base plate piece
LB-200010 - 33 cm 5,4 kg 25 x 12 cm
LB-200015 heavy 34 cm 11,5 kg 30 x 30 cm
Ceiling connection Tobler AG

Wall connection

• Made of steel

Article no. Height Weight Base plate piece
LB-200015 9 cm 10,0 kg 20 x 20 cm
Wall connection Tobler AG

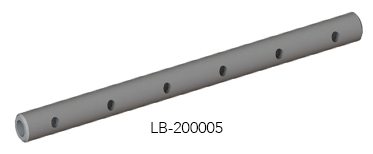

Connecting tube

• Made of steel
• Ø 38 x 8 mm

Article no. Length Weight piece
LB-200005 60 cm 3,4 kg
Connecting tube Tobler AG

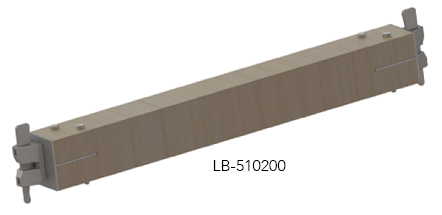

Wooden ledger

Article no. Length Weight piece
LB-510100 100 cm 5,2 kg
LB-510150 150 cm 6,9 kg
LB-510200 200 cm 8,6 kg
LB-510250 250 cm 10,3 kg
LB-510300 300 cm 12,0 kg
Wooden ledger Tobler AG

Wind protection with leaf spring

• Made of hot-dip galvanised steel

Article no. Height Weight Base plate piece
LB-276015 9,1 cm 0,6 kg 16 x 6 cm
Wind protection with leaf spring Tobler AG

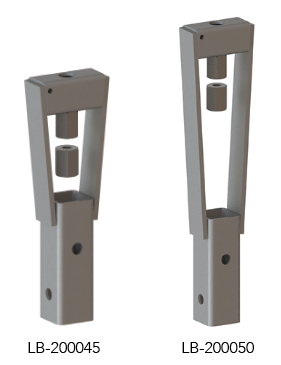

Swiss Gewi suspension

• Made of steel

Article no. Designation Height Weight piece
LB-200045 small 36 cm 3,1 kg
LB-200050 large 50 cm 3,7 kg
Swiss Gewi suspension Tobler AG

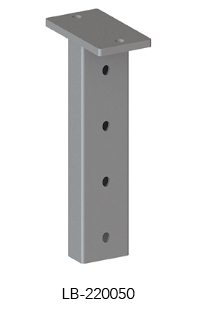

Pressure plate

• Made of steel
• Base plate 18 x 10 cm

Article no. Length Weight piece
LB-220030 30 cm 4,3 kg
LB-220050 50 cm 6,6 kg
LB-220075 75 cm 8,8 kg
LB-220100 100 cm 11,0 kg
LB-220125 125 cm 14,0 kg
Pressure plate Tobler AG

LB beam connection to pressure plate

• Made of steel

Article no. Length Height Weight piece
LB-220010 31 cm 28 cm 4,8 kg
LB beam connection to pressure plate Tobler AG

AR ledger connection

• Made of steel

Article no. Width Height Weight piece
LB-200042 15 cm 26 cm 1,4 kg
AR ledger connection Tobler AG

AR shaft connection

• Made of steel

Article no. Length Height Weight piece
LB-200043 38 cm 50 cm 7,6 kg
AR shaft connection Tobler AG

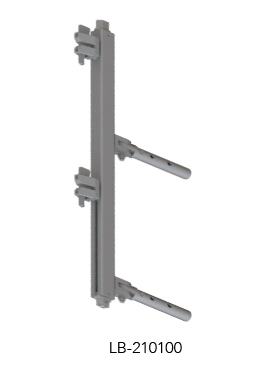

Height adjustable, rotating posts

• Made of steel
• With fast-running thread

Article no. Length Weight Height adjustment piece
LB-210100 100 cm 15,0 kg 30 cm
Height adjustable, rotating posts Tobler AG

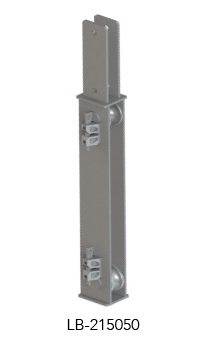

Assembly aid, beam with steel wheels

• Made of steel

Article no. Length Weight Steel wheel dia. piece
LB-215050 103 cm 18,8 kg 10 cm
Assembly aid, beam with steel wheels Tobler AG

All prices net in CHF, excl. VAT and transport, ex warehouse. Tobler AG general terms & conditions apply.
