Tobler Manu Handset Formwork

A system that fits all floor plans and heights.

With the lightest, toughest handset formwork, building is an efficient and flexible affair – with no need for a crane. Give concrete its best shape by hand.

arrow Your advantages

  • Forming without crane
  • Minimal net weight
  • Uniquely practical
  • Maximum economy
  • Indestructible aluminium profiles
  • 4 standard heights, 3 element widths



Sustainably cost-efficient

Tobler Manu is a standardised system that makes formwork significantly more cost-effective – regardless of layout or height. Where previously squared timber, boards, nails, or even a crane were required, the practical Tobler Manu modular system makes you faster and much more flexible.

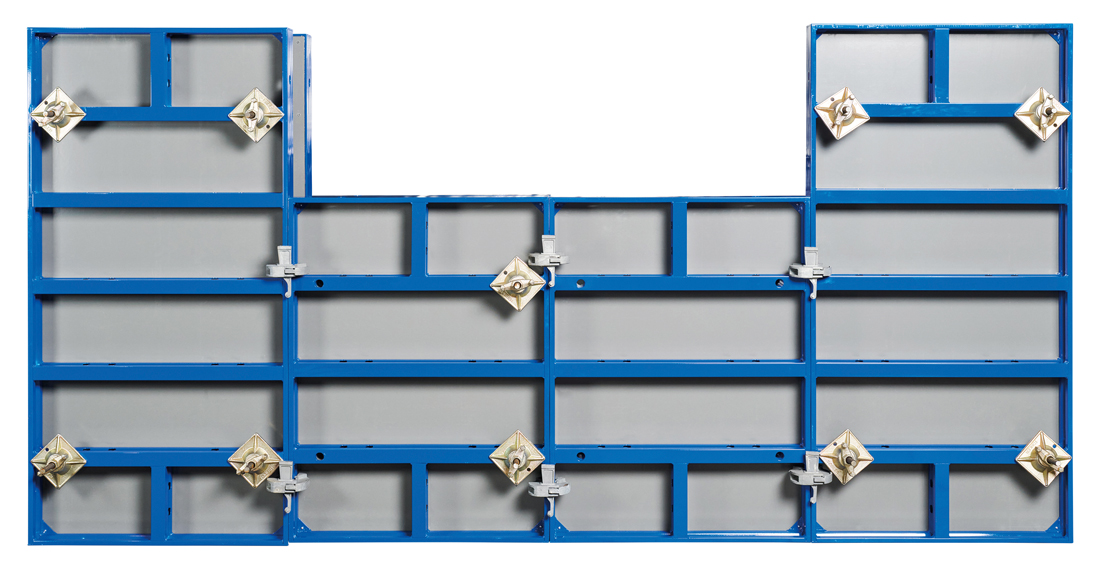

Flexibility with a few standard elements

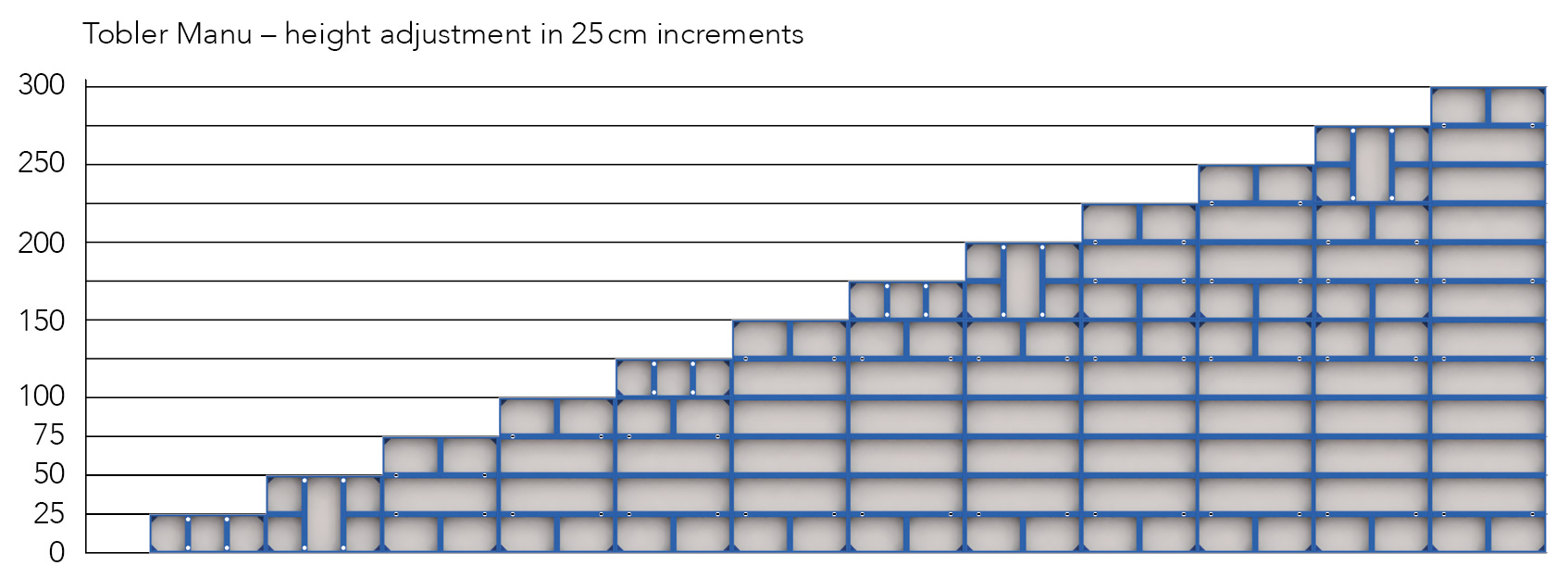

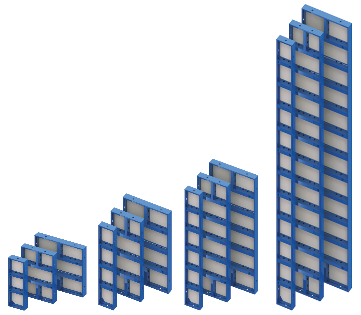

Tobler Manu elements are available in standard heights of 75, 100, 150, and 300 cm and with element widths of 25, 50, and 75 cm.



The «genuine» handset formwork

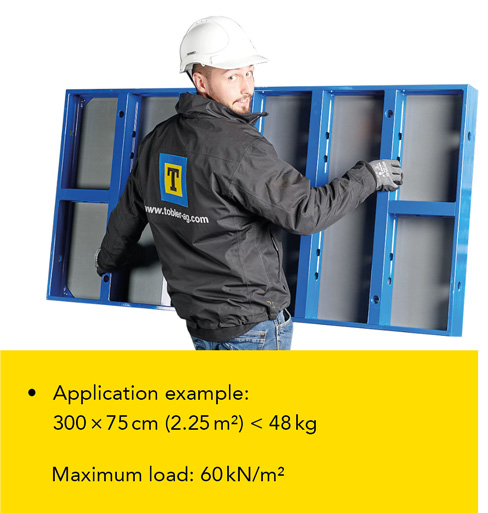

  • Minimal net weight

  • Safe handling
  • Easy and secure connections
  • Horizontal formwork with foundation clamps
  • Low complexity thanks to fewer element sizes
  • The fewest components in its class
  • Extremely resilient formwork shell, up to 1500 uses

Security of investment from all-round competence in engineering

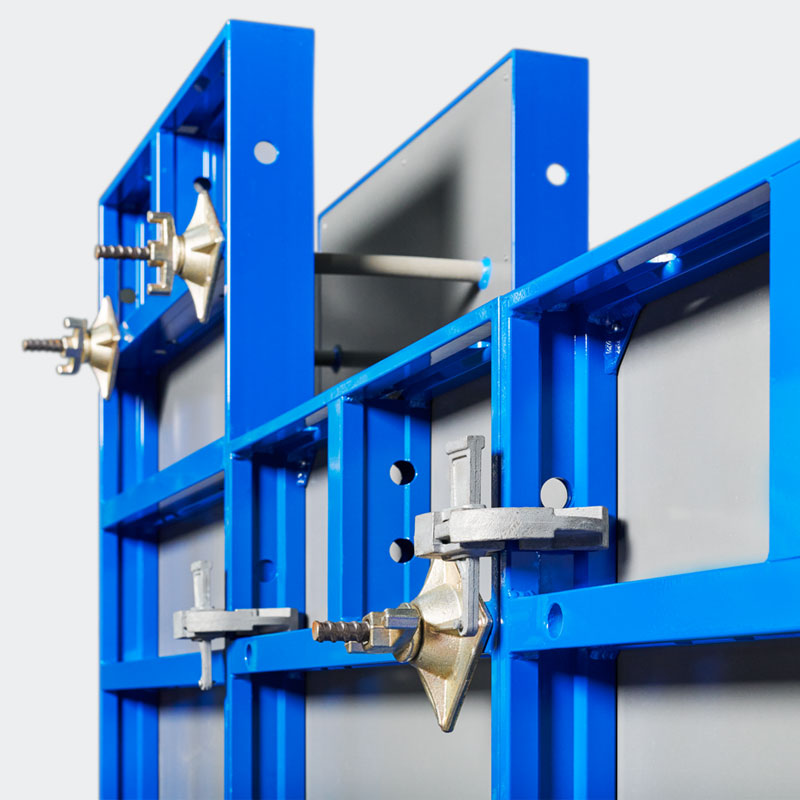

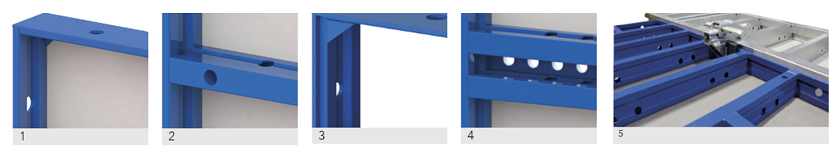

  • The indestructible frame profile made of premium solid aluminium guarantees durability (1). The ergonomic cross profile makes the elements particularly practical to handle (2).
  • All cross beams have openings for connecting commercially available push-pull props and other accessories, and do not allow any deformation (2).
  • The formwork shell is protected by an integrated steel tube in the area of the anchor hole. This eliminates any additional costs for plastic inserts (3).

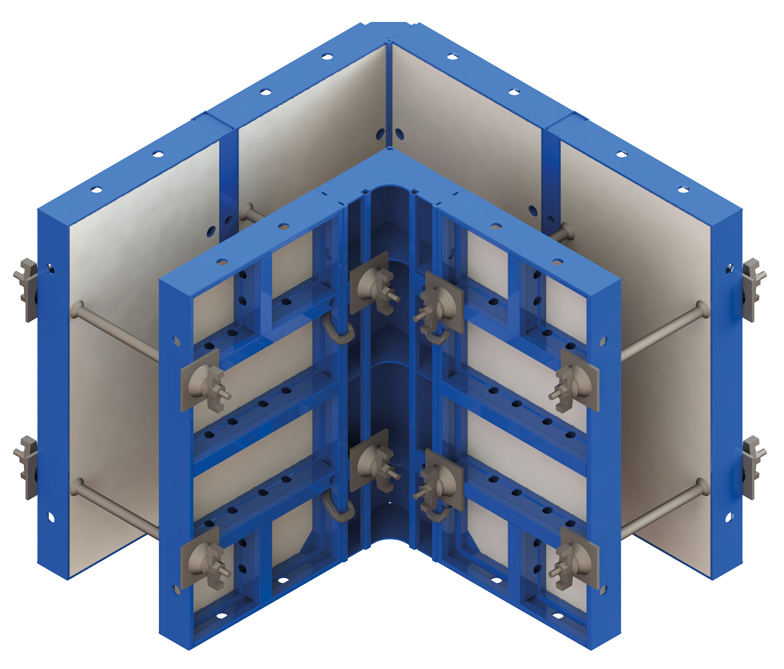

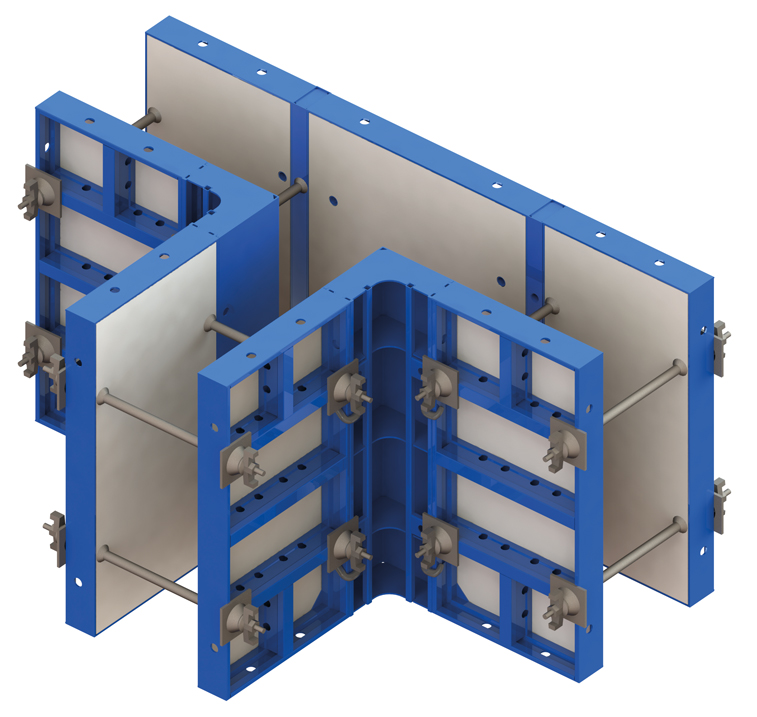

  • An anchor bar ensures extremely flexible support (4). With 5 cm increments, connections to existing walls are no problem. Installation is performed in a windmill design.
  • Tobler Manu can be combined with the ultra-stable Tobler Top wall formwork (5).
