Offer enquiry Product range

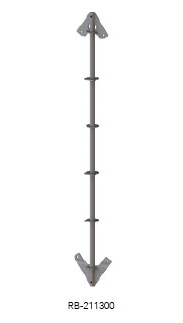

Vertical pole

• Steel

Item no. Length Weight piece
RB-211300 300 cm 25,2 kg
Vertical pole Tobler AG

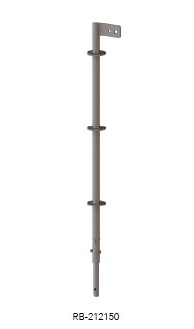

Vertical pole for podium end

• Steel

Item no. Length Weight piece
RB-212150 150 cm 7,5 kg
Vertical pole for podium end Tobler AG

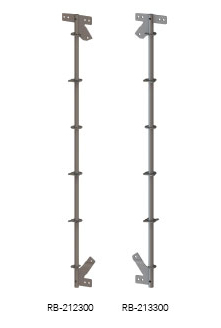

End post

• Steel

Item no. Designation Length Weight piece
RB-212300 End post left 300 cm 23,3 kg
RB-213300 End post right 300 cm 23,3 kg
End post Tobler AG

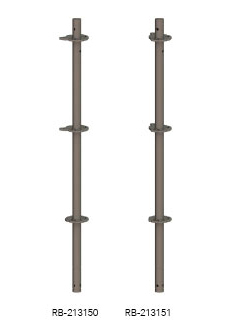

Vertical pole for podium

• Steel

Item no. Designation Length Weight piece
RB-213150 Vertical pole for podium left 150 cm 6,5 kg
RB-213151 Vertical pole for podium right 150 cm 6,5 kg
Vertical pole for podium Tobler AG

Compensating element upper chord

Item no. Length Height Weight piece
RB-150040 40 cm 9 cm 2,5 kg
Compensating element upper chord Tobler AG

Upper chord

Item no. Length Height Weight piece
RB-150110 110 cm 9 cm 7,2 kg
RB-150160 160 cm 9 cm 10,7 kg
Upper chord Tobler AG

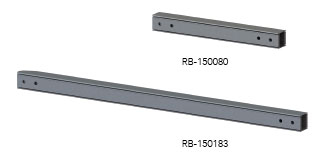

Upper and lower chord

• Aluminium

Item no. Length Height Weight piece
RB-150080 80 cm 9 cm 5,4 kg
RB-150183 183 cm 9 cm 12,5 kg
RB-150600 600 cm 9 cm 41,0 kg
Upper and lower chord Tobler AG

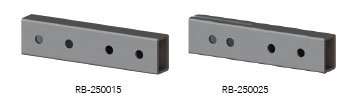

Connection Upper and lower chord

• Steel

Item no. Length Weight piece
RB-250015 35 cm 3,6 kg
RB-250025 35 cm 3,5 kg
Connection Upper and lower chord Tobler AG

Lower diagonal brace for tensioning

• turnable
• Steel

Item no. Length Weight piece
RB-250050 40 cm 3,7 kg
Lower diagonal brace for tensioning Tobler AG

Diagonal rod Swiss Gewi

• Steel

Item no. Weight Field length piece
RB-250200 5,6 kg 200 cm
Diagonal rod Swiss Gewi Tobler AG

Gap covering

• foldable
• Steel

Item no. Length Weight piece
RB-260150 150 cm 9,2 kg
RB-260200 200 cm 12,8 kg
Gap covering Tobler AG

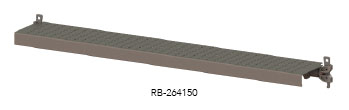

Stairway ledger – Podium

• Steel

Item no. Length Weight piece
RB-264150 150 cm 6,2 kg
RB-264200 200 cm 20,5 kg
Stairway ledger – Podium Tobler AG

Starting piece

• Steel

Item no. Width Height Weight piece
RB-210035 25 cm 35 cm 5,6 kg
Starting piece Tobler AG

Mounting device Road Bridge

• Steel

Item no. Width Height Weight piece
RB-212020 25 cm 33 cm 4,4 kg
Mounting device Road Bridge Tobler AG

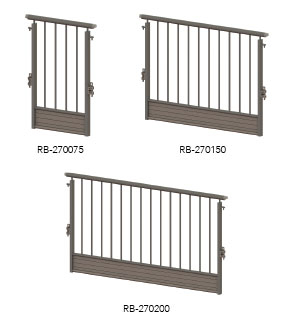

Guardrail with toe board

• Steel

Item no. Length Height Weight piece
RB-270075 75 cm 110 cm 10,1 kg
RB-270100 100 cm 110 cm 12,5 kg
RB-270150 150 cm 110 cm 15,0 kg
RB-270200 200 cm 110 cm 18,5 kg
Guardrail with toe board Tobler AG

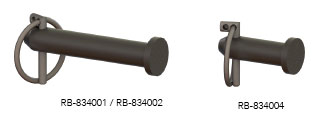

Bolt

• with hinged pin
• Ø 18 mm

Item no. Designation Size piece
RB-834001 for upper and lower chords 18 × 105 mm
RB-834002 for vertical poles 18 × 100 mm
RB-834004 for diagonal rod 18 × 60 mm
Bolt Tobler AG

Platform Aluminium

• up to 600 kg / m²
• 21 mm hook, with wind protection

Item no. Length Width Weight Load capacity piece
3-120150 150 cm 75 cm 12,6 kg 600 kg / m²
3-120200 200 cm 75 cm 16,3 kg 600 kg / m²
3-115150 150 cm 50 cm 8,6 kg 600 kg / m²
3-115200 200 cm 50 cm 11,2 kg 600 kg / m²
Platform Aluminium Tobler AG

All prices net in CHF, excl. VAT and transport, ex warehouse. Tobler AG general terms & conditions apply.
