Brackets

  1. Home
  2. Scaffolding System
  3. All-in-one scaffolding system
  4. MATO 8 Modular scaffolding system
  5. Brackets

Offer enquiry Brackets

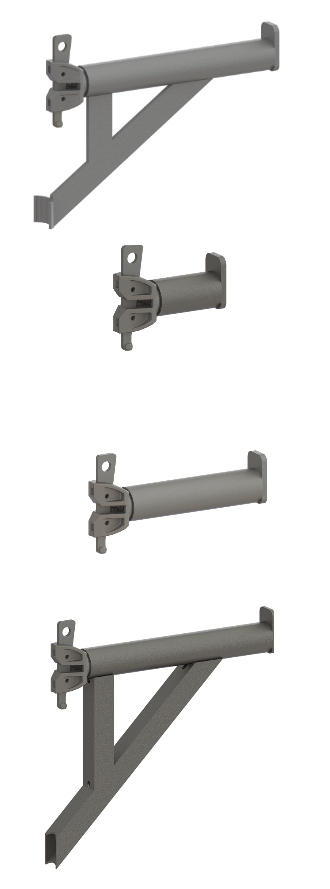

Interior bracket

• with wedge head

Item no. Designation Length Weight piece
8-140035 made of aluminium 35 cm 1,2 kg
8-240015 made of steel 15 cm 1,3 kg
8-240020 made of steel 20,5 cm 1,5 kg
8-240035 made of steel 35 cm 2,8 kg
Interior bracket Tobler AG

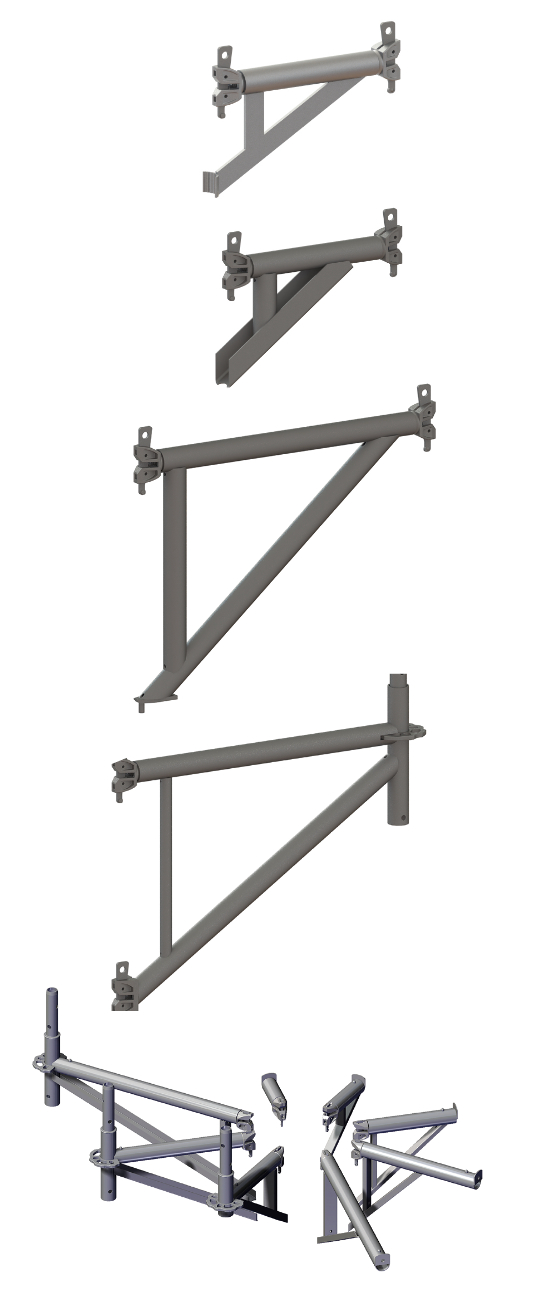

Exterior bracket

Item no. Designation Length Weight piece
8-141040 made of aluminium 40 cm 1,3 kg
8-141045 made of aluminium 45 cm 1,4 kg
8-141075 made of aluminium 75 cm 3,1 kg
8-141110 made of aluminium 110 cm 5,9 kg
8-141125 made of aluminium 125 cm 11,8 kg
8-241040 made of steel 40 cm 3,0 kg
8-241045 made of steel 45 cm 3,2 kg
8-241075 made of steel 75 cm 5,6 kg
8-241110 made of steel 110 cm 8,0 kg
8-242075 made of steel, with drilled disc and wedge coupling 75 cm 7,8 kg
Exterior bracket Tobler AG

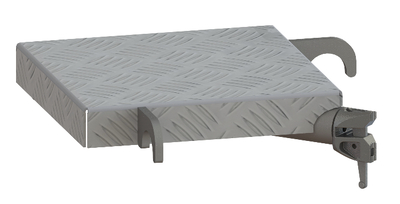

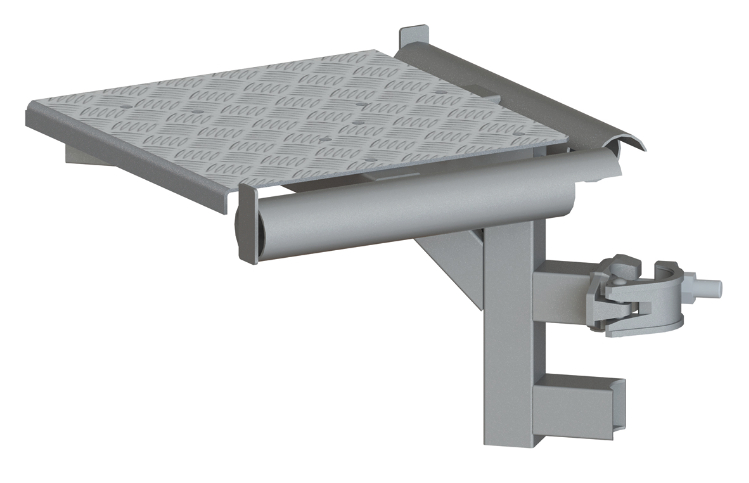

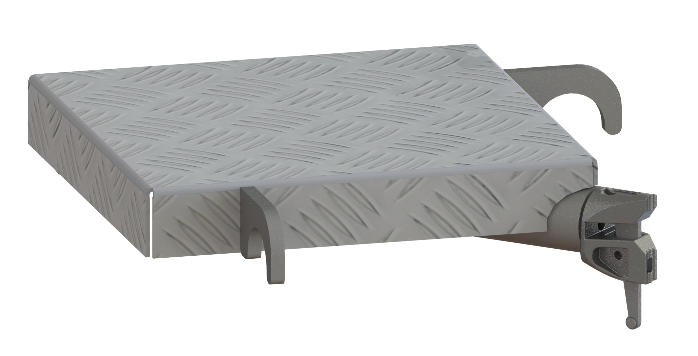

Corner bracket

• interor corner bracket with checker plate

Item no. Designation Length Width Weight piece
1-160015 made of steel / aluminium 15 cm 15 cm 3,5 kg
1-160020 made of steel / aluminium 20 cm 20 cm 4,0 kg
1-160030 made of steel / aluminium 30 cm 30 cm 6,5 kg
1-160070 made of steel / aluminium 70 cm 70 cm 17,9 kg
8-520040 corner covering, made of steel 40 cm 40 cm 5,3 kg
8-520075 corner covering, made of steel 75 cm 75 cm 11,7 kg
Corner bracket Tobler AG

Interior bracket

• made of steel

Item no. Length Weight piece
3-260018 18 cm 2,8 kg
3-260025 25 cm 3,9 kg
3-260037 37,5 cm 6,0 kg
Interior bracket Tobler AG
