Lattice girders Tobler AG Tobler AG

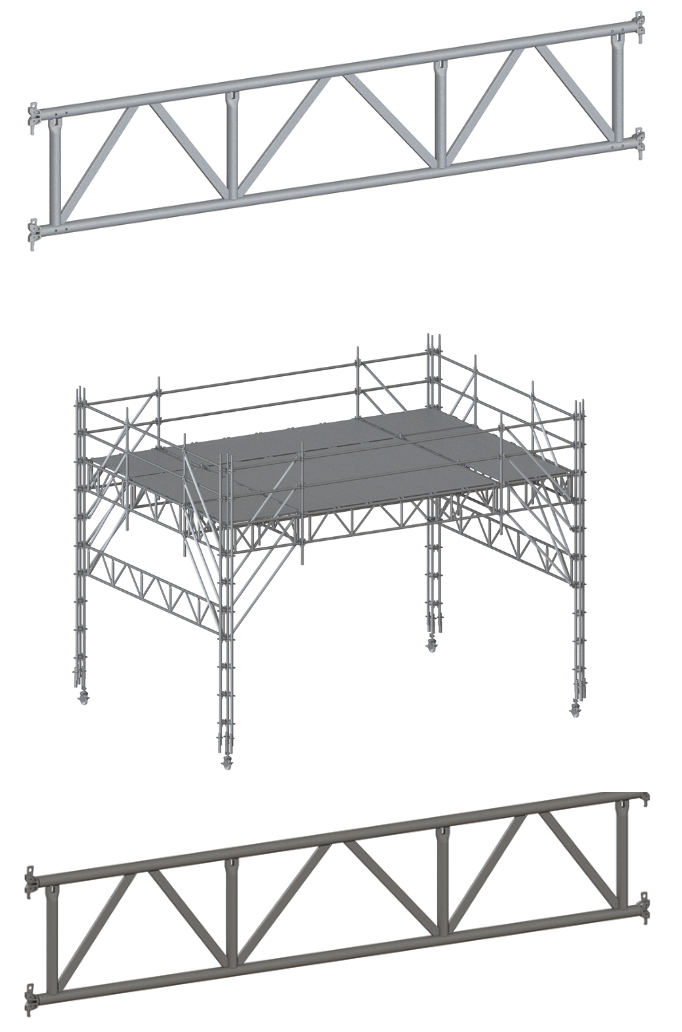

Lattice girders

Offer enquiry Lattice girders

Lattice girders

• non-standard, on special order only

Item no. Designation Length Weight piece
8-150075 made of aluminium 75 cm 8,3 kg
8-150100 made of aluminium 100 cm 9,4 kg
8-150150 made of aluminium 150 cm 11,8 kg
8-150175 made of aluminium 175 cm 12,6 kg
8-150200 made of aluminium 200 cm 13,6 kg
8-150225 made of aluminium 225 cm 15,2 kg
8-150250 made of aluminium 250 cm 16,1 kg
8-150300 made of aluminium 300 cm 18,0 kg
8-150400 made of aluminium 400 cm 22,3 kg
8-150500 made of aluminium 500 cm 26,6 kg
8-150600 made of aluminium 600 cm 31,0 kg
8-150700 made of aluminium 700 cm 35,2 kg
8-150750 made of aluminium 750 cm 37,6 kg
8-150800 made of aluminium 800 cm 39,6 kg
8-250200 made of steel 200 cm 23,7 kg
8-250400 made of steel 400 cm 44,4 kg
8-250500 made of steel 500 cm 54,8 kg
8-250600 made of steel 600 cm 65,2 kg
Lattice girders Tobler AG

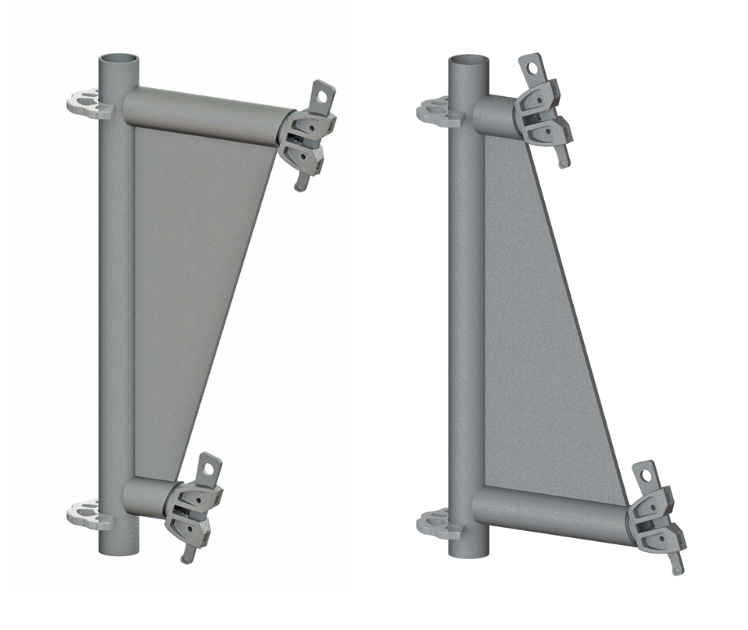

Beam connectors

• made of steel
• connecting section with 18° incline for creating snow-, bike- or other ramps.

Item no. Designation Weight piece
8-250030 Beam connector 1 8,3 kg
8-250031 Beam connector 2 8,3 kg
Beam connectors Tobler AG

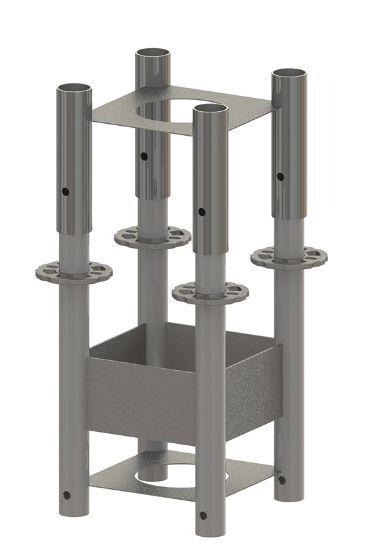

Initial and end piece

• made of steel
• tube Ø 38 mm
• Further prop segments for Tobler heavy-duty prop 25 × 25 cm and Tobler heavy-duty tower available upon request

Item no. Length Weight piece
8-216050 50 cm 16,0 kg
Initial and end piece Tobler AG
