Platforms

  1. Home
  2. Scaffolding System
  3. All-in-one scaffolding system
  4. MATO 8 Modular scaffolding system
  5. Platforms

Offer enquiry Platforms

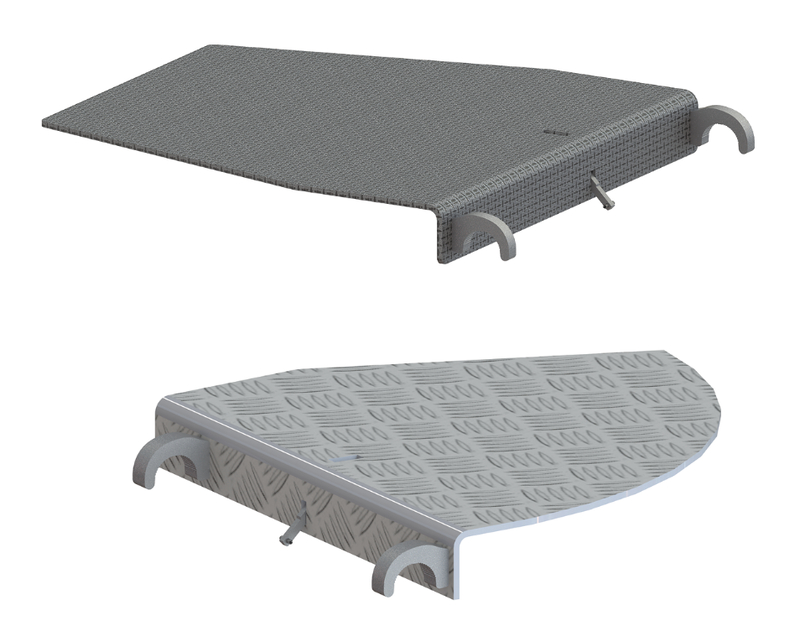

Compensating platform

• Made of aluminium
• Eliminates gaps between consoles and frame scaffolds
• Compatible with scaffolding systems MATO 1 and MATO 8

Item no. Designation Length Width Weight HB piece
Z-165065 Straight execution, with wind protection 60 cm 60 cm 4,7 kg 16,5 mm
Z-165055 Round execution, with wind protection 55 cm 62 cm 4,2 kg 25 mm
Compensating platform Tobler AG

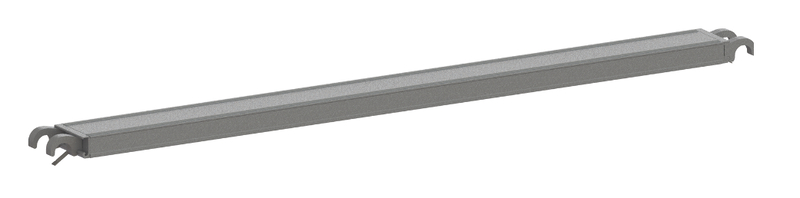

Aluminium platform width 15cm

• up to 600 kg / m²
• HB 25 mm, with wind lock

Item no. Designation Length Width Weight piece
Z-118065 Load capacity 600 kg/m² 65 cm 15 cm 2,3 kg
Z-118070 Load capacity 600 kg/m² 70 cm 15 cm 2,4 kg
Z-118075 Load capacity 600 kg/m² 75 cm 15 cm 2,5 kg
Z-118100 Load capacity 600 kg/m² 100 cm 15 cm 2,9 kg
Z-118125 Load capacity 600 kg/m² 125 cm 15 cm 3,3 kg
Z-118150 Load capacity 600 kg/m² 150 cm 15 cm 3,8 kg
Z-118180 Load capacity 600 kg/m² 180 cm 15 cm 4,4 kg
Z-118200 Load capacity 600 kg/m² 200 cm 15 cm 4,7 kg
Z-118250 Load capacity 450 kg/m² 250 cm 15 cm 5,6 kg
Z-118300 Load capacity 300 kg/m² 300 cm 15 cm 8,5 kg
Aluminium platform width 15cm Tobler AG

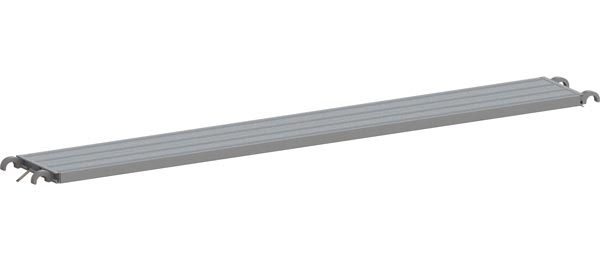

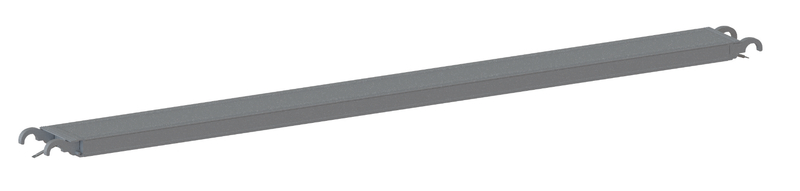

Aluminium platform width 20 cm

• up to 600 kg / m²
• HB 18.5 mm, with wind lock

Item no. Designation Length Width Weight piece
Z-119065 Load capacity 600 kg/m² 65 cm 20 cm 2,5 kg
Z-119070 Load capacity 600 kg/m² 70 cm 20 cm 2,6 kg
Z-119075 Load capacity 600 kg/m² 75 cm 20 cm 2,7 kg
Z-119100 Load capacity 600 kg/m² 100 cm 20 cm 3,2 kg
Z-119125 Load capacity 600 kg/m² 125 cm 20 cm 3,8 kg
Z-119150 Load capacity 600 kg/m² 150 cm 20 cm 4,3 kg
Z-119175 Load capacity 600 kg/m² 175 cm 20 cm 4,7 kg
Z-119180 Load capacity 600 kg/m² 180 cm 20 cm 4,8 kg
Z-119200 Load capacity 600 kg/m² 200 cm 20 cm 5,3 kg
Z-119225 Load capacity 600 kg/m² 225 cm 20 cm 5,8 kg
Z-119250 Load capacity 450 kg/m² 250 cm 20 cm 6,4 kg
Z-119300 Load capacity 300 kg/m² 300 cm 20 cm 9,3 kg
Aluminium platform width 20 cm Tobler AG

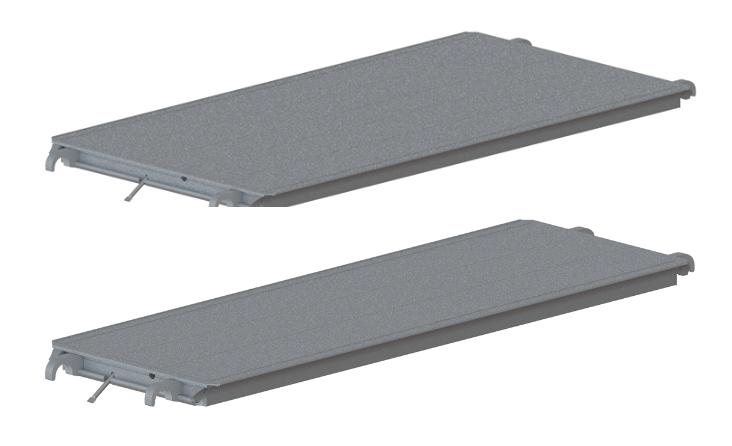

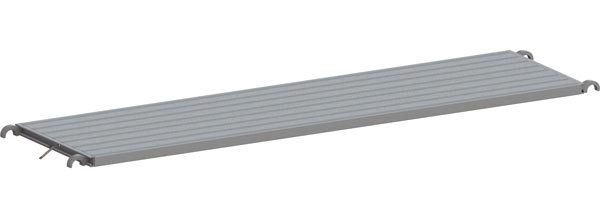

Full-aluminium platform width 64 cm

• up to 600 kg / m²
• up to HB 25 mm, with wind lock
• fully recycable and easy to handle
• with round tube support

Item no. Designation Length Width Weight DIBt piece
Z-121070 Load capacity 600 kg/m² 70 cm 64 cm 5,7 kg DIBt
Z-121075 Load capacity 600 kg/m² 75 cm 64 cm 6,0 kg DIBt
Z-121100 Load capacity 600 kg/m² 100 cm 64 cm 7,5 kg DIBt
Z-121125 Load capacity 600 kg/m² 125 cm 64 cm 8,9 kg DIBt
Z-121150 Load capacity 600 kg/m² 150 cm 64 cm 10,4 kg DIBt
Z-121180 Load capacity 600 kg/m² 180 cm 64 cm 12,1 kg DIBt
Z-121200 Load capacity 600 kg/m² 200 cm 64 cm 13,4 kg DIBt
Z-121225 Load capacity 600 kg/m² 225 cm 64 cm 14,8 kg DIBt
Z-121250 Load capacity 450 kg/m² 250 cm 64 cm 16,3 kg DIBt
Z-121300 Load capacity 200 kg/m² 300 cm 64 cm 19,2 kg DIBt

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

Full-aluminium platform width 64 cm Tobler AG

Full-aluminium platform width 32 cm

• up to 600 kg / m²
• HB 25 mm, with wind lock

Item no. Designation Length Width Weight DIBt piece
Z-126070 Load capacity 600 kg/m² 70 cm 32 cm 3,6 kg DIBt
Z-126075 Load capacity 600 kg/m² 75 cm 32 cm 3,8 kg DIBt
Z-126100 Load capacity 600 kg/m² 100 cm 32 cm 4,6 kg DIBt
Z-126125 Load capacity 600 kg/m² 125 cm 32 cm 5,6 kg DIBt
Z-126150 Load capacity 600 kg/m² 150 cm 32 cm 6,4 kg DIBt
Z-126180 Load capacity 600 kg/m² 180 cm 32 cm 7,6 kg DIBt
Z-126200 Load capacity 600 kg/m² 200 cm 32 cm 8,2 kg DIBt
Z-126225 Load capacity 450 kg/m² 225 cm 32 cm 9,1 kg DIBt
Z-126250 Load capacity 450 kg/m² 250 cm 32 cm 10,0 kg DIBt
Z-126300 Load capacity 450 kg/m² 300 cm 32 cm 15,5 kg DIBt
Z-126350 Load capacity 300 kg/m² 350 cm 32 cm 17,8 kg
Z-126400 Load capacity 200kg/m² 400 cm 32 cm 20,3 kg

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

Full-aluminium platform width 32 cm Tobler AG

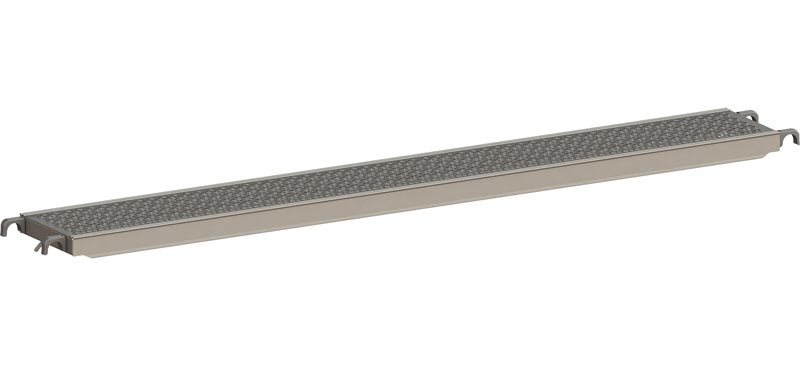

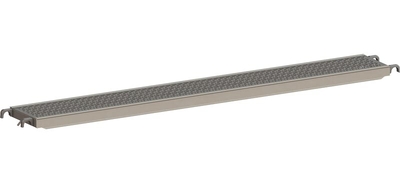

Sheet steel platform width 32 cm

• up to 600 kg / m²
• HB 25 mm, with wind lock

Item no. Designation Length Width Weight DIBt piece
Z-226070 Load capacity 600 kg/m² 70 cm 32 cm 5,5 kg DIBt
Z-226075 Load capacity 600 kg/m² 75 cm 32 cm 6,0 kg DIBt
Z-226100 Load capacity 600 kg/m² 100 cm 32 cm 6,9 kg DIBt
Z-226110 Load capacity 600 kg/m² 110 cm 32 cm 7,7 kg DIBt
Z-226125 Load capacity 600 kg/m² 125 cm 32 cm 8,1 kg DIBt
Z-226150 Load capacity 600 kg/m² 150 cm 32 cm 9,4 kg DIBt
Z-226180 Load capacity 600 kg/m² 180 cm 32 cm 10,8 kg DIBt
Z-226200 Load capacity 600 kg/m² 200 cm 32 cm 11,7 kg DIBt
Z-226225 Load capacity 450 kg/m² 225 cm 32 cm 13,0 kg DIBt
Z-226250 Load capacity 450 kg/m² 250 cm 32 cm 14,2 kg DIBt
Z-226300 Load capacity 300 kg/m² 300 cm 32 cm 16,6 kg DIBt
Z-226350 Load capacity 300 kg/m² 350 cm 32 cm 20,3 kg DIBt
Z-226400 Load capacity 200 kg/m² 400 cm 32 cm 22,9 kg DIBt

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

Sheet steel platform width 32 cm Tobler AG

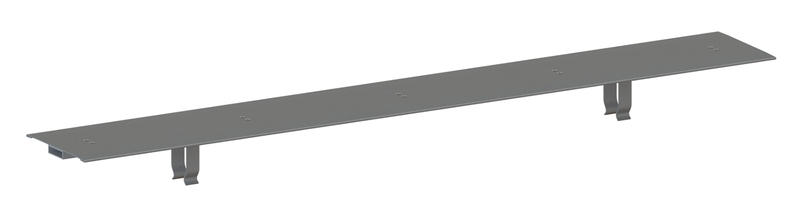

Gap cover platform

• for surface scaffolding
• made of steel

Item no. Length Width Weight piece
8-266075 75 cm 20 cm 2,7 kg
8-266100 100 cm 20 cm 4,0 kg
8-266150 150 cm 20 cm 5,9 kg
8-266200 200 cm 20 cm 7,9 kg
8-266250 250 cm 20 cm 10,0 kg
8-266300 300 cm 20 cm 12,0 kg
Gap cover platform Tobler AG

Aluminium platform

• HB 21 mm, with wind lock

Item no. Designation Length Width Weight piece
3-120075 Load capacity 600 kg/m² 75 cm 75 cm 6,9 kg
3-120100 Load capacity 600 kg/m² 100 cm 75 cm 8,8 kg
3-120125 Load capacity 600 kg/m² 125 cm 75 cm 10,7 kg
3-120150 Load capacity 600 kg/m² 150 cm 75 cm 12,6 kg
3-120175 Load capacity 600 kg/m² 175 cm 75 cm 14,4 kg
3-120200 Load capacity 600 kg/m² 200 cm 75 cm 16,3 kg
3-120225 Load capacity 450 kg/m² 225 cm 75 cm 18,2 kg
3-120250 Load capacity 450 kg/m² 250 cm 75 cm 20,0 kg
3-120300 Load capacity 300 kg/m² 300 cm 75 cm 23,8 kg
3-115075 Load capacity 600 kg/m² 75 cm 50 cm 4,8 kg
3-115100 Load capacity 600 kg/m² 100 cm 50 cm 6,1 kg
3-115125 Load capacity 600 kg/m² 125 cm 50 cm 7,4 kg
3-115150 Load capacity 600 kg/m² 150 cm 50 cm 8,6 kg
3-115175 Load capacity 600 kg/m² 175 cm 50 cm 10,0 kg
3-115200 Load capacity 600 kg/m² 200 cm 50 cm 11,2 kg
3-115225 Load capacity 450 kg/m² 225 cm 50 cm 12,5 kg
3-115250 Load capacity 450 kg/m² 250 cm 50 cm 13,7 kg
3-115300 Load capacity 300 kg/m² 300 cm 50 cm 16,3 kg
Aluminium platform Tobler AG

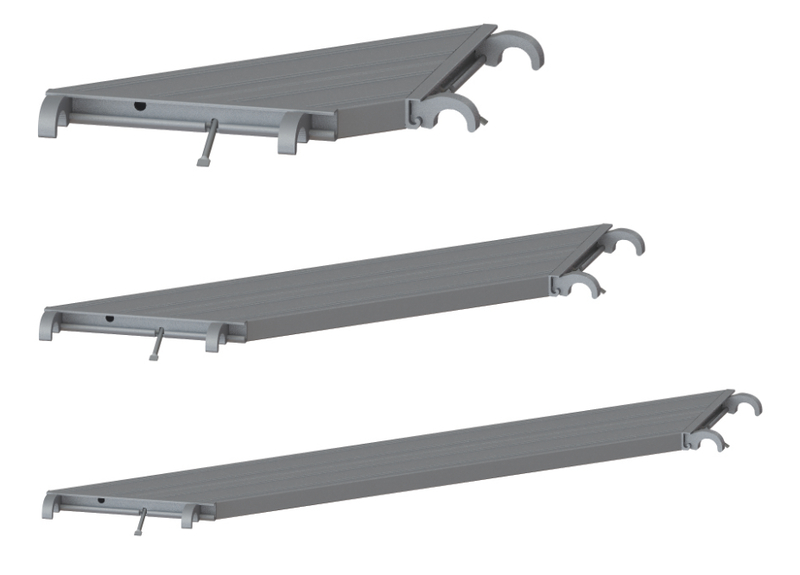

Trapezoidal platform aluminium

• for corner configurations

Item no. Length Width Weight Winkel piece
Z-106062 62 cm 30 cm 3,3 kg 45°
Z-106122 122 cm 30 cm 5,5 kg 45°
Z-106182 182 cm 30 cm 7,6 kg 45°
Trapezoidal platform aluminium Tobler AG

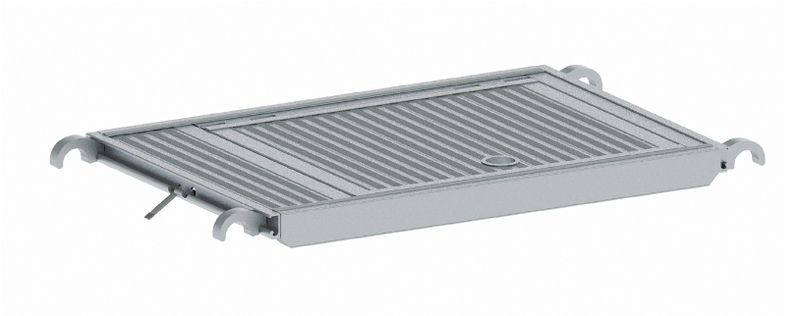

Light platform with hatch

• Made of aluminium
• with hatch

Item no. Length Width Weight piece
Z-125100 100 cm 64 cm 8,8 kg
Z-125150 150cm 64cm 18,2 kg
Z-125200 200cm 64cm 20,2 kg
Z-125250 250cm 64cm 20,4 kg
Z-125300 300cm 64cm 24,8 kg
Light platform with hatch Tobler AG

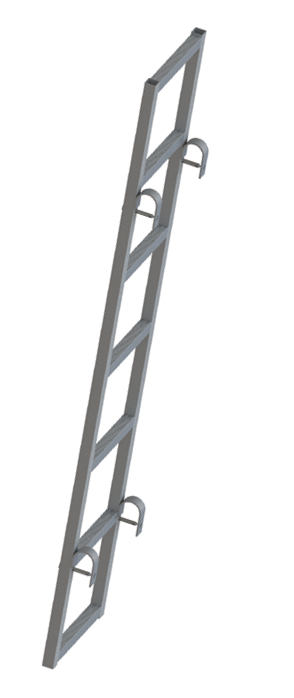

Ladder

• Made of steel
• For use in shafts

Item no. Length Weight piece
Z-114101 150 cm 3,8 kg
Ladder Tobler AG

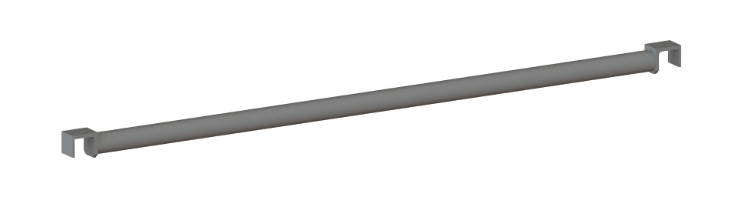

Hanging transom

• Made of steel
• Universally usable on two opposite transoms

Item no. Length Weight piece
8-218050 50 cm 2,45 kg
8-218075 75 cm 3,35 kg
8-218100 100 cm 4,2 kg
8-218125 125 cm 5,2 kg
8-218150 150 cm 6,1 kg
8-218175 175 cm 7,0 kg
8-218200 200 cm 7,9 kg
8-218225 225 cm 8,8 kg
8-218250 250 cm 9,7 kg
8-218300 300 cm 11,5 kg
Hanging transom Tobler AG

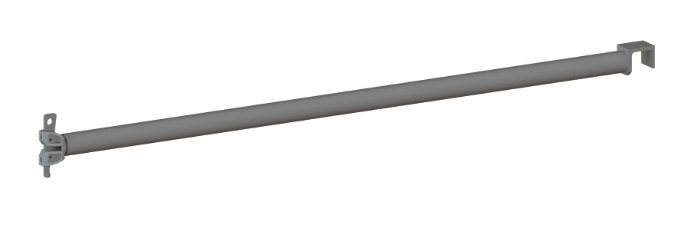

Hanging transom with wedge head

• Universally usable on one transom and opposite on a vertical standard

Item no. Length Weight piece
8-219050 50 cm 2,45 kg
8-219075 75 cm 3,35 kg
8-219100 100 cm 4,2 kg
8-219125 125 cm 5,2 kg
8-219150 150 cm 6,1 kg
8-219175 175 cm 7,0 kg
8-219200 200 cm 7,9 kg
8-219225 225 cm 8,8 kg
8-219250 250 cm 9,7 kg
8-219300 300 cm 11,5 kg
Hanging transom with wedge head Tobler AG

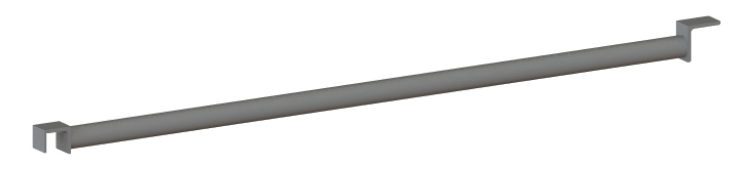

Hanging platform for platform

• Made of steel
• Can be hung on one side on the transom, opposite side as platform support
• Individual application

Item no. Length piece
8-217... Available in the desired lengths for specific projects
Hanging platform for platform Tobler AG

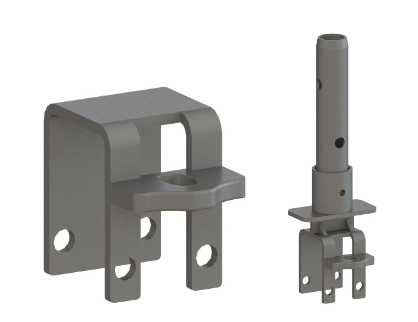

Transom holder

Item no. Designation Weight piece
3-550010 Made of steel, For individual mounting of transoms 0,5 kg
3-550015 With plug-in tenon, For individual mounting of transoms and vertical standards 1,5 kg
Transom holder Tobler AG

All prices net in CHF, excl. VAT and transport, ex warehouse. Tobler AG general terms & conditions apply.
