Standards & Transoms

Offer enquiry Standards & Transoms

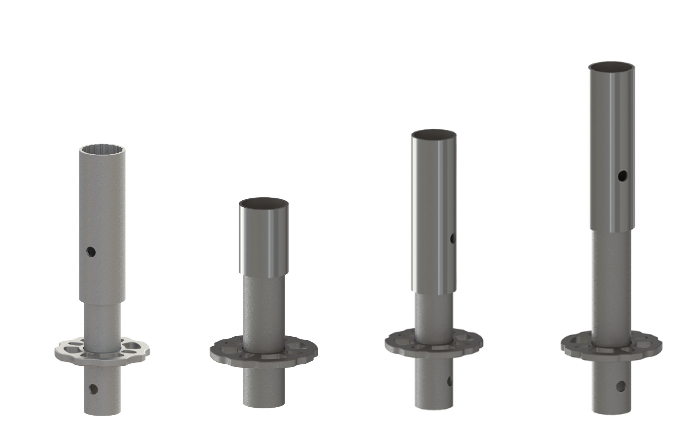

Initial piece

Item no. Designation Length Wall Thickness Weight piece
8-110035 made of aluminium 35 cm 4,0 mm 0,8 kg
8-210025 made of steel, galvanized 23,5 cm 3,0 mm 1,3 kg
8-210035 made of steel, galvanized 35 cm 3,0 mm 1,8 kg
8-210043 made of steel, galvanized 43 cm 3,0 mm 2,1 kg
Initial piece Tobler AG

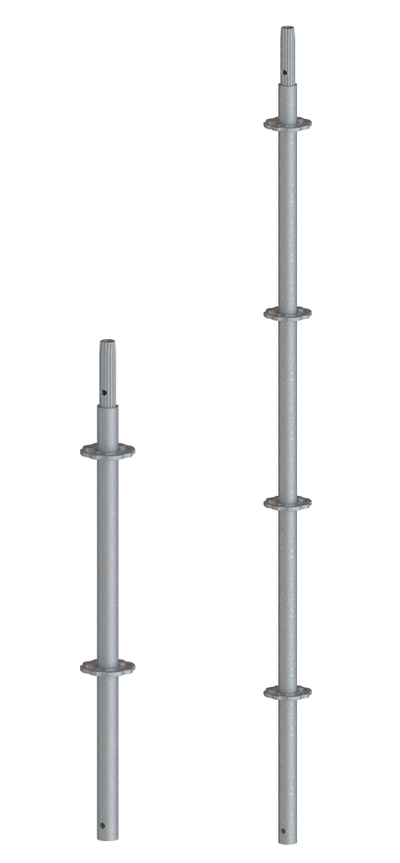

Vertical standards made of aluminium

• tube Ø 48.3 mm

Item no. Designation Length Wall Thickness Weight piece
8-110050 pivot pipe bolted 50 cm 4,0 mm 1,2 kg
8-110100 pivot pipe bolted 100 cm 4,0 mm 2,0 kg
8-110150 pivot pipe bolted 150 cm 4,0 mm 2,9 kg
8-110200 pivot pipe bolted 200 cm 4,0 mm 3.9 kg
8-110250 pivot pipe bolted 250 cm 4,0 mm 4,7 kg
8-110300 pivot pipe bolted 300 cm 4,0 mm 5,6 kg
8-110400 pivot pipe bolted 400 cm 4,0 mm 7,3 kg
8-111100 bridging post without pin 100 cm 4,0 mm 1,8 kg
Vertical standards made of aluminium Tobler AG

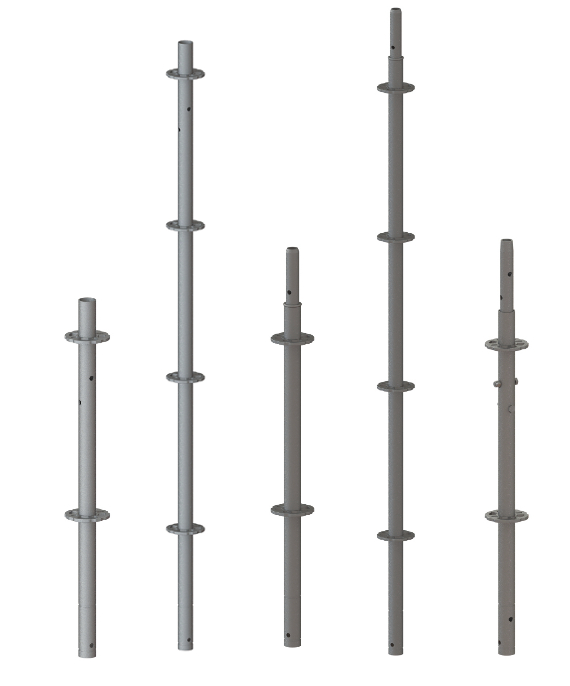

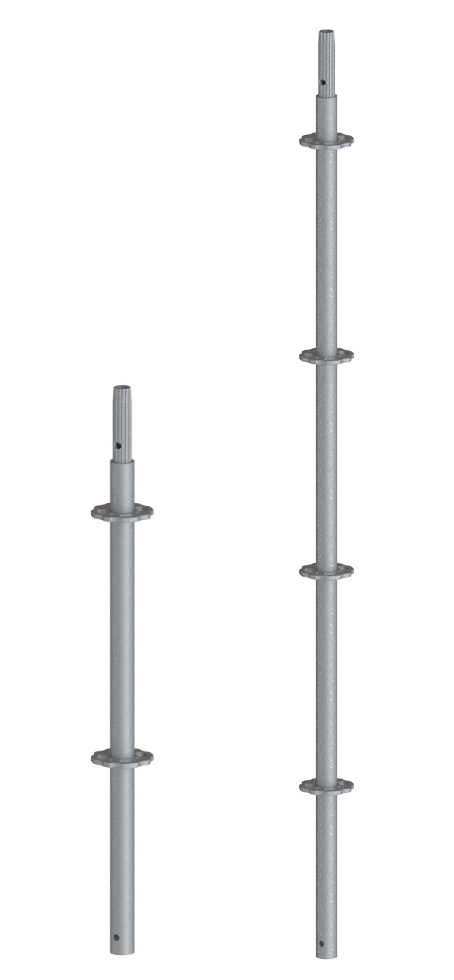

Vertical standards made of steel

• with swaged pivot pipe
• tube Ø 48.3 mm

Item no. Designation Length Wall Thickness Weight piece
8-210050 with swaged pivot pipe 50 cm 3,0 mm 2,5 kg
8-210100 with swaged pivot pipe 100 cm 3,0 mm 4,5 kg
8-210150 with swaged pivot pipe 150 cm 3,0 mm 6,6 kg
8-210200 with swaged pivot pipe 200 cm 3,0 mm 8,6 kg
8-210250 with swaged pivot pipe 250 cm 3,0 mm 10,6 kg
8-210300 with swaged pivot pipe 300 cm 3,0 mm 12,6 kg
8-210400 with swaged pivot pipe 400 cm 3,0 mm 16,7 kg
8-211050 without pivot pipe 50 cm 3,0 mm 2,0 kg
8-211100 without pivot pipe 100 cm 3,0 mm 4,0 kg
8-211150 without pivot pipe 150 cm 3,0 mm 6,1 kg
8-211200 without pivot pipe 200 cm 3,0 mm 8,0 kg
8-211250 without pivot pipe 250 cm 3,0 mm 10,1 kg
8-211300 without pivot pipe 300 cm 3,0 mm 12,1 kg
8-211400 without pivot pipe 400 cm 3,0 mm 16,2 kg
8-213050 screwed with pivot pipe 50 cm 3,0 mm 3,7 kg
8-213100 screwed with pivot pipe 100 cm 3,0 mm 5,5 kg
8-213150 screwed with pivot pipe 150 cm 3,0 mm 7,5 kg
8-213200 screwed with pivot pipe 200 cm 3,0 mm 9,5 kg
8-213250 screwed with pivot pipe 250 cm 3,0 mm 11,6 kg
8-213300 screwed with pivot pipe 300 cm 3,0 mm 13,6 kg
8-213400 screwed with pivot pipe 400 cm 3,0 mm 17,6 kg
Vertical standards made of steel Tobler AG

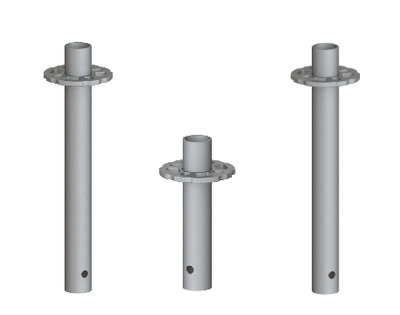

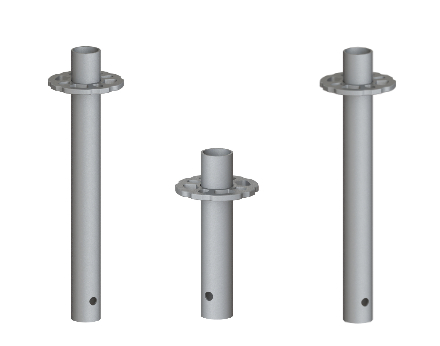

Surface scaffolding standards

• tube Ø 48.3 mm

Item no. Designation Length Wall Thickness Weight piece
8-112045 made of aluminium 45 cm 4,0 mm 1,2 kg
8-212025 made of steel 25 cm 3,0 mm 1,2 kg
8-212045 made of steel 45 cm 3,0 mm 1,9 kg
Surface scaffolding standards Tobler AG

Steel tube connector for ­Vertical bridging standards

• made of steel
• tube Ø 38 mm

Item no. Designation Length Weight piece
8-213005 25 cm 1,3 kg
8-214052 with two screws and nuts 100 – 400 cm 1,3 kg
Steel tube connector for ­Vertical bridging standards Tobler AG

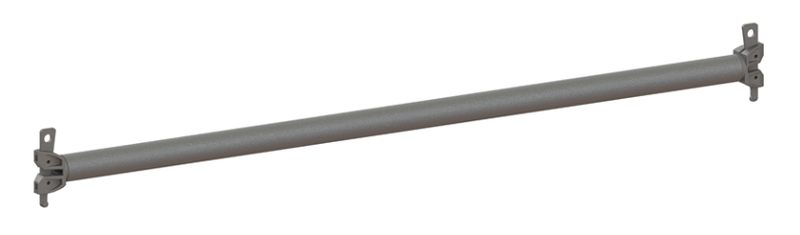

Transom aluminium

• tube Ø 48.3 mm

Item no. Length Weight piece
8-120025 25 cm 1,4 kg
8-120040 40 cm 1,6 kg
8-120050 50 cm 1,8 kg
8-120075 75 cm 2,1 kg
8-120100 100 cm 2,5 kg
8-120110 110 cm 2,6 kg
8-120125 125 cm 2,8 kg
8-120140 140 cm 3,0 kg
8-120150 150 cm 3,2 kg
8-120200 200 cm 3,9 kg
8-120225 225 cm 4,3 kg
8-120250 250 cm 4,6 kg
8-120300 300 cm 5,3 kg
Transom aluminium Tobler AG

Transom aluminium made of solid aluminium with aluminium head

Item no. Length Weight piece
8-120050.1 50 cm 1,0 kg
8-120075.1 75 cm 1,4 kg
8-120100.1 100 cm 1,7 kg
8-120125.1 125 cm 2,1 kg
8-120150.1 150 cm 2,5 kg
8-120200.1 200 cm 3,2 kg
8-120225.1 225 cm 3,5 kg
8-120250.1 250 cm 3,9 kg
8-120300.1 300 cm 4,5 kg
Transom aluminium made of solid aluminium with aluminium head Tobler AG

Heavy duty transom

• made of aluminium
• tube Ø 48.3 mm

Item no. Length Weight piece
8-123110 110 cm 4,5 kg
8-123150 150 cm 6,5 kg
8-123200 200 cm 8,0 kg
8-123250 250 cm 9,4 kg
8-123300 300 cm 11,0 kg
8-123350 350 cm 12,5 kg
Heavy duty transom Tobler AG

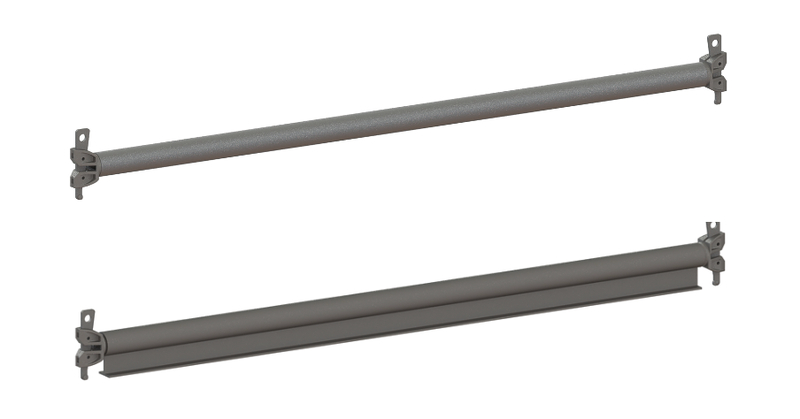

Transom steel

• tube Ø 48.3 mm

Item no. Designation Length Weight piece
8-220025 galvanized 25 cm  1,5 kg
8-220040 galvanized 40 cm  2,0 kg
8-220050 galvanized 50 cm  2,3 kg
8-220075 galvanized 75 cm  3,0 kg
8-220079 galvanized 79 cm   3,1 kg
8-220100 galvanized 100 cm  3,7 kg
8-220110 galvanized 110 cm  4,0 kg
8-220125 galvanized 125 cm  4,5 kg
8-220150 galvanized 150 cm  5,1 kg
8-220200 galvanized 200 cm  6,5 kg
8-220225 galvanized 225 cm  7,3 kg
8-220250 galvanized 250 cm 8,1 kg
8-220300 galvanized 300 cm  9,5 kg
8-220350 galvanized 350 cm 11,0 kg
8-220400 galvanized 400 cm  12,3 kg
8-222100 reinforced steel 100 cm 5,6 kg
8-122110 reinforced steel 110 cm 6,1 kg
8-122125 reinforced steel 125 cm 6,9 kg
8-222150 reinforced steel 150 cm 8,3 kg
Transom steel Tobler AG

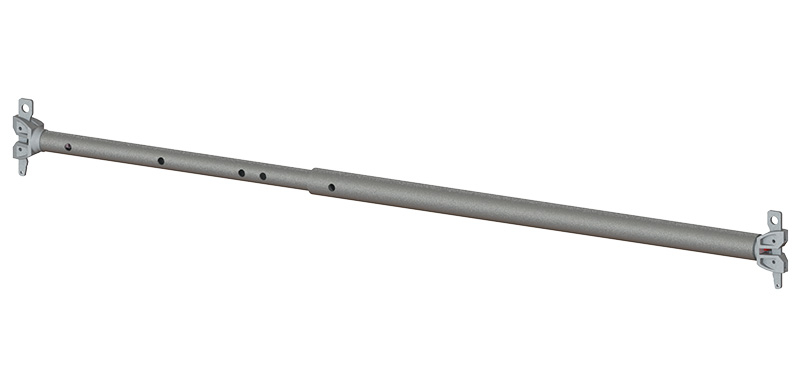

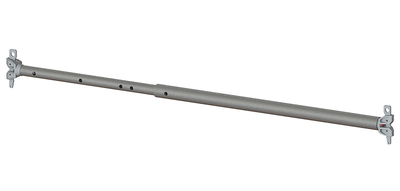

Horizontal-diagonal transom

• made of steel
• adjustable

Item no. Length Weight piece
8-238075 75 – 125 cm 6,5 kg
8-238150 125 – 250 cm 10,3 kg
8-238250 200 – 300 cm 16,2 kg
Horizontal-diagonal transom Tobler AG
