Offer enquiry Weather protection

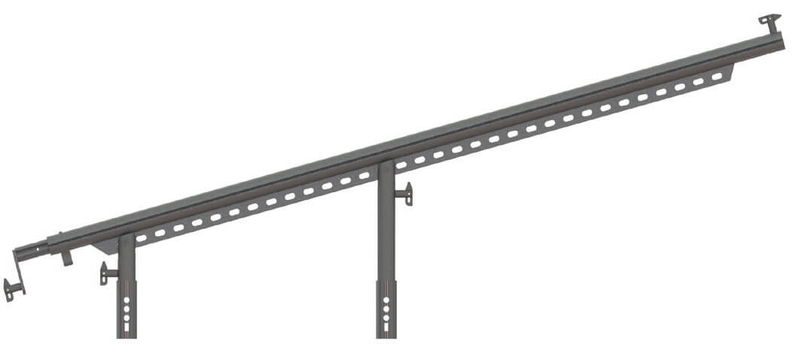

Walkway canopy

• adjustable
• water drainage to the inside or outside possible
• can be mounted on any façade scaffolding, width depending on system
• the only storm-proof catwalk roof

Article no.	Designation	Length	Weight	piece
N-3-586225	Set articles for MATO 3*	210 cm	4,4 kg

* Set article consisting of upright pipe (large and small). aluminium rail and clip.

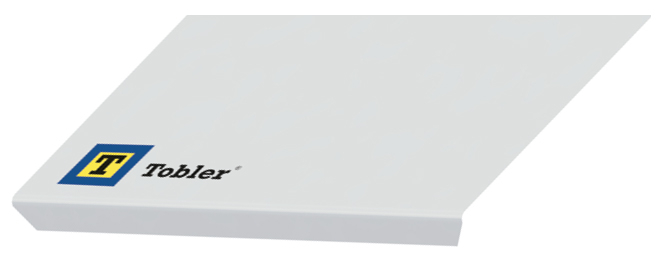

Tarpaulin for walkway canopy

• with Keder
• color marking for even faster assembly
• printing of your company logo is possible

Article no.	Designation	Length	Width	Weight	piece
N-587070	black	225 cm	70 cm	1,1 kg
N-587100	green	225 cm	100 cm	1,3 kg
N-587125	dark blue	225 cm	150 cm	1,6 kg
N-587150	red	225 cm	150 cm	1,9 kg
N-587200	light blue	225 cm	200 cm	2,8 kg
N-587250	yellow	225 cm	250 cm	3,3 kg
N-587300	violet	225 cm	300 cm	3,8 kg

Other widths on request.

Tarpaulin tensioning element

• aluminium set: aluminium sheet clamping element, incl. bolts Ø 12 × 60 mm and spring cotter pin

Article no.	Length	Weight	piece
N-588040	30 cm	1,4 kg

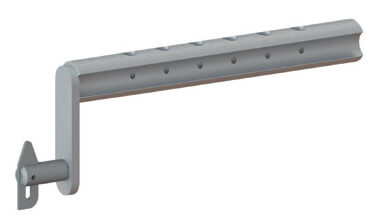

Clip for walkway canopy

Article no.	Weight	piece
N-850001	0,1 kg

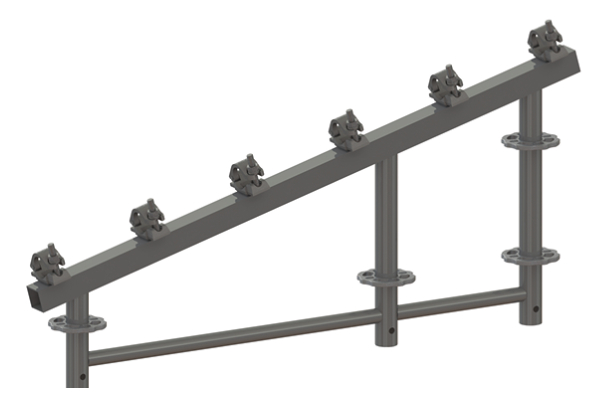

Roof support frame

Article no.	Weight	piece
N-8-570075	10,6 kg

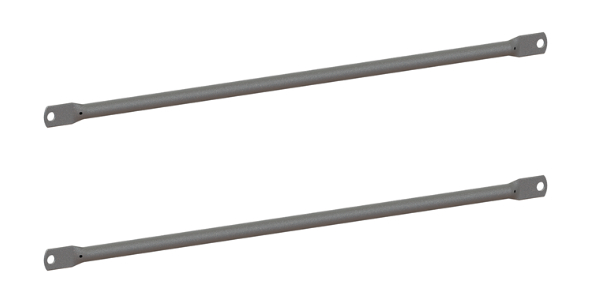

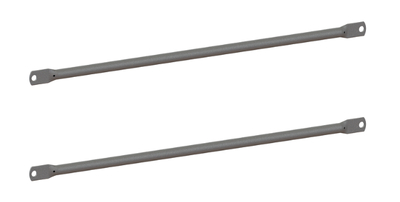

Horizontal brace

Article no.	Designation	Length	Weight	DIBt	piece
1-231070	made of steel	70 cm	1,1 kg
1-231100	made of steel	100 cm	1,5 kg
1-231150	made of steel	150 cm	2,2 kg
1-231200	made of steel	200 cm	3,0 kg
1-231250	made of steel	250 cm	3,8 kg
1-231300	made of steel	300 cm	4,5 kg
1-131070	made of aluminium	70 cm	0,5 kg
1-131100	made of aluminium	100 cm	0,7 kg
1-131125	made of aluminium	125 cm	0,9 kg
1-131150	made of aluminium	150 cm	1,1 kg
1-131180	made of aluminium	180 cm	1,4 kg
1-131200	made of aluminium	200 cm	1,5 kg
1-131225	made of aluminium	225 cm	1,7 kg
1-131250	made of aluminium	250 cm	1,9 kg
1-131300	made of aluminium	300 cm	2,2 kg

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

All prices net in CHF, excl. VAT and transport, ex warehouse. Tobler AG general terms & conditions apply.
