Offer enquiry Brackets

Article no.	Width	Weight	DIBt	piece

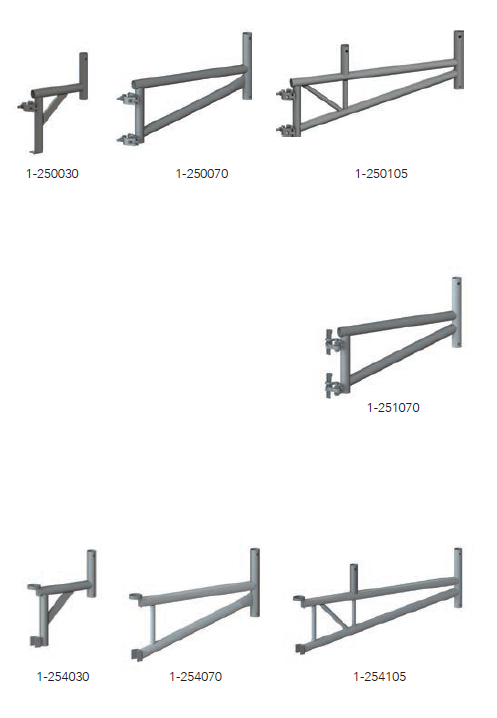

1-250020	20 cm	3,4 kg
1-250030	30 cm	3,8 kg

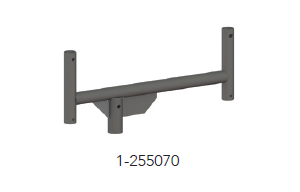

1-250070	70 cm	8,0 kg
1-250075	75 cm	8,2 kg
1-250105	105 cm	10,4 kg
• with wedge coupling
1-251070	70 cm	5,9 kg
1-251075	75 cm	7,4 kg
• with ring • fast and easy assembly
1-254030	30 cm	3,5 kg
1-254070	70 cm	6,3 kg
1-254105	105 cm	8,8 kg

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

Application example

Article no.	Length	Width	Weight	DIBt	piece
1-160015	15 cm	15 cm	3,5 kg
1-160020	20 cm	20 cm	3,9 kg

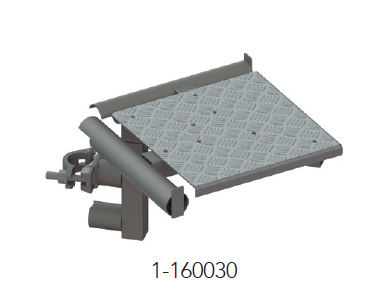

1-160030	30 cm	30 cm	6,4 kg
1-160070	70 cm	70 cm	12,8 kg

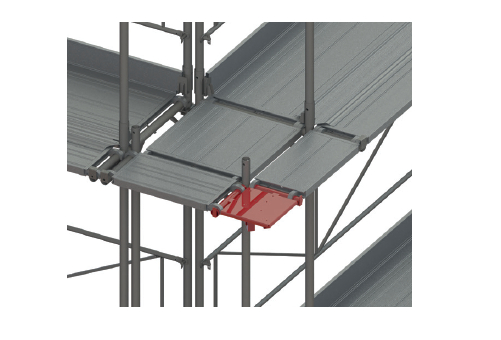

Application example

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

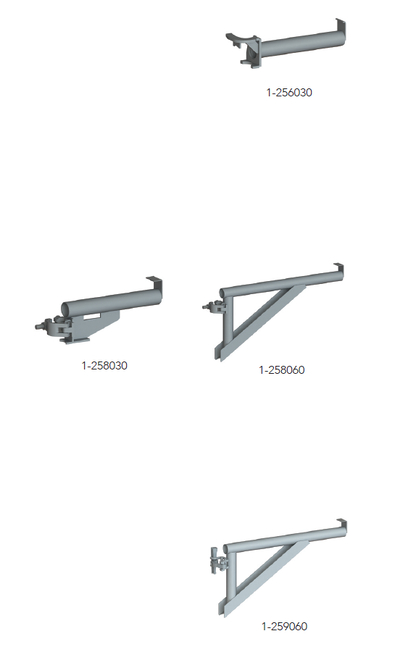

Article no.	Length	Weight	DIBt	piece
1-256015	15 cm	1,1 kg
1-256020	20,5 cm	1,3 kg

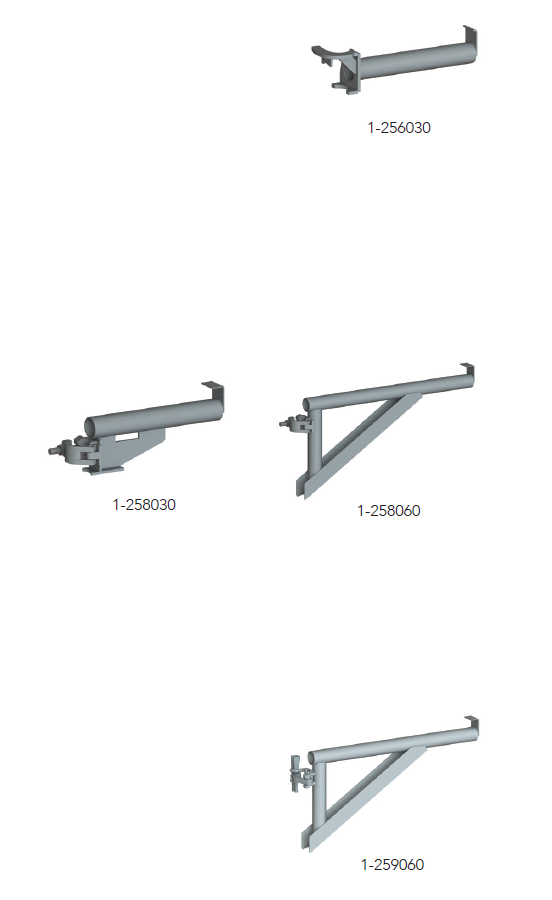

1-256030	30 cm	1,7 kg
1-256030.1	32 cm	1,7 kg
• with screw coupling • adjustable
1-258015	15,5 cm	1,9 kg
1-258020	20,5 cm	2,0 kg
1-258030	30 cm	2,5 kg
1-258045	45 cm	4,1 kg
1-258050	50 cm	4,2 kg
1-258060	60 cm	5,0 kg
1-258090*	90 cm	7,6 kg
• with wedge coupling
1-259015	15,5 cm	1,9 kg
1-259030	30 cm	2,5 kg
1-259060	60 cm	4,8 kg

* Can only be used with frames with 48,3 × 2,7 mm steel tube.

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

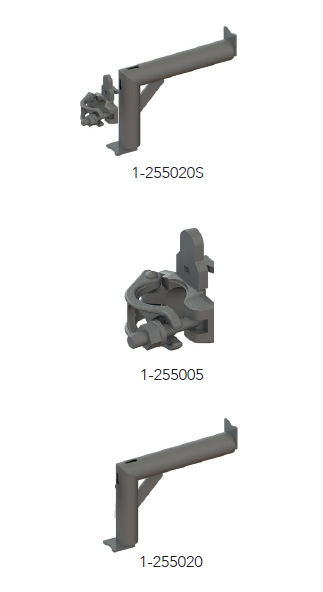

Article no.	Length	Weight	DIBt	piece
1-255010S	15 / 20 cm	1,9 kg
1-255015S	15 / 30 cm	2,3 kg
1-255020S	20 / 30 cm	2,4 kg
• Coupling for Multiflex bracket
1-255005	15 / 20 cm	0,8 kg
• Combination Multiflex bracket for hooking on
1-255010	15 / 20 cm	1,1 kg
1-255015	15 / 30 cm	1,5 kg
1-255020	20 / 30 cm	1,5 kg

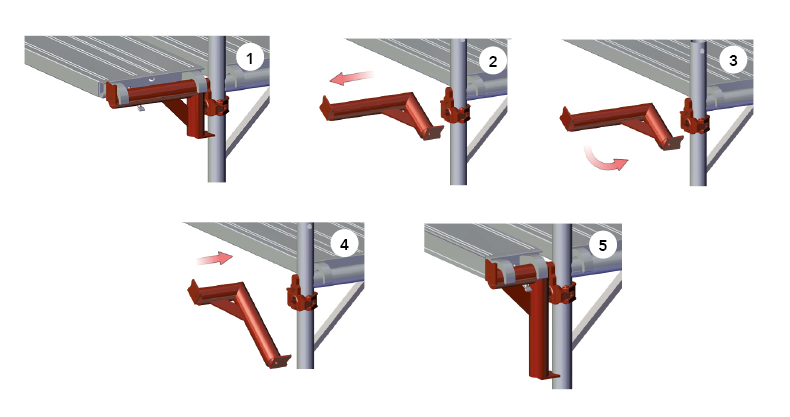

Application example

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

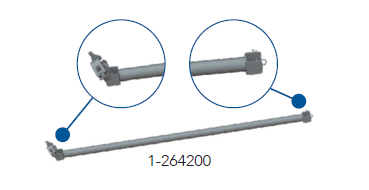

Article no.	Length	Wall Thickness	Weight	DIBt	piece
1-264200	200 cm	3,25 mm	7,2 kg

Application example

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

Article no.	Length	Height	Weight	DIBt	piece

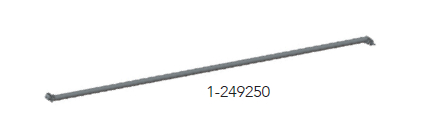

1-249250	250 cm	200 cm	8,6 kg
1-249300	300 cm	200 cm	9,7 kg

Application example

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

Article no.	Length	Width	Weight	DIBt	piece

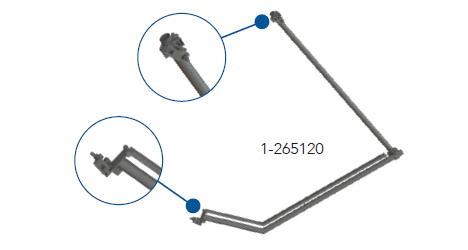

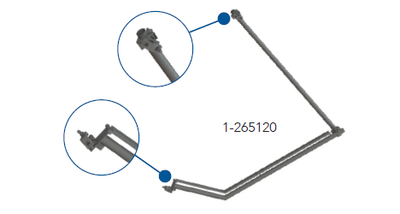

1-265120	200 cm	120 cm	17,7 kg
1-265180	200 cm	180 cm	22,7 kg

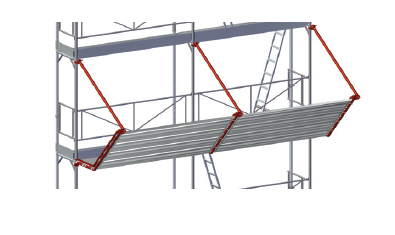

Application example

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

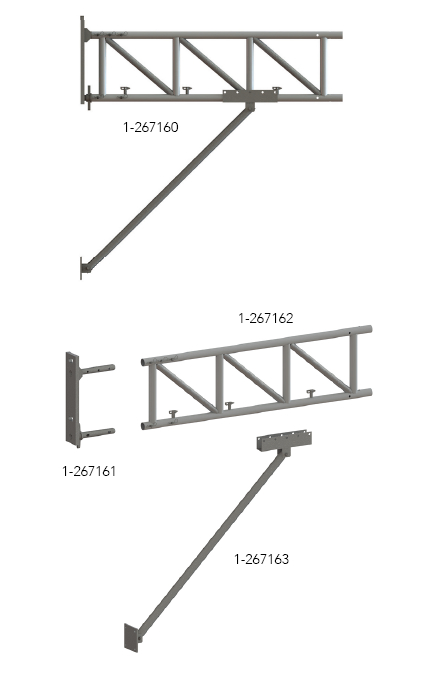

Article no.	Length	Height	Weight	DIBt	piece
1-267160	160 cm	40 cm	36,0 kg
• Wall retainer for wall bracket • Made of steel
1-267161			15,8 kg
• Lattice beam for wall bracket • With MATO 1 railing bracket • Made of aluminium
1-267162			7,8 kg
• Diagonal brace for wall bracket for wall bracket for higher load capacity • Including pins and spring cotters • Made of steel
1-267163			10,6 kg

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

Article no.	Diameter	DIBt	piece
Z-834001	12 × 60 mm
Z-834002	12 × 80 mm

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

Article no.	Diameter	DIBt	piece
Z-850001	3 mm
