Offer enquiry Decks

Article no.	Length	Width	Weight	DIBt	piece
1-265070	70 cm	12,5 cm	2,3 kg
1-265100	100 cm	12,5 cm	3,5 kg

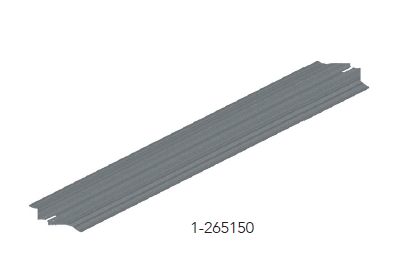

1-265150	150 cm	12,5 cm	5,5 kg
1-265200	200 cm	12,5 cm	7,5 kg
1-265250	250 cm	12,5 cm	9,5 kg
1-265300	300 cm	12,5 cm	11,5 kg

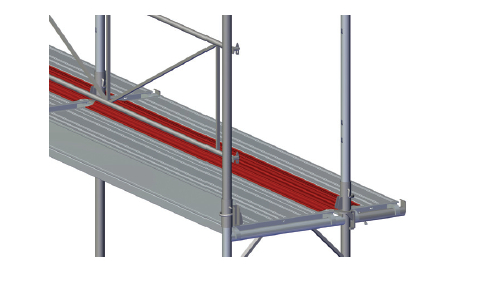

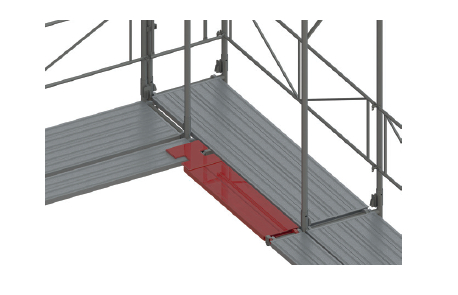

Application example

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

Article no.	Length	Width	Weight	DIBt	piece
Z-123250	250 cm	20,0 cm	6,2 kg

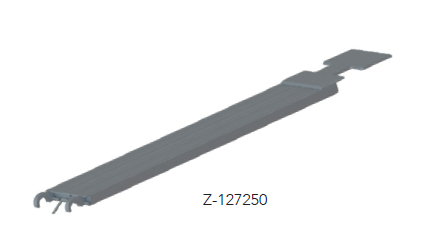

Z-127250	250 cm	32,0 cm	8,1 kg

Application example

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

Article no.	Length	Width	Weight	Load capacity	DIBt	piece
Z-120070	70 cm	64 cm	5,7 kg	600 kg / m²
Z-120075	75 cm	64 cm	6,0 kg	600 kg / m²
Z-120100	100 cm	64 cm	7,5 kg	600 kg / m²
Z-120125	125 cm	64 cm	8,9 kg	600 kg / m²
Z-120150	150 cm	64 cm	10,4 kg	600 kg / m²
Z-120180	180 cm	64 cm	12,1 kg	600 kg / m²
Z-120200	200 cm	64 cm	13,4 kg	600 kg / m²
Z-120225	225 cm	64 cm	14,8 kg	450 kg / m²

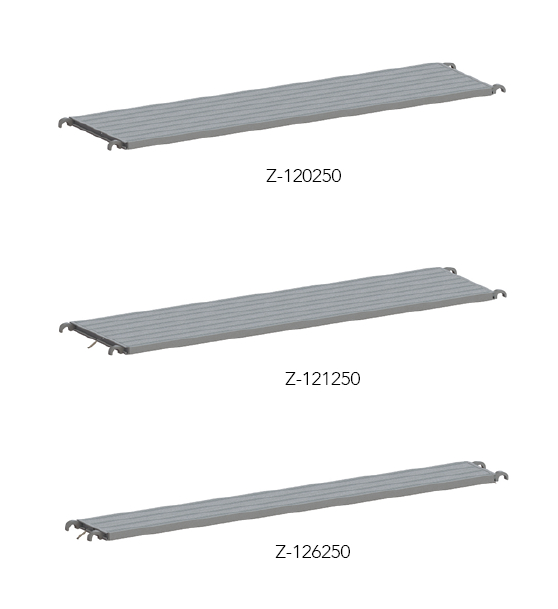

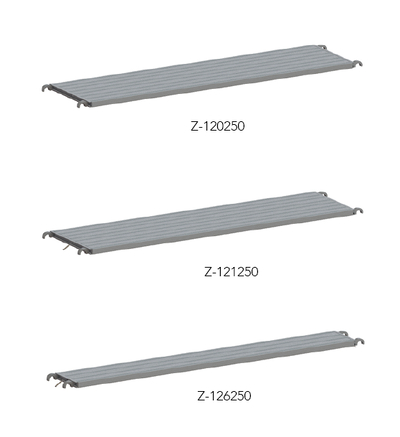

Z-120250	250 cm	64 cm	16,3 kg	450 kg / m²
Z-120257	257 cm	64 cm	16,8 kg	450 kg / m²
Z-120300	300 cm	64 cm	19,2 kg	200 kg / m²
• Hook widths 25 mm, with wind protection
Z-121070	70 cm	64 cm	5,7 kg	600 kg / m²
Z-121075	75 cm	64 cm	6,0 kg	600 kg / m²
Z-121100	100 cm	64 cm	7,5 kg	600 kg / m²
Z-121125	125 cm	64 cm	8,9 kg	600 kg / m²
Z-121150	150 cm	64 cm	10,4 kg	600 kg / m²
Z-121180	180 cm	64 cm	12,1 kg	600 kg / m²
Z-121200	200 cm	64 cm	13,4 kg	600 kg / m²
Z-121225	225 cm	64 cm	14,8 kg	450 kg / m²
Z-121250	250 cm	64 cm	16,3 kg	450 kg / m²
Z-121257	257 cm	64 cm	16,8 kg	450 kg / m²
Z-121300	300 cm	64 cm	19,2 kg	200 kg / m²
• Hook widths 25 mm, with wind protection
Z-126070	70 cm	32 cm	3,6 kg	600 kg / m²
Z-126075	75 cm	32 cm	3,8 kg	600 kg / m²
Z-126100	100 cm	32 cm	4,6 kg	600 kg / m²
Z-126125	125 cm	32 cm	5,6 kg	600 kg / m²
Z-126150	150 cm	32 cm	6,4 kg	600 kg / m²
Z-126180	180 cm	32 cm	7,6 kg	600 kg / m²
Z-126200	200 cm	32 cm	8,2 kg	600 kg / m²
Z-126225	225 cm	32 cm	9,1 kg	450 kg / m²
Z-126250	250 cm	32 cm	10,0 kg	450 kg / m²
Z-126300	300 cm	32 cm	15,5 kg	450 kg / m²
Z-126350	350 cm	32 cm	17,8 kg	300 kg / m²
Z-126400	400 cm	32 cm	20,3 kg	200 kg / m²

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

Article no.	Length	Width	Weight	Load capacity	DIBt	piece
Z-124150	150 cm	64 cm	20,3 kg	300 kg / m²
Z-124200	200 cm	64 cm	23,3 kg	300 kg / m²

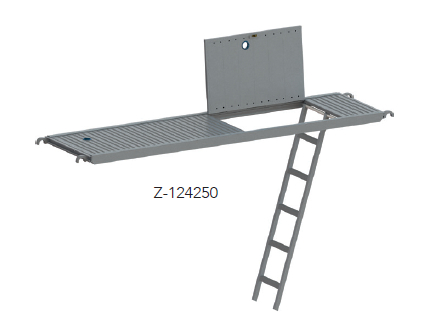

Z-124250	250 cm	64 cm	24,8 kg	200 kg / m²
Z-124300	300 cm	64 cm	28,7 kg	200 kg / m²

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.
