Scaffolding frame

MATO 1 scaffolding frames are available in widths of 70 cm and 100 cm. Depending on the height and maximum load, steel frames with a wall thickness of 2.7 mm or aluminium frames with a thickness of 4 mm are used. For particularly heavy loads, steel frames with a wall thickness of 3.25 mm are available, which are fully compatible with the standard lightweight frame.

With the steel version of the MATO 1 scaffolding system, construction heights of more than 80 metres can be achieved. Even with the feather-light aluminium scaffolding, you can achieve a construction height of at least 40 metres - with maximum safety for your employees. All system components are compatible with each other.

Patented technology
With toe board holder and integrated wind protection for the decking boards
Approval number DIBt Z-8.1-937
Tube Ø 48.3 mm
85 pieces per bar

Offer enquiry Scaffolding frame

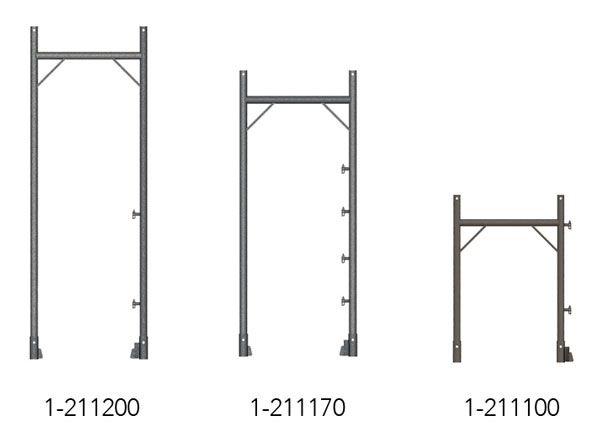

Scaffolding frame made of galvanised steel tube 70 cm

• Patented technology with toe board retainer and integrated wind protection for the decking boards
• 85 pieces per rack
• Made of steel
• Construction height safe up to 140 m

Article no.	Width	Height	Wall Thickness	Weight
1-211050	70 cm	50 cm	2,7 mm	6,0 kg
1-211070	70 cm	70 cm	2,7 mm	7,1 kg
1-211100	70 cm	100 cm	2,7 mm	9,1 kg
1-211120	70 cm	120 cm	2,7 mm	10,2 kg
1-211170	70 cm	170 cm	2,7 mm	13,4 kg
1-211200	70 cm	200 cm	2,7 mm	14,5 kg
1-212070	70 cm	70 cm	3,25 mm	8,5 kg
1-212100	70 cm	100 cm	3,25 mm	10,6 kg
1-212200	70 cm	200 cm	3,25 mm	18,4 kg

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

Scaffolding frame made of galvanised steel tube 70 cm Tobler AG

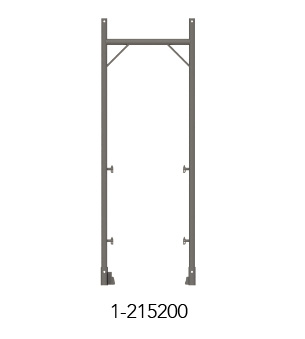

Scaffolding frame steel 70 cm

• Construction height 140 m

Article no.	Width	Height	Wall Thickness	piece
1-215200	70 cm	200 cm	2,7 mm

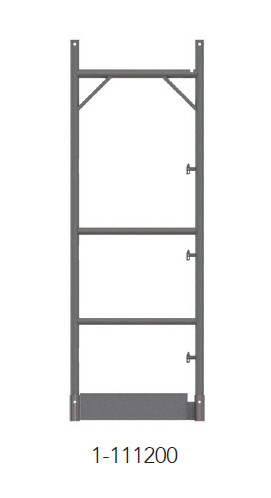

Scaffolding frame aluminium 70 cm

• Construction height 80 m

Article no.	Width	Height	Wall Thickness	Weight
1-111070	70 cm	70 cm	4,0 mm	3,9 kg
1-111100	70 cm	100 cm	4,0 mm	5,0 kg
1-111200	70 cm	200 cm	4,0 mm	7,9 kg

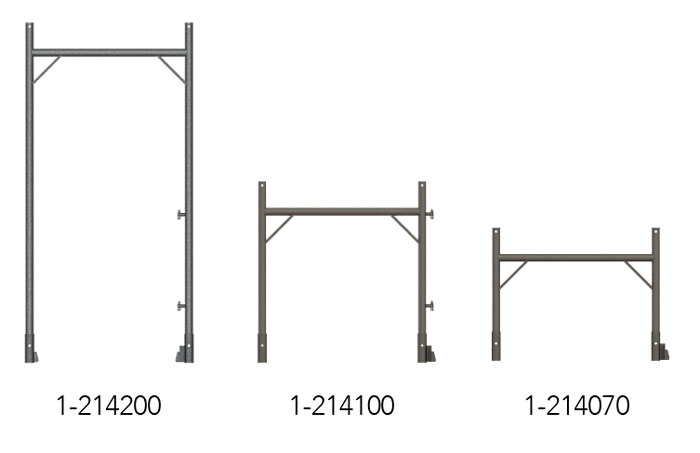

Scaffolding frame steel 100 cm

Article no.	Width	Height	Wall Thickness	Weight
1-214050	100 cm	50 cm	3,25 mm	8,8 kg
1-214070	100 cm	70 cm	3,25 mm	10,2 kg
1-214100	100 cm	100 cm	3,25 mm	12,5 kg
1-214200	100 cm	200 cm	3,25 mm	19,4 kg

Steel and aluminium frames can always be combined according to the Instructions for Assembly and Use (IAU).

Scaffolding frame steel 100 cm Tobler AG

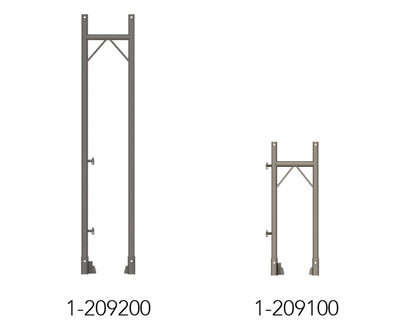

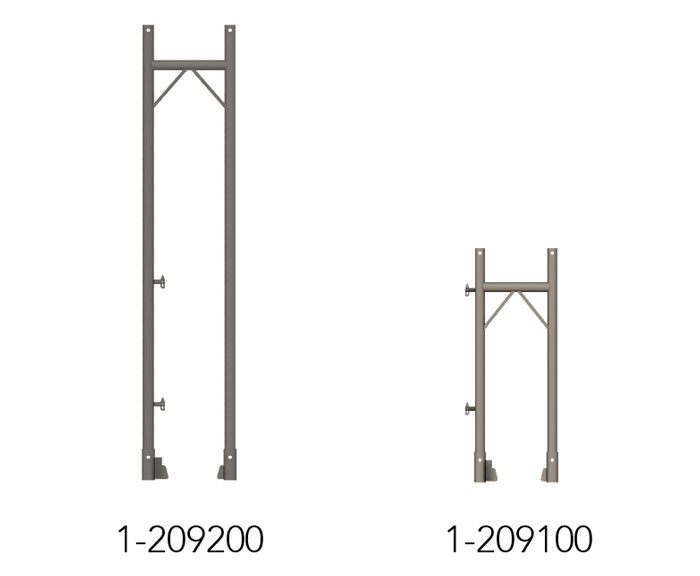

Scaffolding frame steel 35 cm

Article no.	Width	Height	Weight	piece
1-209100	35 cm	100 cm	8,4 kg
1-209200	35 cm	200 cm	14,1 kg

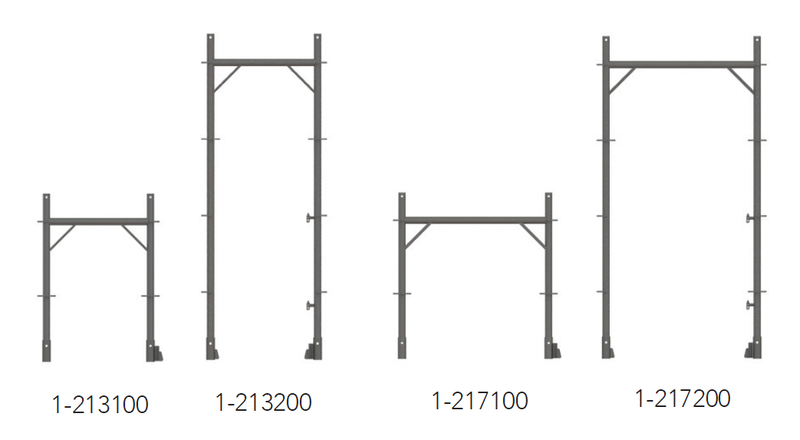

Scaffolding frame steel 70 / 100 cm

• With perforated discs and railing brackets
• Compatible with MATO 8 and MATO 1 scaffolding systems

Article no.	Width	Height	Weight
1-213100	70 cm	100 cm	10,1 kg
1-213200	70 cm	200 cm	17,2 kg
1-217100	100 cm	100 cm	13,7 kg
1-217200	100 cm	200 cm	22,0 kg

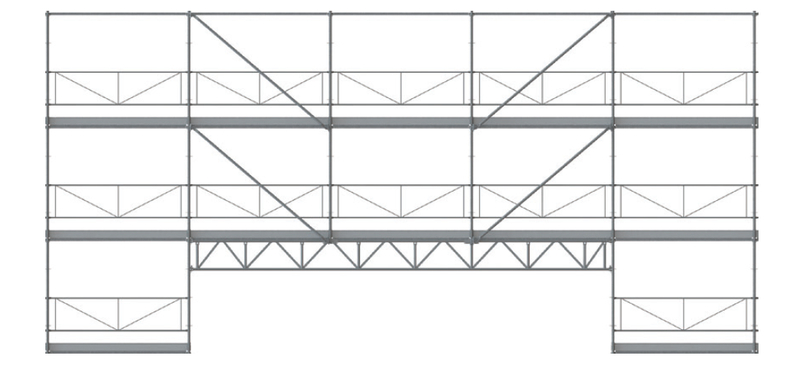

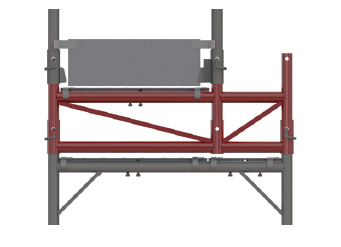

Application example

Scaffolding frame steel 70 / 100 cm Tobler AG

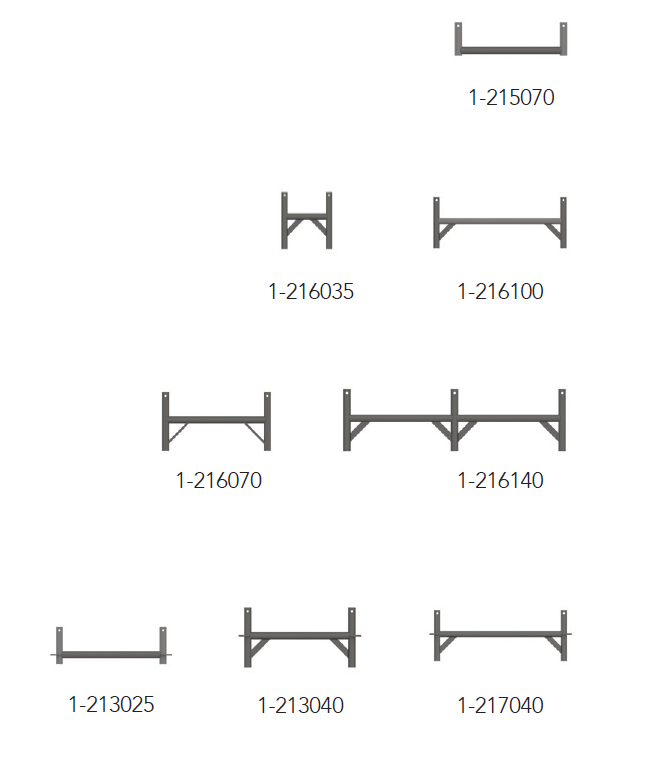

Base frame

• Made of steel

Article no.	Width	Height	Weight
1-215070	70 cm	22 cm	3,7 kg
1-216035	35 cm	40 cm	4,8 kg
1-216070	70 cm	40cm	5,5 kg
1-216100	100 cm	40cm	6,3 kg
1-216140	140 cm	40 cm	9,4 kg

• Base frame with perforated discs • Compatible with MATO 8 and MATO 1 scaffolding systems
1-213025	70 cm	25 cm	4,4 kg
1-213040	70 cm	40 cm	6,0 kg
1-217040	100 cm	40 cm	7,8 kg
