Offer enquiry Brackets

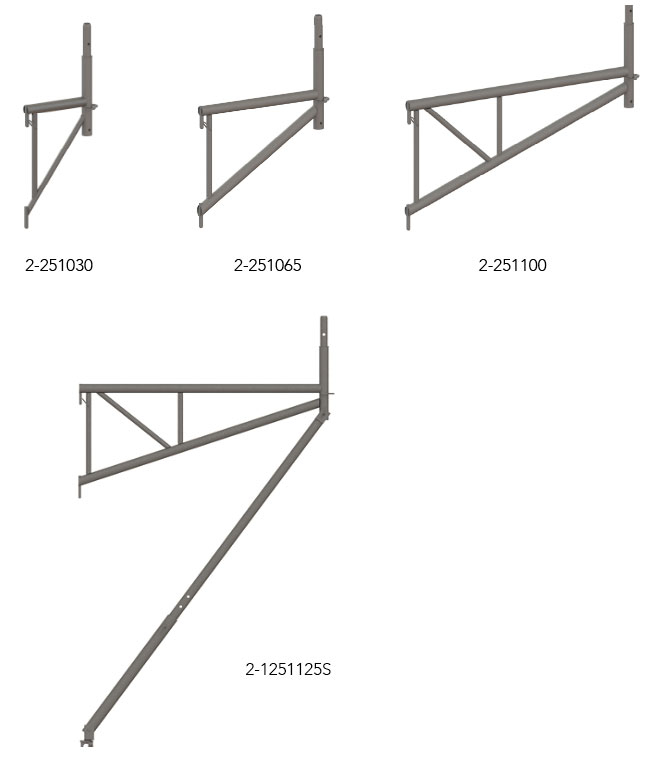

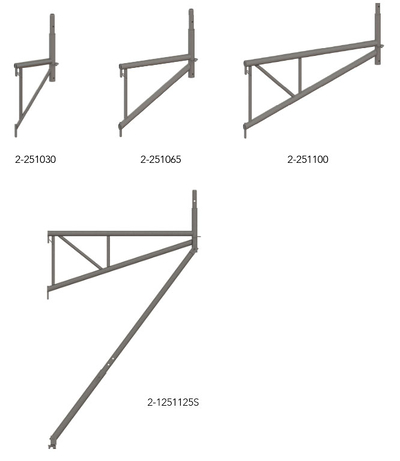

Article no.	Designation	Length	Weight	DIBt	piece
2-251020	made of steel	150 cm	4.8 kg
2-251030	made of steel	200 cm	5.2 kg
2-251065	made of steel	250 cm	6.4 kg
2-251100	made of steel	300 cm	9.1 kg
2-251125	made of steel	350 cm	12.1 kg
2-151065	made of aluminum	65 cm	3.5 kg
2-251125S	SET items (three-part): Outside bracket, wall retainer, and bracket brace	125 cm	21.6 kg

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

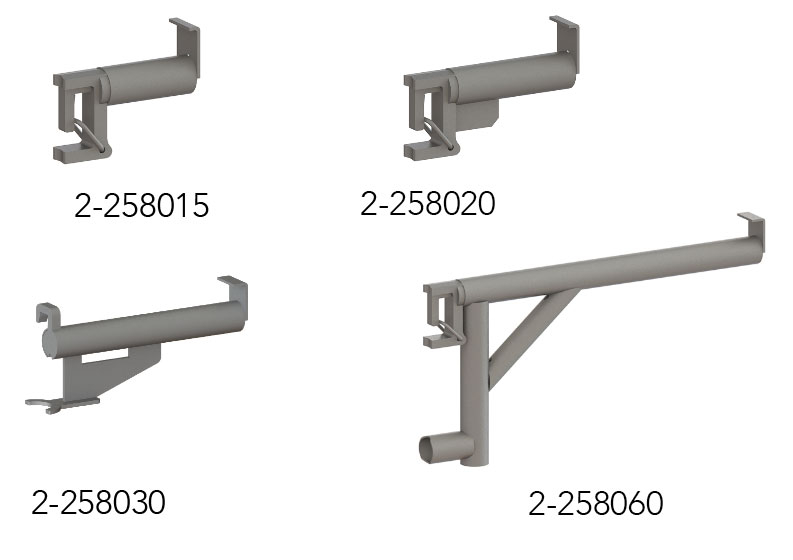

Article no.	Length	Weight	DIBt	piece
2-258015	15.0 cm	1.5 kg
2-258020	20.5 cm	1.7 kg
2-258030	30.0 cm	1.9 kg
2-259030	30.0 cm	1.9 kg
2-258060	60.0 cm	4.5 kg

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

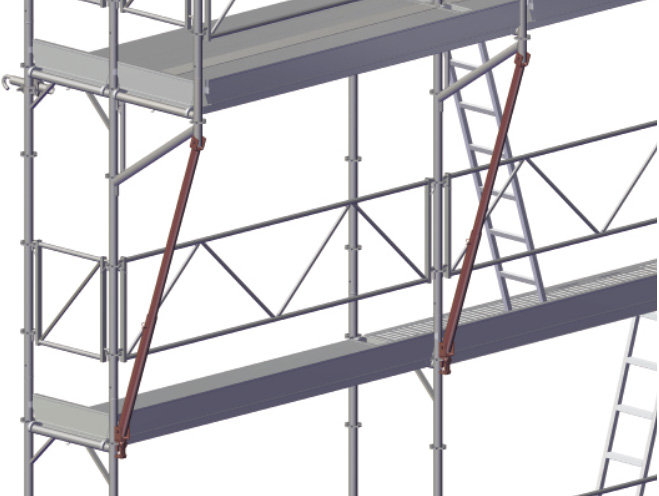

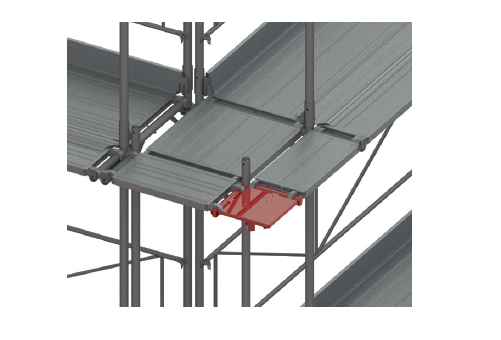

Application example

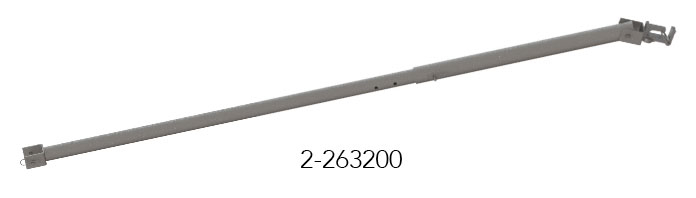

Article no.	Wall Thickness	Weight	Size	DIBt	piece
2-263200	3.25 mm	10.5 kg	200 x 130 cm

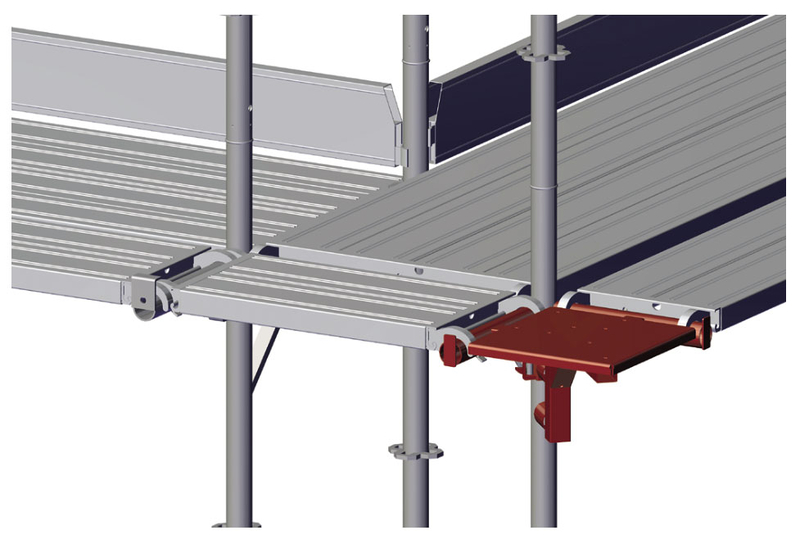

Application examples

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

Article no.	Length	Width	Weight	DIBt	piece
2-265120	200 cm	120 cm	15.8 kg
2-265180	200 cm	180 cm	18.5 kg

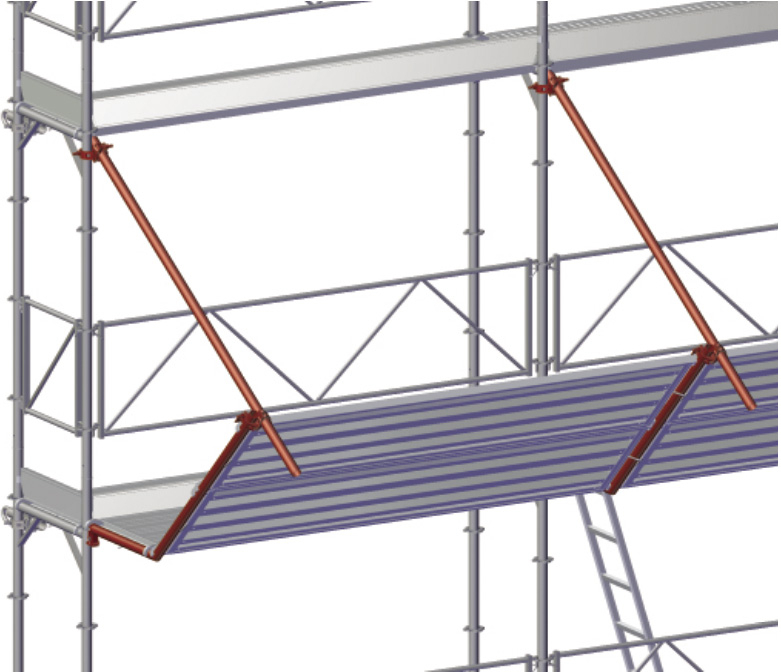

Application examples

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

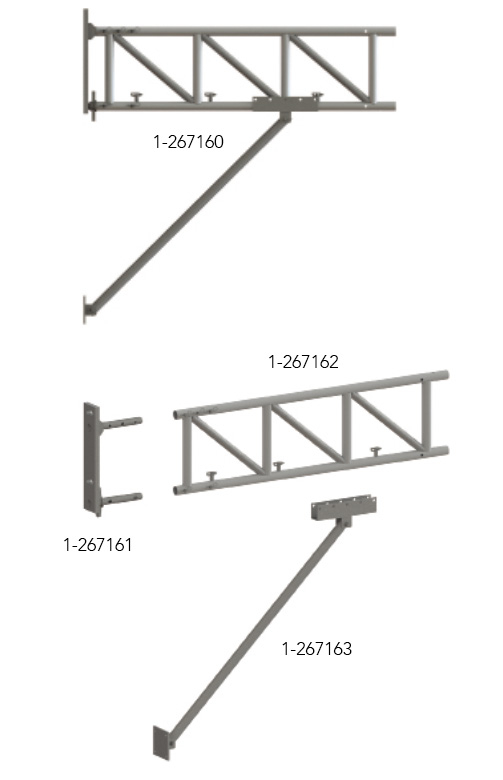

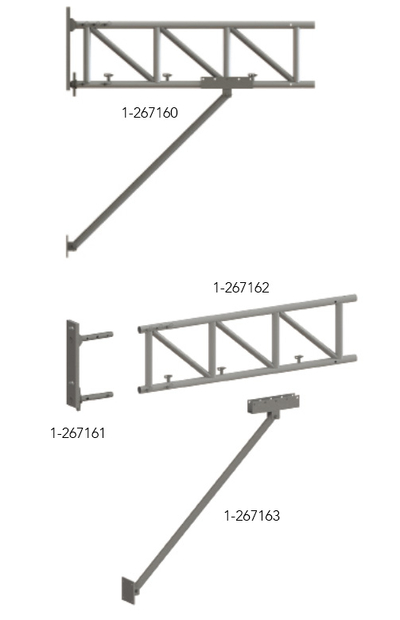

Article no.	Designation	Length	Height	Weight	DIBt	piece
1-267160	Three parts consisting of wall retainer, aluminum lattice girder, and inclined support (set items)	160 cm	40 cm	24.0 kg
1-267161	Wall retainer for wall bracket, made of steel			15.8 kg
1-267162	Lattice girder for wall bracket, made of aluminum			7.8 kg
1-267163	Inclined support for wall bracket for higher load capacity, including pins and spring cotters, made of steel			10.6 kg

Application example

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

Article no.	Diameter	DIBt	piece
Z-834001	12 × 60 mm
Z-834002	12 × 80 mm

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

Article no.	Diameter	DIBt	piece
Z-850001	3 mm

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.
