Decks

Offer enquiry Decks

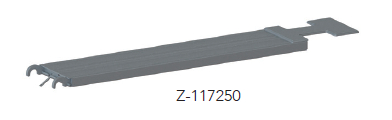

Overlapping gap deck

• Made of aluminum
• With wind protection

Article no.	Length	Width	Weight	Load capacity	piece
Z-117250	250 cm	30 cm	7,8 kg	200 kg / m²
Z-117300	300 cm	30 cm	9,8 kg	200 kg / m²

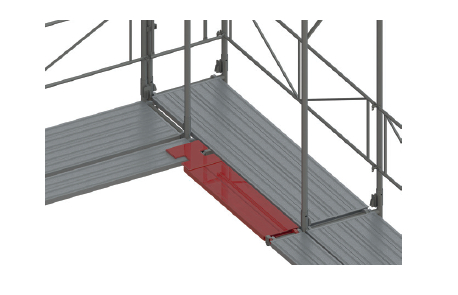

Application example

Compensation deck

• Made of aluminum
• Straight, with wind protection
• Eliminates gaps between brackets and frame scaffolding
• Compatible with MATO 1 and MATO 8 scaffolding systems

Article no.	Length	Width	Weight	Hook width	piece
2-165065	60 cm	60 cm	4,7 kg	16,5 mm
Z-165055	55 cm	62 cm	4,2 kg	25 mm

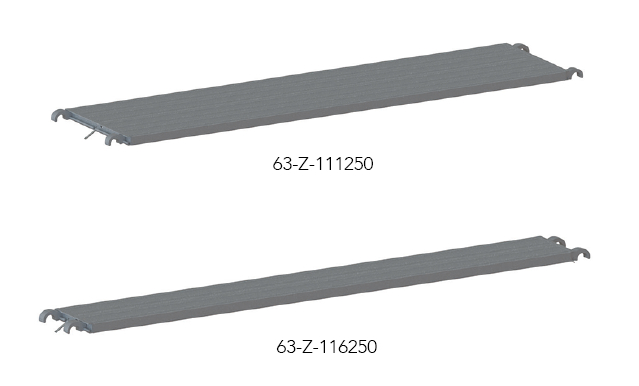

Full-aluminum deck 38 mm

• Up to 600 kg/m²
• Hook width 38 mm, with wind protection

Article no.	Length	Width	Weight	Load capacity
63-Z-111065	65 cm	60 cm	5,6 kg	600 kg / m²
63-Z-111070	70 cm	60 cm	5,9 kg	600 kg / m²
63-Z-111075	75 cm	60 cm	6,1 kg	600 kg / m²
63-Z-111100	100 cm	60 cm	7,5 kg	600 kg / m²
63-Z-111125	125 cm	60 cm	8,9 kg	600 kg / m²
63-Z-111150	150 cm	60 cm	10,4 kg	600 kg / m²
63-Z-111200	200 cm	60 cm	13,1 kg	600 kg / m²
63-Z-111225	225 cm	60 cm	14,5 kg	450 kg / m²
63-Z-111250	250 cm	60 cm	16,0 kg	450 kg / m²
63-Z-111300	300 cm	60 cm	18,8 kg	200 kg / m²

63-Z-116065	65 cm	30 cm	3,6 kg	600 kg / m²
63-Z-116070	70 cm	30 cm	3,8 kg	600 kg / m²
63-Z-116100	100 cm	30 cm	4,8 kg	600 kg / m²
63-Z-116125	125 cm	30 cm	5,7 kg	600 kg / m²
63-Z-116150	150 cm	30 cm	6,6 kg	600 kg / m²
63-Z-116200	200 cm	30 cm	8,3 kg	600 kg / m²
63-Z-116250	250 cm	30 cm	10,0 kg	450 kg / m²
63-Z-116300	300 cm	30 cm	15,5 kg	450 kg / m²
63-Z-116350	350 cm	30 cm	17,8 kg	450 kg / m²
63-Z-116400	400 cm	30 cm	20,1 kg	200 kg / m²

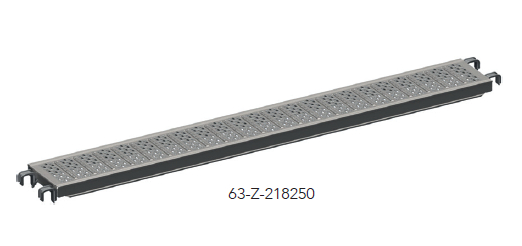

Steel deck 40 mm

• Up to 600 kg/m²
• Hook width 40 mm, with wind protection

Article no.	Length	Width	Weight	Load capacity
63-Z-218065	65 cm	30 cm	5,2 kg	600 kg / m²
63-Z-218070	70 cm	30 cm	5,6 kg	600 kg / m²
63-Z-218100	100 cm	30 cm	7,4 kg	600 kg / m²
63-Z-218150	150 cm	30 cm	10,5 kg	600 kg / m²
63-Z-218200	200 cm	30 cm	13,6 kg	600 kg / m²
63-Z-218250	250 cm	30 cm	16,8 kg	450 kg / m²
63-Z-218300	300 cm	30 cm	19,8 kg	300 kg / m²
63-Z-218350	350 cm	30 cm	21,1 kg	300 kg / m²
63-Z-218400	400 cm	30 cm	23,8 kg	200 kg / m²

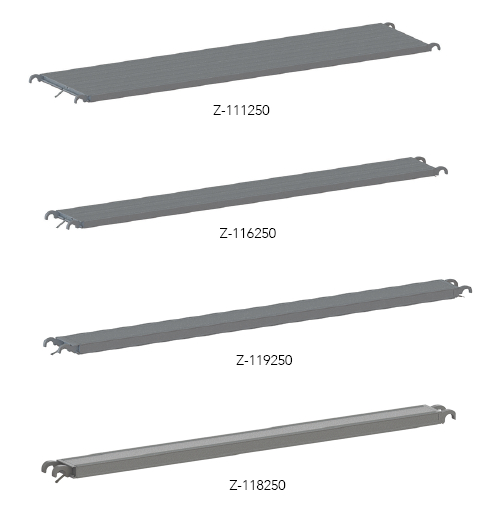

Full-aluminum deck

• Up to 600 kg/m²
• Hook width 18,5 mm, with wind protection

Article no.	Length	Width	Weight	Load capacity
Z-111065	65 cm	60 cm	5,0 kg	600 kg / m²
Z-111070	70 cm	60 cm	5,3 kg	600 kg / m²
Z-111075	75 cm	60 cm	5,7 kg	600 kg / m²
Z-111100	100 cm	60 cm	6,9 kg	600 kg / m²
Z-111125	125 cm	60 cm	8,3 kg	600 kg / m²
Z-111150	150 cm	60 cm	9,8 kg	600 kg / m²
Z-111180	180 cm	60 cm	11,4 kg	600 kg / m²
Z-111200	200 cm	60 cm	12,6 kg	600 kg / m²
Z-111225	225 cm	60 cm	14,1 kg	600 kg / m²
Z-111250	250 cm	60 cm	15,4 kg	450 kg / m²
Z-111300	300 cm	60 cm	18,3 kg	200 kg / m²

Z-116065	65 cm	30 cm	3,1 kg	600 kg / m²
Z-116070	70 cm	30 cm	3,2 kg	600 kg / m²
Z-116075	75 cm	30 cm	3,4 kg	600 kg / m²
Z-116100	100 cm	30 cm	4,3 kg	600 kg / m²
Z-116125	125 cm	30 cm	5,5 kg	600 kg / m²
Z-116140	140 cm	30 cm	5,8 kg	600 kg / m²
Z-116150	150 cm	30 cm	6,0 kg	600 kg / m²
Z-116200	200 cm	30 cm	7,7 kg	600 kg / m²
Z-116225	225 cm	30 cm	8,6 kg	600 kg / m²
Z-116250	250 cm	30 cm	9,4 kg	450 kg / m²
Z-116300	300 cm	30 cm	14,8 kg	450 kg / m²
Z-116350	350 cm	30 cm	17,1 kg	300 kg / m²
Z-116400	400 cm	30 cm	19,4 kg	200 kg / m²

Z-119065	65 cm	20 cm	2,6 kg	600 kg / m²
Z-119070	70 cm	20 cm	2,7 kg	600 kg / m²
Z-119075	75 cm	20 cm	2,8 kg	600 kg / m²
Z-119100	100 cm	20 cm	3,2 kg	600 kg / m²
Z-119125	125 cm	20 cm	3,8 kg	600 kg / m²
Z-119150	150 cm	20 cm	4,3 kg	600 kg / m²
Z-119180	180 cm	20 cm	4,8 kg	600 kg / m²
Z-119200	200 cm	20 cm	5,3 kg	600 kg / m²
Z-119225	225 cm	20 cm	5,8 kg	600 kg / m²
Z-119250	250 cm	20 cm	6,4 kg	600 kg / m²
Z-119300	300 cm	20 cm	9,3 kg	600 kg / m²

• Hook width 25 mm, with wind protection
Z-118065	65 cm	15 cm	2,2 kg	600 kg / m²
Z-118070	70 cm	15 cm	2,3 kg	600 kg / m²
Z-118075	75 cm	15 cm	2,4 kg	600 kg / m²
Z-118100	100 cm	15 cm	2,9 kg	600 kg / m²
Z-118125	125 cm	15 cm	3,3 kg	600 kg / m²
Z-118150	150 cm	15 cm	3,8 kg	600 kg / m²
Z-118200	200 cm	15 cm	4,7 kg	600 kg / m²
Z-118250	250 cm	15 cm	5,6 kg	600 kg / m²
Z-118300	300 cm	15 cm	8,5 kg	600 kg / m²

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

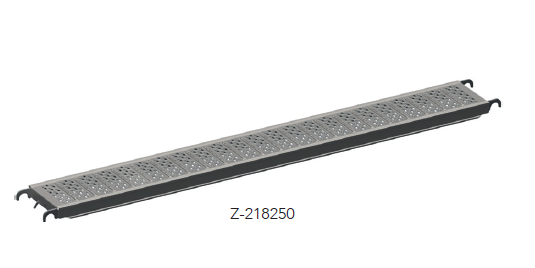

Steel deck 10 mm

• Up to 600 kg/m²
• Hook width 10 mm, with wind protection

Article no.	Length	Width	Weight	Load capacity
Z-218065	65 cm	30 cm	5,0 kg	600 kg / m²
Z-218070	70 cm	30 cm	5,3 kg	600 kg / m²
Z-218100	100 cm	30 cm	7,1 kg	600 kg / m²
Z-218125	125 cm	30 cm	12,5 kg	600 kg / m²
Z-218150	150 cm	30 cm	13,5 kg	600 kg / m²
Z-218200	200 cm	30 cm	15,4 kg	600 kg / m²
Z-218250	250 cm	30 cm	17,3 kg	450 kg / m²
Z-218300	300 cm	30 cm	19,2 kg	300 kg / m²

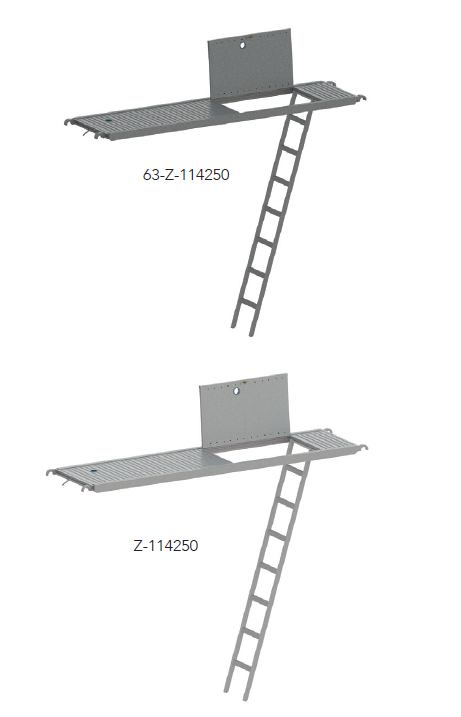

Aluminum deck with hatch and ladder

• Up to 300 kg/m²

Article no.	Length	Width	Weight	Load capacity
• Hook width 38 mm, with wind protection
63-Z-114150	150 cm	60 cm	20,1 kg	300 kg / m²
63-Z-114200	200 cm	60 cm	23,0 kg	300 kg / m²
63-Z-114250	250 cm	60 cm	24,2 kg	200 kg / m²
63-Z-114300	300 cm	60 cm	28,4 kg	200 kg / m²

• Hook width 18,5 mm, with wind protection
Z-114100	100 cm	60 cm	12,0 kg	300 kg / m²
Z-114150	150 cm	60 cm	19,5 kg	300 kg / m²
Z-114200	200 cm	60 cm	22,4 kg	300 kg / m²
Z-114250	250 cm	60 cm	23,6 kg	200 kg / m²
Z-114300	300 cm	60 cm	27,8 kg	200 kg / m²

Aluminum deck with hatch and ladder Tobler AG

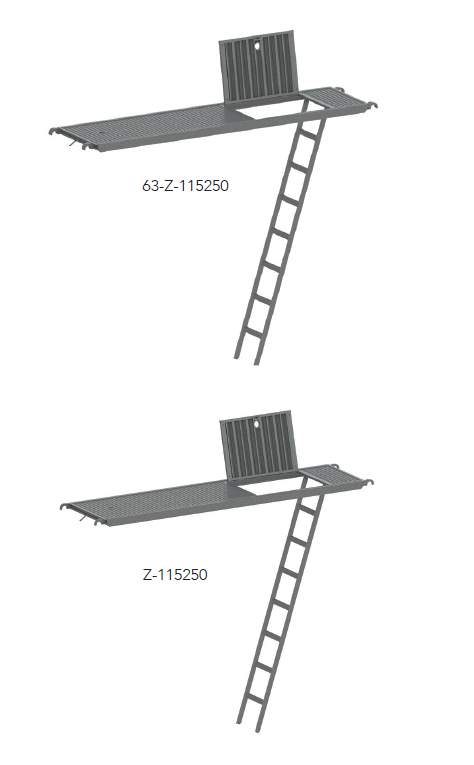

Aluminum deck with hatch and ladder light

• Up to 300 kg/m²

Article no.	Length	Width	Weight	Load capacity
• Hook width 38 mm, with wind protection
63-Z-115150	150 cm	60 cm	17,1 kg	300 kg / m²
63-Z-115200	200 cm	60 cm	19,0 kg	300 kg / m²
63-Z-115225	225 cm	60 cm	20,2 kg	200 kg / m²
63-Z-115250	250 cm	60 cm	22,0 kg	200 kg / m²
63-Z-115300	300 cm	60 cm	23,2 kg	200 kg / m²

• Hook width 18,5 mm, with wind protection
Z-115150	150 cm	60 cm	16,6 kg	300 kg / m²
Z-115200	200 cm	60 cm	18,4 kg	300 kg / m²
Z-115250	250 cm	60 cm	18,5 kg	200 kg / m²
Z-115300	300 cm	60 cm	22,6 kg	200 kg / m²
