Offer enquiry Guardrail posts

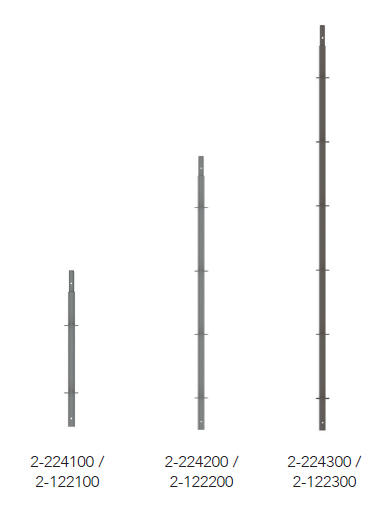

Guardrail posts

• Tube diameter 48,3 mm

Item no.	Designation	Height	Wall Thickness	Weight	piece
2-224050	Made of steel	50 cm	3.25 mm	2.3 kg
2-224100	Made of steel	100 cm	3.25 mm	4.3 kg
2-224200	Made of steel	200 cm	3.25 mm	8.1 kg
2-224300*	Made of steel	300 cm	3.25 mm	12.0 kg
2-224400*	Made of steel	400 cm	3.25 mm	15.9 kg
2-122050	Made of aluminum	50 cm	4.00 mm	1.1 kg
2-122100	Made of aluminum	100 cm	4.00 mm	1.9 kg
2-122200	Made of aluminum	200 cm	4.00 mm	3.6 kg
2-122300*	Made of aluminum	300 cm	4.00 mm	5.2 kg
2-122400*	Made of aluminum	400 cm	4.00 mm	6.8 kg

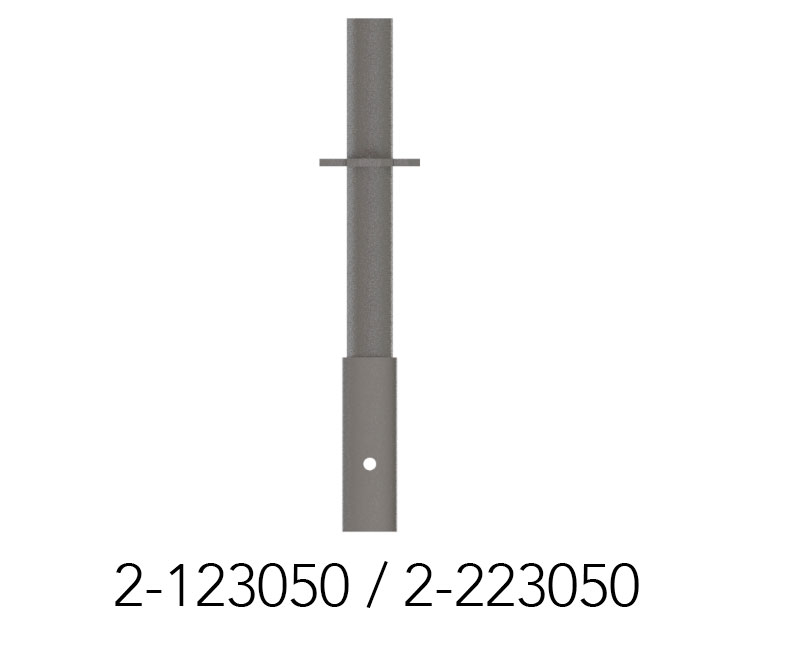

Base post

• To support the first scaffolding frame
• Tube diameter 48,3 mm

Item no.	Designation	Height	Weight	piece
2-223050	Made of steel	50 cm	2.2 kg
2-123050	Made of aluminum	50 cm	1.0 kg

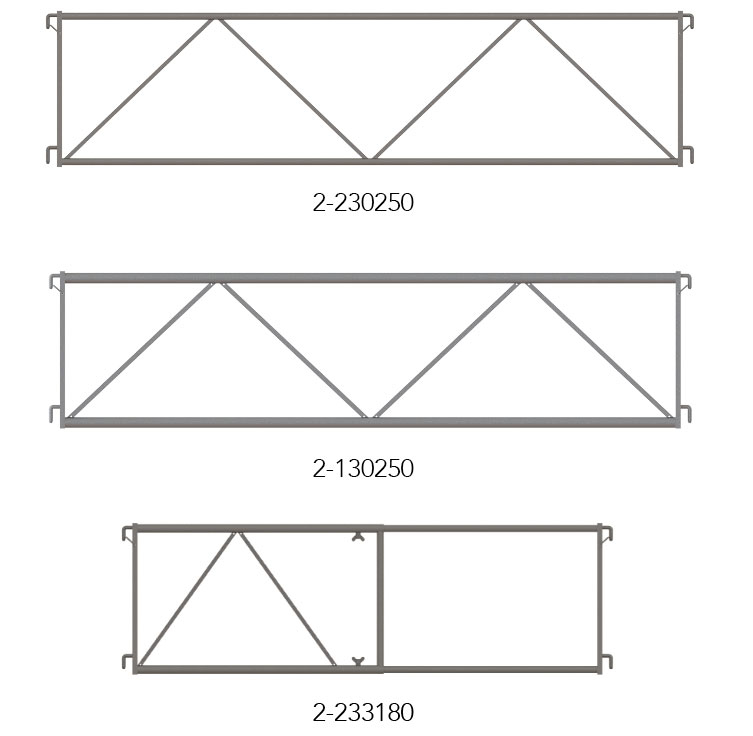

Guardrail

Item no.	Designation	Length	Height	Weight	piece
2-230100	Made of steel, With diagonal bracing	100 cm	60 cm	4.4 kg
2-230125	Made of steel, With diagonal bracing	125 cm	60 cm	5.3 kg
2-230150	Made of steel, With diagonal bracing	150 cm	60 cm	6.0 kg
2-230200	Made of steel, With diagonal bracing	200 cm	60 cm	7.6 kg
2-230250	Made of steel, With diagonal bracing	250 cm	60 cm	9.0 kg
2-230300	Made of steel, With diagonal bracing	300 cm	60 cm	10.2 kg
2-130100	Made of aluminum, With diagonal bracing	100 cm	60 cm	2.4 kg
2-130125	Made of aluminum, With diagonal bracing	125 cm	60 cm	2.9 kg
2-130150	Made of aluminum, With diagonal bracing	150 cm	60 cm	3.3 kg
2-130200	Made of aluminum, With diagonal bracing	200 cm	60 cm	4.4 kg
2-130250	Made of aluminum, With diagonal bracing	250 cm	60 cm	5.2 kg
2-130300	Made of aluminum, With diagonal bracing	300 cm	60 cm	6.1 kg
2-233180	Made of steel, Adjustable	110–180 cm		9.4 kg
2-233330	Made of steel, Adjustable	180–330 cm		17.3 kg

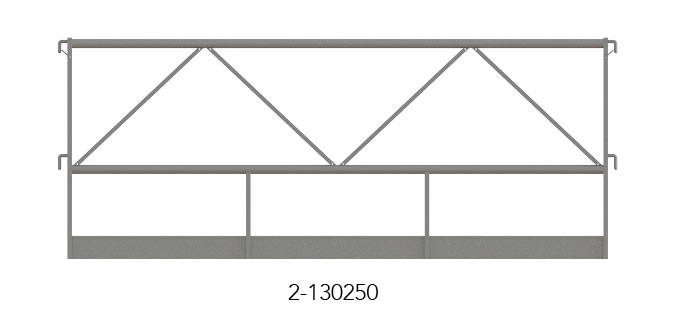

Safety guardrail

• Made of aluminum
• With diagonal bracing
• With toe board

Item no.	Length	Height	Weight	piece
2-132100	100 cm	100 cm	3.9 kg
2-132150	150 cm	100 cm	5.6 kg
2-132200	200 cm	100 cm	7.1 kg
2-132250	250 cm	100 cm	8.8 kg
2-132300	300 cm	100 cm	10.1 kg
2-132350	350 cm	100 cm	11.8 kg
2-132400	400 cm	100 cm	13.4 kg

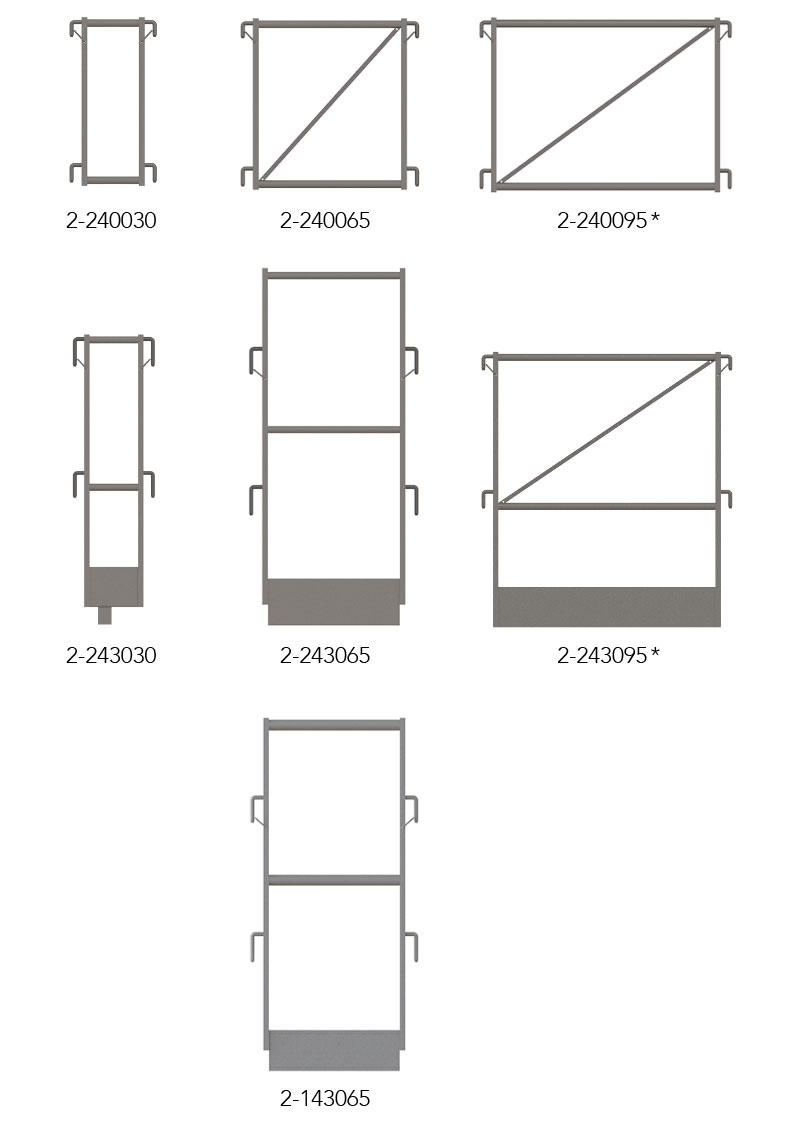

End railing

Item no.	Designation	Width	Height	Weight	piece
2-240030	Made of steel	30 cm	50 cm	2.6 kg
2-240065	Made of steel	65 cm	50 cm	3.6 kg
2-240095*	Made of steel	95 cm	50 cm	4.5 kg
2-243020	Made of steel, With toe board	20 cm	100 cm	4.2 kg
2-243030	Made of steel, With toe board	30 cm	100 cm	4.8 kg
2-243065	Made of steel, With toe board	65 cm	120 cm	6.6 kg
2-243095*	Made of steel, With toe board	95 cm	120 cm	7.2 kg
2-143065	Made of aluminum, With end toe board	65 cm	100 cm	3.0 kg

* Marked violet RAL 4008

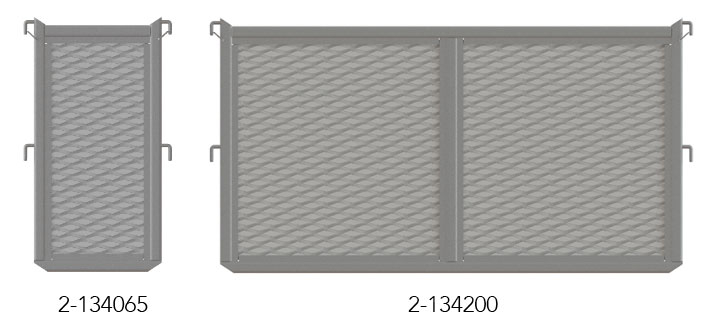

Brick guards

• Made of aluminum
• With toe board
• Powder-coated on request

Item no.	Length	Height	Weight	piece
2-134065	65 cm	100 cm	4.2 kg
2-134100	100 cm	100 cm	6.0 kg
2-134125	125 cm	100 cm	7.3 kg
2-134150	150 cm	100 cm	8.6 kg
2-134200	200 cm	100 cm	12.2 kg
2-134250	250 cm	100 cm	14.7 kg
2-134300	300 cm	100 cm	18.0 kg

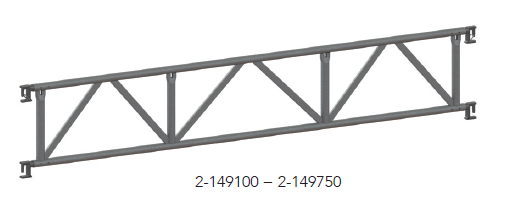

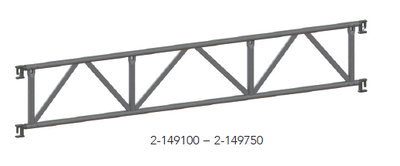

Lattice girder

• Made of aluminum

Item no.	Length	Height	Weight	piece
2-149100	100 cm	50 cm	10.5 kg
2-149150	150 cm	50 cm	14.5 kg
2-149200	200 cm	50 cm	14.9 kg
2-149250	250 cm	50 cm	17.4 kg
2-149300	300 cm	50 cm	19.2 kg
2-149400	400 cm	50 cm	23.6 kg
2-149500	500 cm	50 cm	27.8 kg
2-149600	600 cm	50 cm	32.1 kg
2-149700	700 cm	50 cm	36.5 kg
2-149750	750 cm	50 cm	39.0 kg

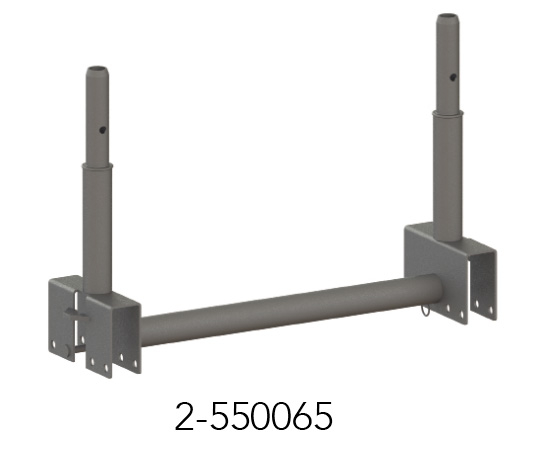

Platform support

Item no.	Length	Weight	piece
2-550065	65 cm	7.1 kg

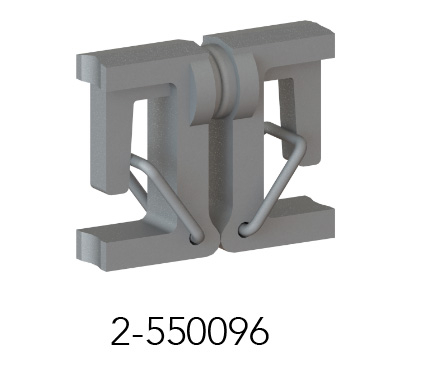

Double head

• Made of steel

Item no.	Weight	piece
2-550065	1.9 kg

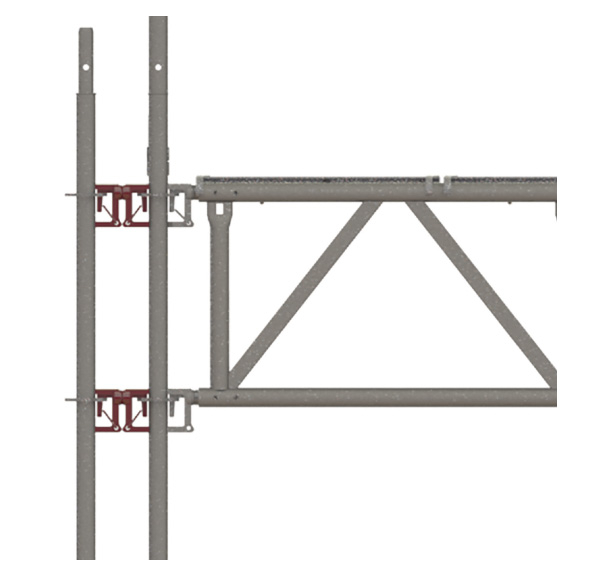

Application example

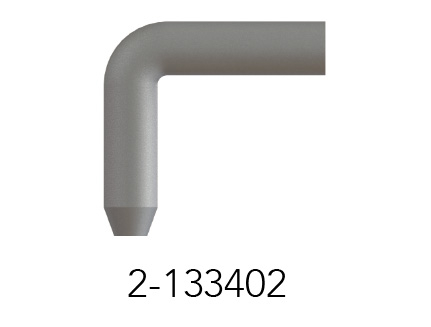

Replacement hook for MATO 2 guardrails

• Made of aluminum

Item no.	Length	piece
2-550065	Long
2-133403	Short

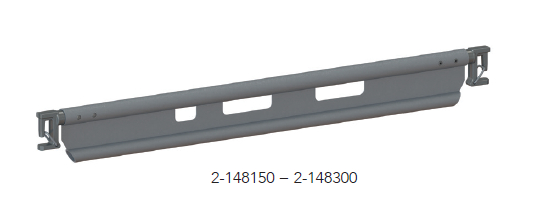

Heavy-duty ledger

Item no.	Designation	Length	Weight	piece
2-248150	Made of steel	150 cm	11.0 kg
2-248200	Made of steel	200 cm	15.2 kg
2-148150	Made of aluminum	150 cm	7.0 kg
2-148200	Made of aluminum	200 cm	8.6 kg
2-148250	Made of aluminum	250 cm	10.0 kg
2-148300	Made of aluminum	300 cm	11.6 kg

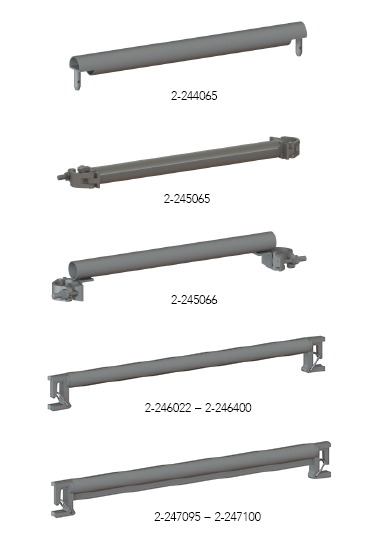

Cross bracket / tie bar

• Made of steel, light version
• For platform support in intermediate heights

Item no.	Designation	Length	Weight	piece
2-244065	Made of steel, light version, For platform support in intermediate heights	65 cm	1.6 kg
2-245065	With screw coupling on both sides (offset*)	65 cm	3.1 kg
2-245066	With screw coupling on both sides (offset*)	65 cm	3.4 kg
2-246022	With cast head	22.5 cm	2.0 kg
2-246025	With cast head	25.5 cm	2.1 kg
2-246036	With cast head	30 cm	2.3 kg
2-246037	With cast head	37.5 cm	2.4 kg
2-246040	With cast head	40 cm	2.4 kg
2-246050	With cast head	50 cm	2.7 kg
2-246065	With cast head	65 cm	3.1 kg
2-246100	With cast head	100 cm	4.0 kg
2-246125	With cast head	125 cm	5.6 kg
2-246150	With cast head	150 cm	6.5 kg
2-246200	With cast head	200 cm	8.2 kg
2-246250	With cast head	250 cm	9.9 kg
2-246300	With cast head	300 cm	11.6 kg
2-246350	With cast head	350 cm	13.3 kg
2-246400	With cast head	400 cm	15.1 kg
2-247095*	Reinforced	95 cm	4.4 kg
2-247100	Reinforced	100 cm	4.5 kg

* Marked violet RAL 4008
