Offer enquiry Stairs

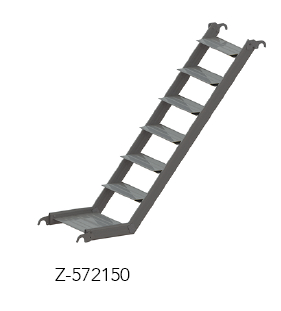

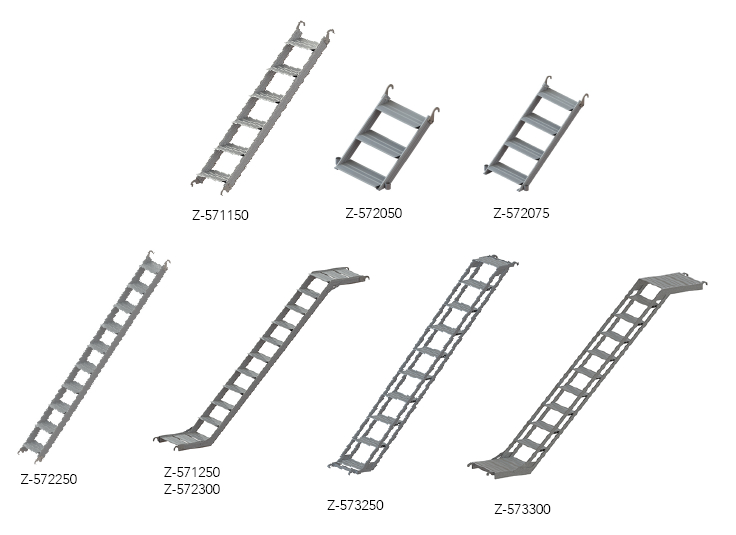

Article no.	Designation	Length	Width	Height	Weight	DIBt	piece
• with single stringer
Z-571150		150 cm	60 cm	125 cm	13,3 kg
Z-572050		50 cm	60 cm	50 cm	5,8 kg
Z-572075		75 cm	60 cm	75 cm	7,7 kg
Z-572200		200 cm	60 cm	200 cm	15,9 kg
Z-572250		250 cm	60 cm	200 cm	17,6 kg
Z-571250	with landing	250 cm	60 cm	200 cm	23,6 kg
Z-572300	with landing	300 cm	60 cm	200 cm	24,4 kg
• with double stringer
Z-573250		250 cm	60 cm	200 cm	18,1 kg
Z-573300	with landing	300 cm	60 cm	200 cm	28,7 kg
Z-574150		150 cm	90 cm	125 cm	18,6 kg
Z-574250		250 cm	90 cm	200 cm	27,2 kg

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

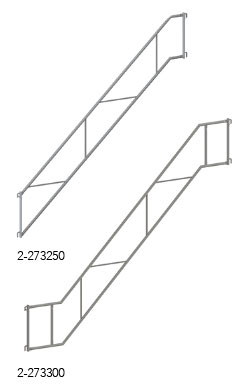

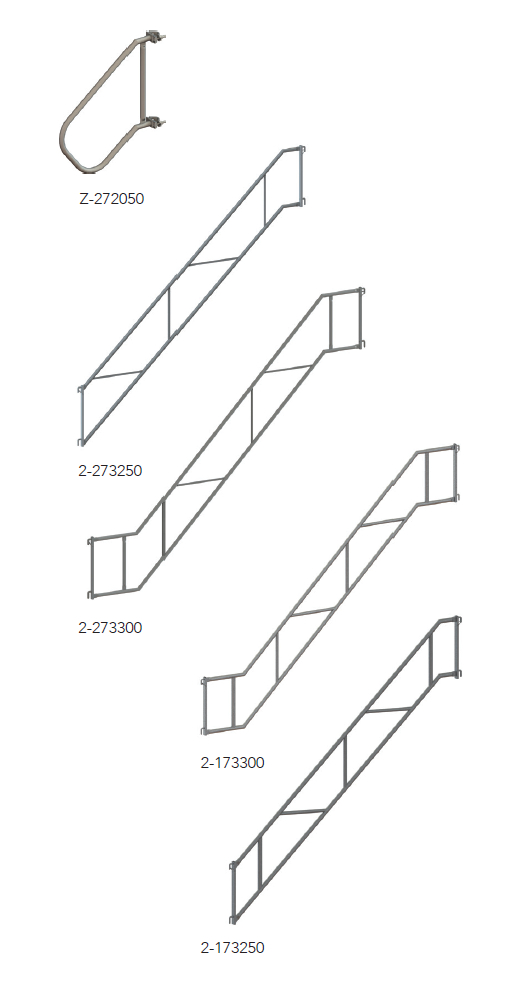

Article no.	Length	Height	Weight	DIBt	piece
• made of steel
Z-272050	100 cm	57 cm	8,2 kg
2-273250	250 cm	200 cm	13,5 kg
2-273300	300 cm	200 cm	17,1 kg
• made of aluminum
2-173250	250 cm	200 cm	8.0 kg
2-173300	300 cm	200 cm	9.4 kg

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

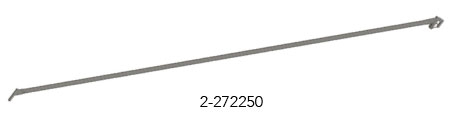

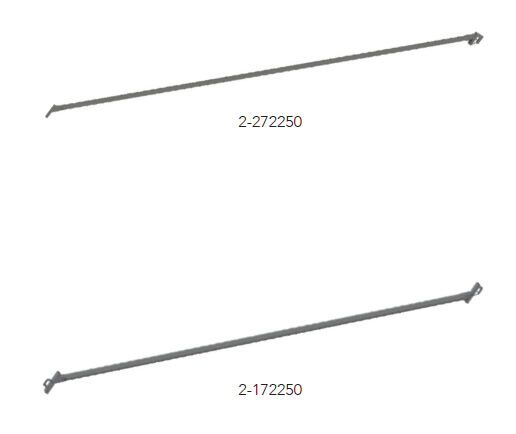

Article no.	Length	Weight	DIBt	piece
• made of steel
2-272150	150 cm	4,1 kg
2-272250	250 cm	5.3 kg
2-272300	300 cm	6,5 kg
• made of aluminum
2-172250	250 cm	4,7 kg
2-172300	300 cm	5,3 kg

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.

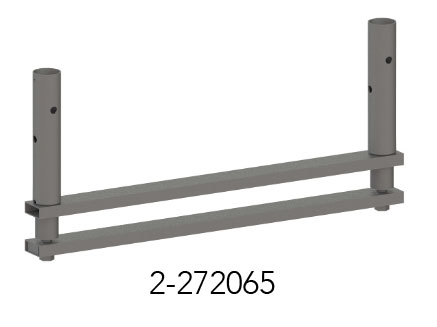

Article no.	Designation	Width	Weight	DIBt	piece
2-272065		65 cm	4,8 kg
2-272095		95 cm	6.1 kg
2-272065S	SET item: with centring tube Ø 38 × 3 mm	65 cm	6,2 kg

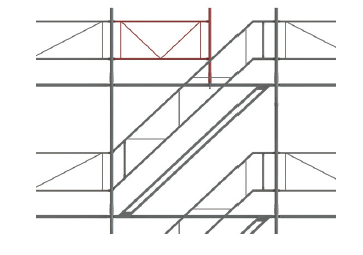

Application example

✔ The products labelled with hooks are certified by the German Institute for Building Technology (DIBt).
➜ Products marked with an arrow are still in the approval process at the time of publication.
We will be happy to provide you with information on whether approval has been granted in the meantime.
