Flat roof guardrail All-in-One

arrow Your advantages

  • Ideal for use in extremely tight spaces with only 60 cm between the roof edge and the solar console
  • 1 product, 3 different variants
  • Rapid installation and removal
  • Space-saving storage – without loss of components thanks to integrated locking pins
  • Also suitable for permanent installation and easily foldable – reusable at any time

The innovative flat roof guardrail was developed for use in confined spaces. With a minimal installation width of only 60 cm between the roof edge and the solar console, the foldable flat roof guardrail can be easily installed – without compromising on the highest safety standards. The guard rail standards are screwed to the parapet at a maximum spacing of 3 meters. After use, it can be folded down to save space and is ready for use again at any time.

One product – three variants:

Variant 1: With a 135 cm outreach and one ballast base

Variant 2: With a 60 cm outreach and two ballast base

Variant 3: With a 60 cm outreach, fixed mounted on the parapet



Variante 1 + 2

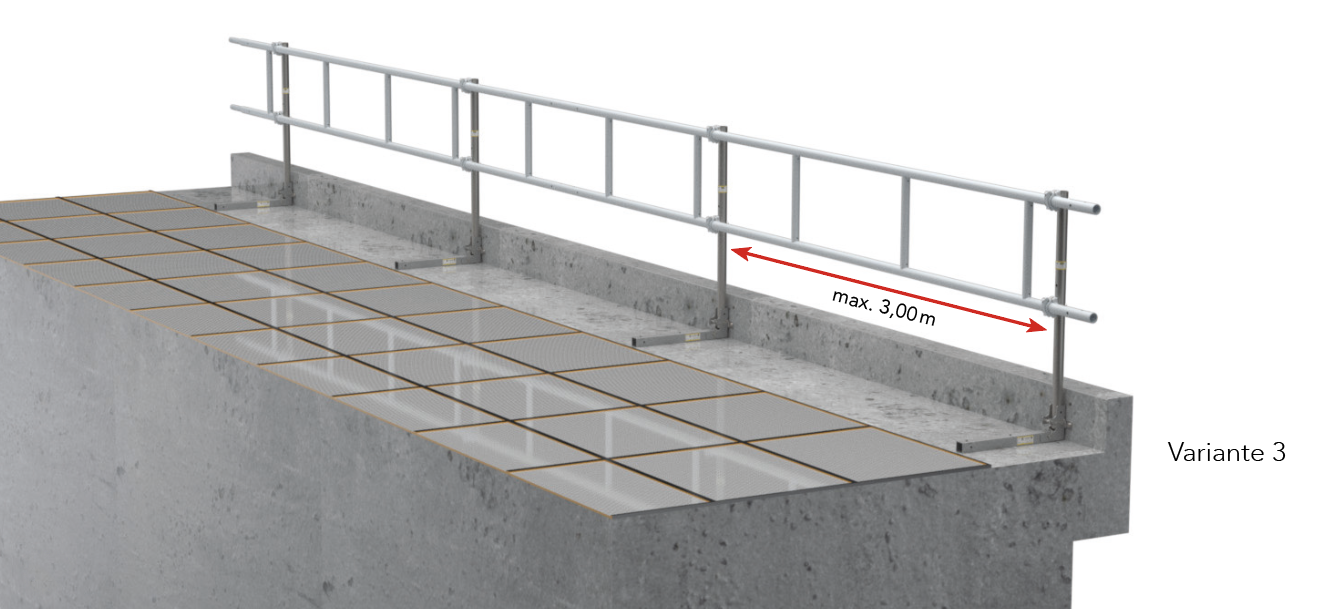

Variante 3



Flachdachgelaender All-in-One



Offer enquiry Flat roof guardrail All-in-One

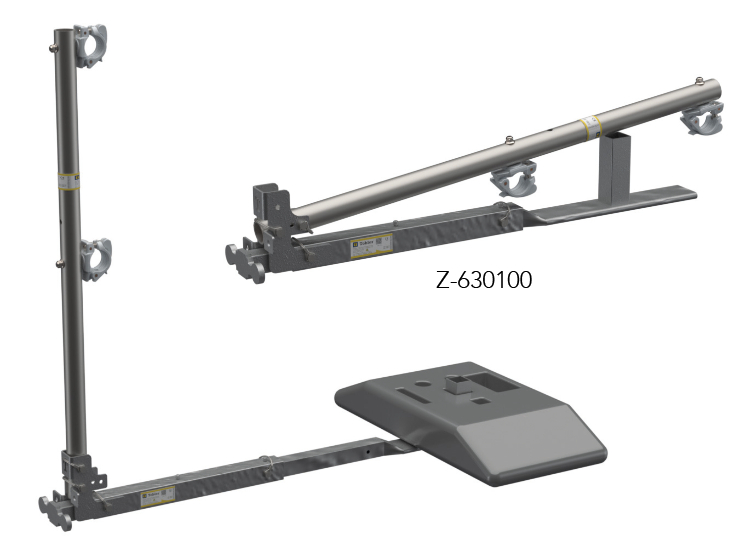

Flat roof guardrail "All-in-One" set

• Flat roof guardrail "All-in-One" set consisting of: guard rail standards, flat roof guardrail crossbeam, ballast base mount, rear insert including locking pin (without ballast base mount TL K1)
• Made of steel

Article no. Height Weight Length telescopic piece
Z-630100 110 cm 19,00 kg 58 – 134 cm
Flat roof guardrail

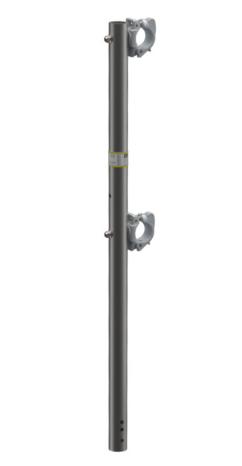

Guard rail standard aluminium

• With quicke-release coupling

Article no. Height Weight piece
Z-630110 110 cm 6,00 kg
Guard rail standard aluminium Tobler AG

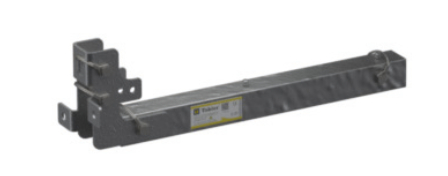

Crossbeam for flat roof guardrail

•Made of steel

Article no. Length Weight piece
Z-630050 58 cm 3,50 kg
Crossbeam for flat roof guardrail Tobler AG

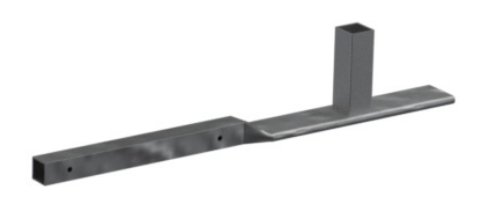

Rear slot

• For flat roof guardrail «All-in-One»

Article no. Length Weight piece
Z-630010 70 cm 2,40 kg
Rear slot Tobler AG

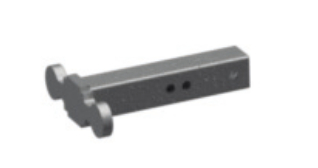

Ballast base mount

• Made of steel
• For flat roof guardrail «All-in-One»

Article no. Weight piece
Z-630005 0,90 kg
Ballast base mount Tobler AG

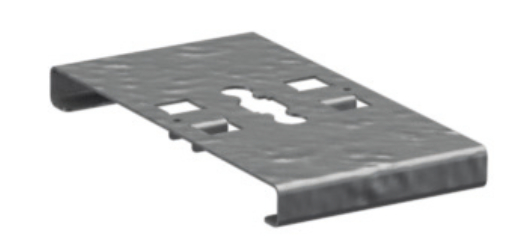

Retaining plate

• For flat roof guardrail «All-in-One»

Article no. Weight piece
Z-630020 6,40 kg
Retaining plate Tobler AG

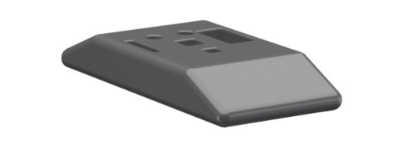

Ballast base TL K1

Article no. Weight piece
B-310028 25,00 kg
Ballast base TL K1 Tobler AG

All prices net in CHF, excl. VAT and transport, ex warehouse. Tobler AG general terms & conditions apply.
