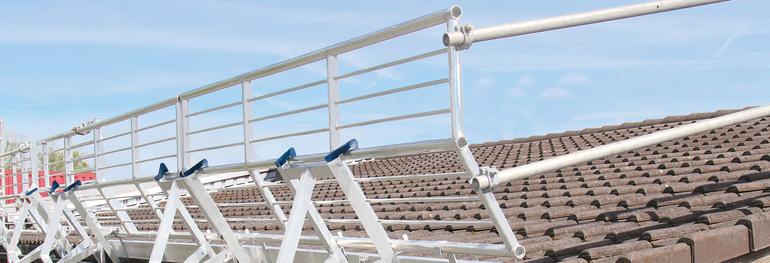

Offer enquiry Flat roof guardrail bracket

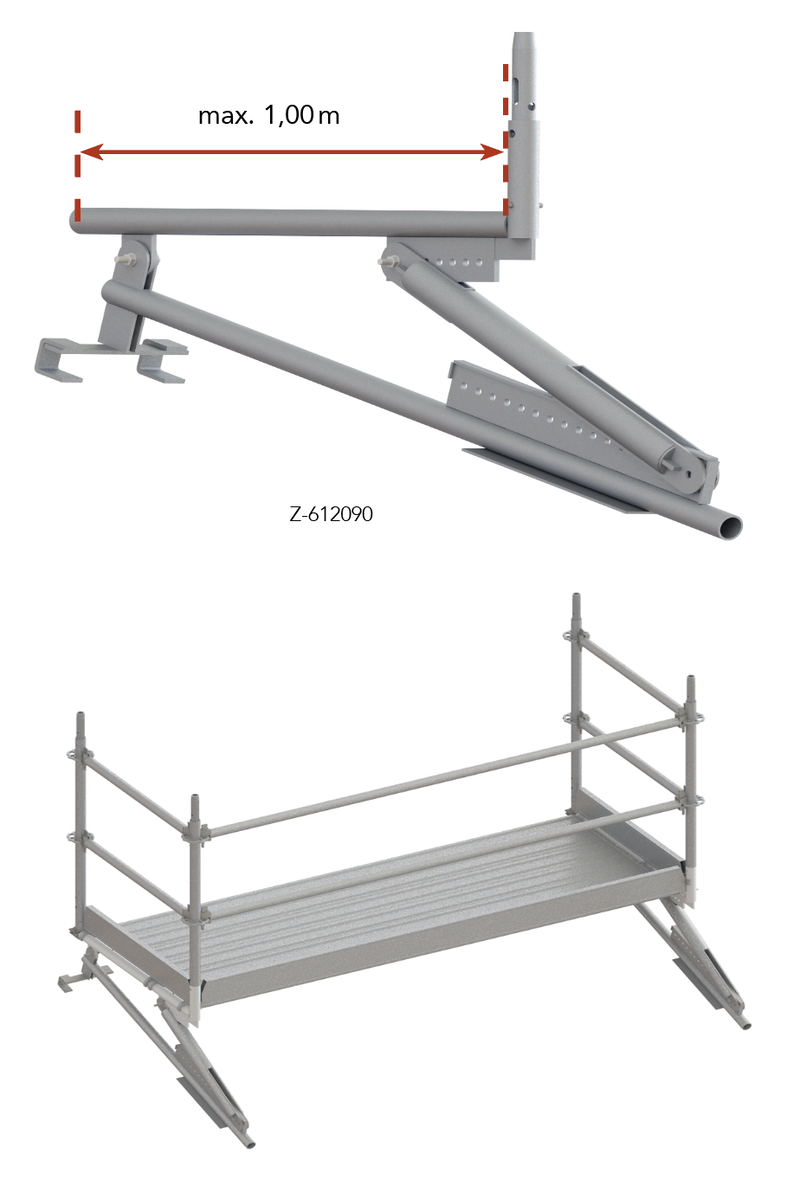

Roof scaffolding console bracket

• Made of aluminium
• Can be precisely adapted to every roof slope angle greater than 15 ° – highly flexible height adjustment
•Suitable for 1 wide and 1 narrow standard deck with round tube support next to each other
• Load: 500 kg / bracket

Item no.	Length	Weight	piece
Z-612090	90 cm	11,80 kg

Push-on spigot with coupling

• Push-on spigot with coupling, compatible with MATO 1, 2 and 8, as well as, the roof scaffolding console

Item no.	Length	Weight	piece
Z-612091	25 cm	1,80 kg

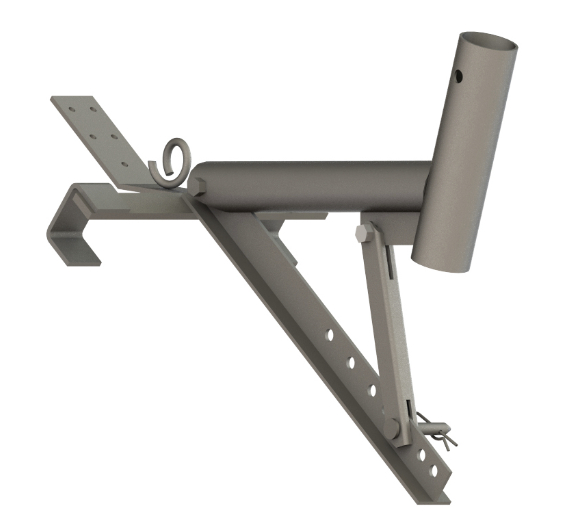

Solar console bracket

• Steel
•For up to 34 cm-wide platforms with round-tube support
•Adjustable to roof slope angles between 20 ° – 45 °

Item no.	Length	Weight	Weight	Type	piece
Z-612030	30 cm	4,80 kg	57 mm	MATO Z
Z-612031	30 cm	4,4 kg	48,3 mm	MATO 1

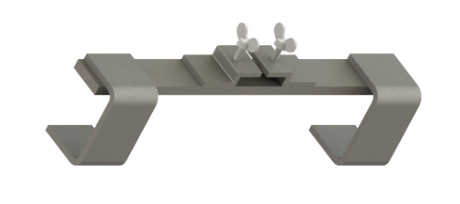

Additional support for solar console bracket

Item no.	Length	Weight	piece
Z-612035	29 cm	1,20 kg

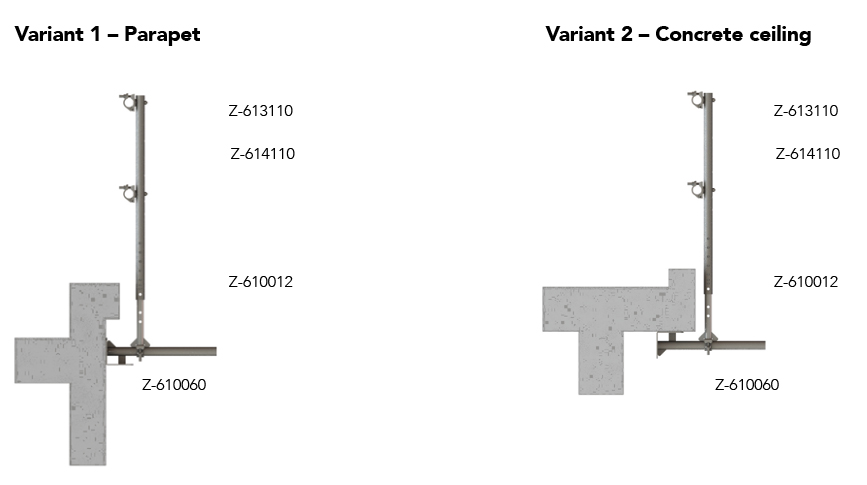

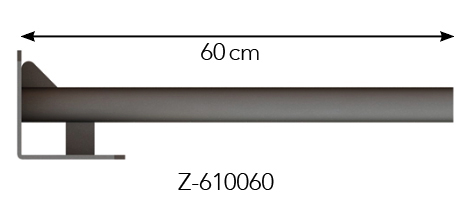

Flat roof guardrail bracket

• Made of galvanised steel

Item no.	Length	Weight	Bracket width	piece
Z-610040	27 cm	2,50 kg	15 x 15 cm
Z-610060	60 cm	4,20 kg	15 x 15 cm

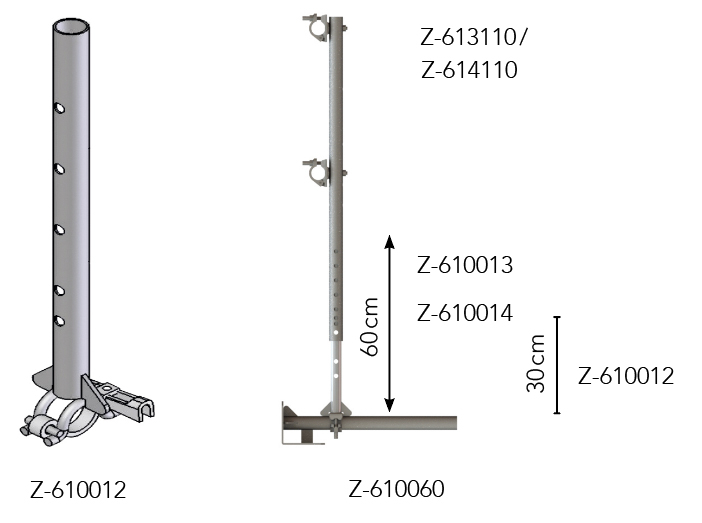

Standards brackets

Item no.	Length	Weight	piece
Z-610012 with wedge coupling, adjustable	60 cm	2,50 kg
Z-610013 with screw coupling, adjustable	60 cm	2,10 kg
Z-610014 with wedge coupling, non-adjustable	30 cm	2,50 kg

Flat roof bracket for metal facade

• Made of solid aluminum
• Tube Ø 48,3 mm
• Slot width 15 mm

Item no.	Length	Width	Height	Weight	piece
Z-610020	80 cm	25 cm	50 cm	3,70 kg

All prices net in CHF, excl. VAT and transport, ex warehouse. Tobler AG general terms & conditions apply.
