Rafter clamp Tobler AG Tobler AG

Rafter clamp

Your advantages

aluminum for light weight: only 6,8 kg
Can be assembled by just one person
Easy pre-positioning using locking pins
End positioning using an impact wrench or scaffolding ratchet (spanner size 22 mm)
Clamping width 0 – 27 cm

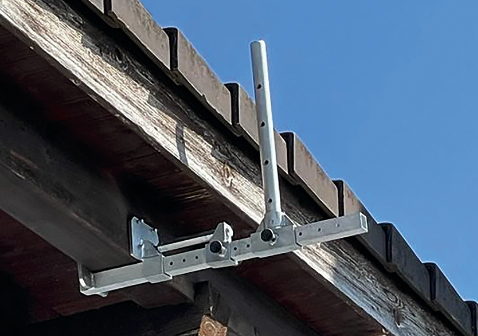

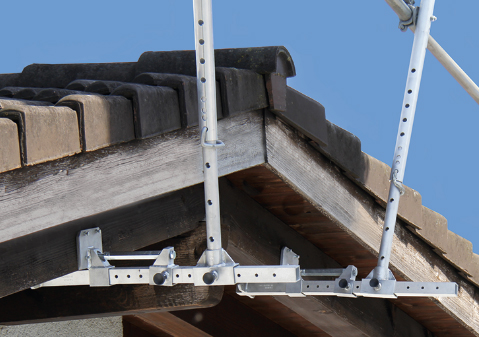

The Tobler rafter clamp made of aluminium is extremely light which means it can be installed quickly, securely and easily by just one person. You can put the rafter tie in the right position in an instant, for more efficient use of your time.

Offer enquiry Rafter clamp

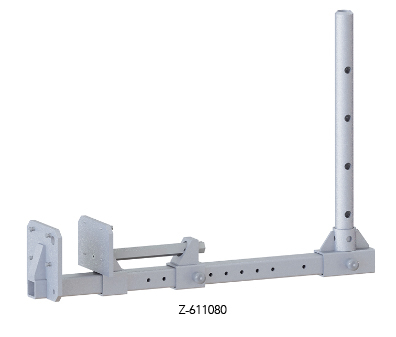

Rafter clamp

Item no.	Length	Width	Weight	Clamping width	piece
Z-611080	70 cm	15 cm	6,8 kg	0 – 27 cm

Rafter clamp Tobler AG

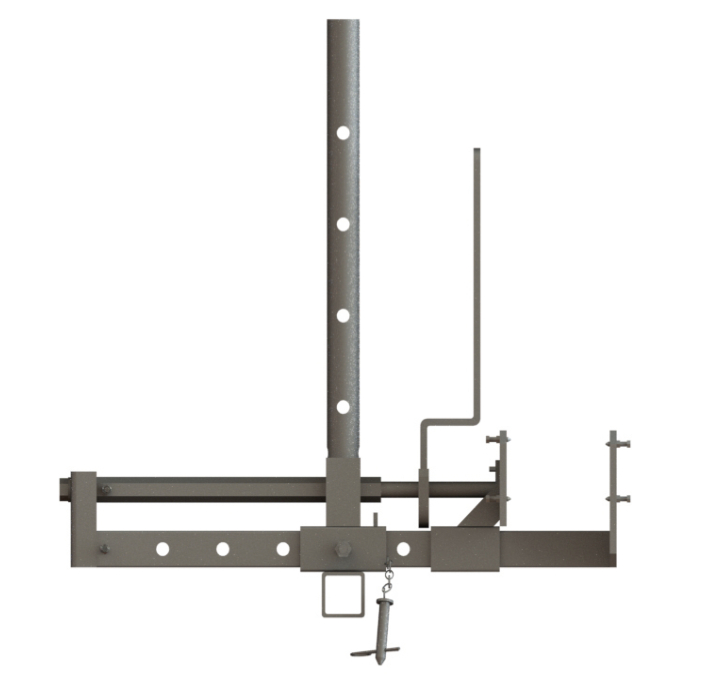

Screw clamp – Steel

•Galvanized steel screw clamp (Thickness 3 mm), incl. integrated mounting ratchet

Item no.	Length	Width	Weight	piece
Z-611060	60 cm	15 cm	10,30 kg
Z-611070	70 cm	15 cm	12,60 kg

Screw clamp – Steel Tobler AG

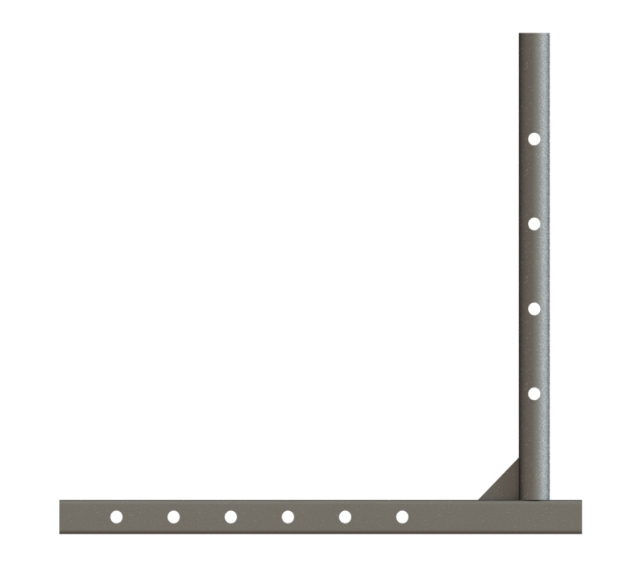

Standard bracket

• Standard bracket for screw clamp for purlin assembly – world’s only screw clamp that can also be used

Item no.	Length	Width	Weight	piece
Z-611072	60 cm	5 cm	3,70 kg

Standard bracket Tobler AG

All prices net in CHF, excl. VAT and transport, ex warehouse. Tobler AG general terms & conditions apply.
