Offer enquiry Temporary roof edge protection

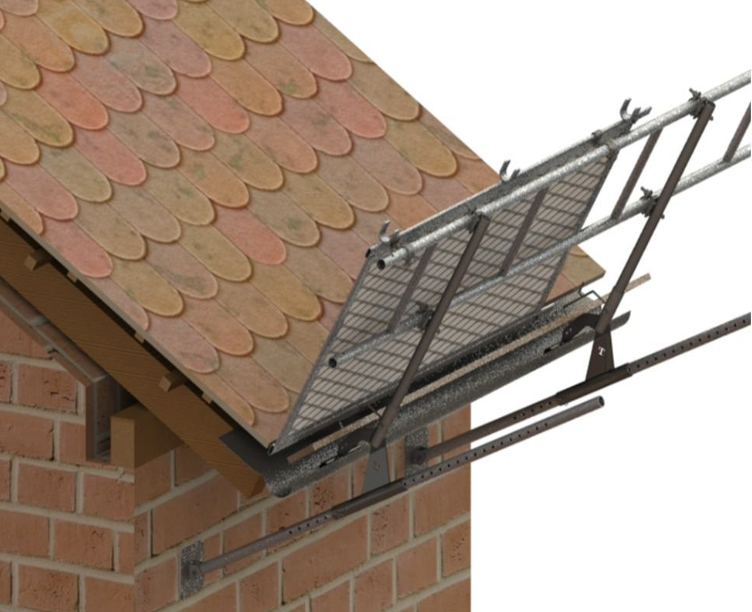

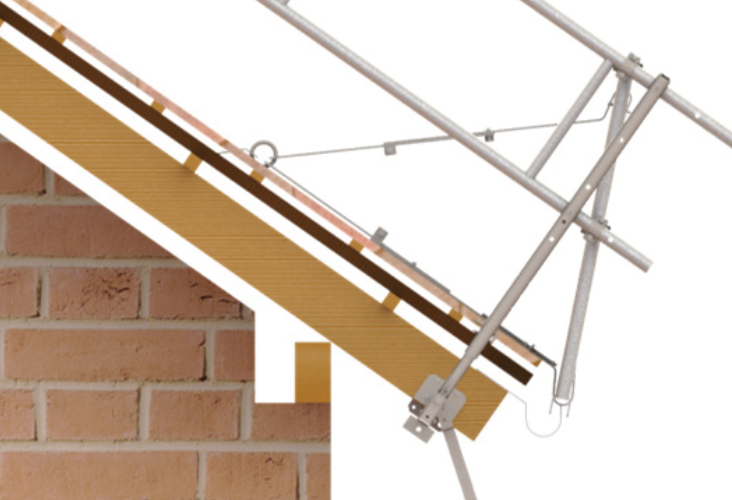

Temporary roof edge protection

Article no.	Designation	Total qty	piece
Z-611040S	Guardrailing SET for eaves (bracket for eaves, mesh guards, guardrail standards – 11 units for 20 running metres)	11
Z-611240	Mesh guard, 240 × 100 cm	8
Z-565500	Guardrail, 500 × 50 cm	4
Z-611043	Spacer	16

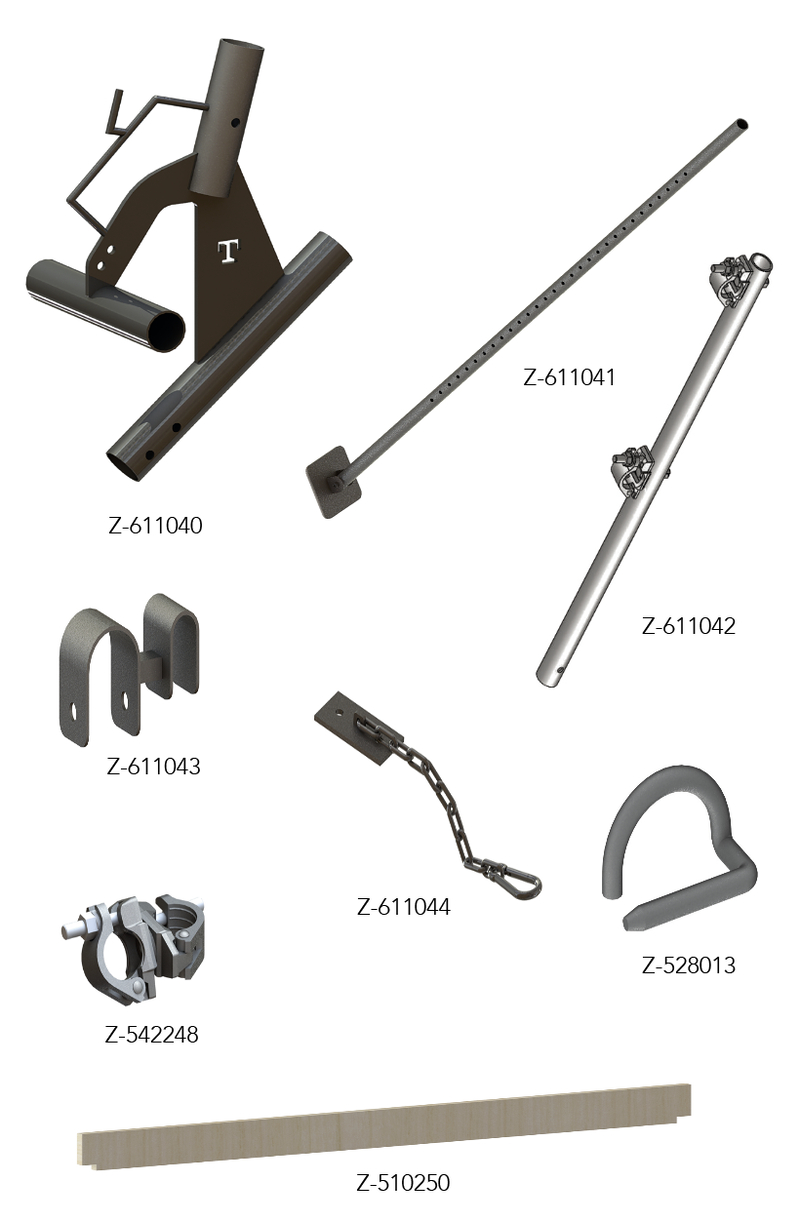

Temporary roof edge protection accesories

Article no.	Designation	Weight	piece
Z-611040	Eaves bracket	5,60 kg
Z-611041	Inclined support	5,40 kg
Z-611042	Guardrail standards	6,70 kg
Z-611043	Spacer soffit panel	0,40 kg
Z-611044	Fuse for the eaves bracket	0,60 kg
Z-542248	Swivel coupler 48/48	1,50 kg
Z-528013	Locking pin	0,22 kg
1-510250	Toe board wood	3,40 kg
1-510300	Toe board wood	4,90 kg

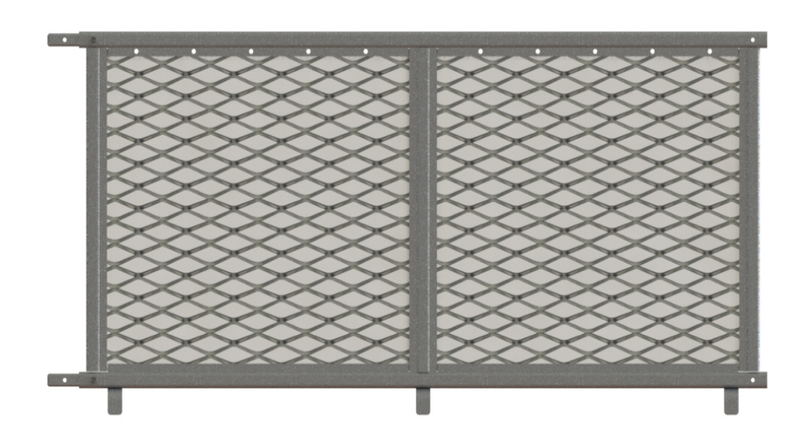

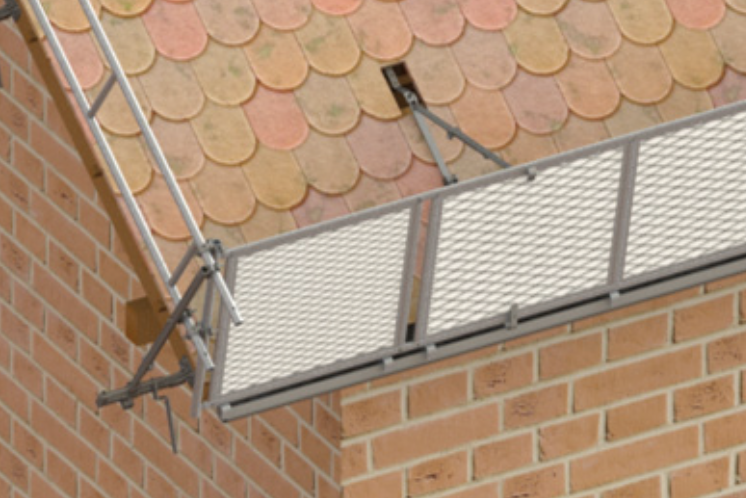

Mesh guards for the eaves

• Aluminium mesh
• Refer to assembly instructions

Article no.	Length	Width	Weight	piece
Z-611120	120 cm	100 cm	7,10 kg
Z-611240	240 cm	100 cm	15,90 kg

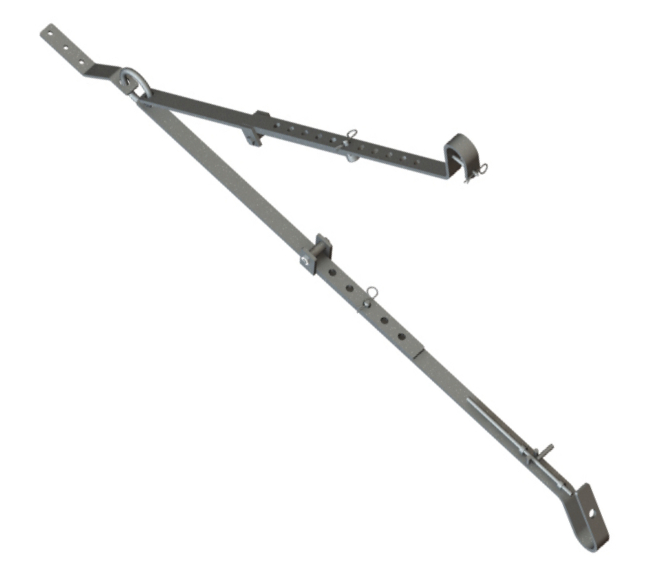

Complete steel

• Complete steel bracket for soffit mesh
• Adjustable

Article no.	Length	Weight	piece
Z-611242	100 cm	11,50 kg

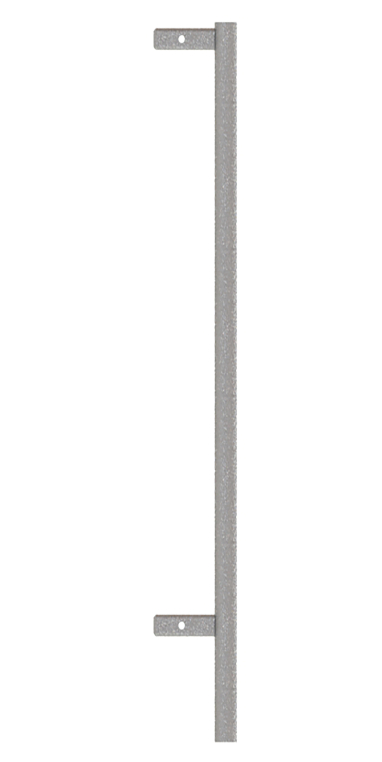

Connecting standards

• Connecting standards for soffit mesh
• Ø 48.3 mm thick connection to gable

Article no.	Length	Weight	piece
Z-611100	123 cm	2,10 kg

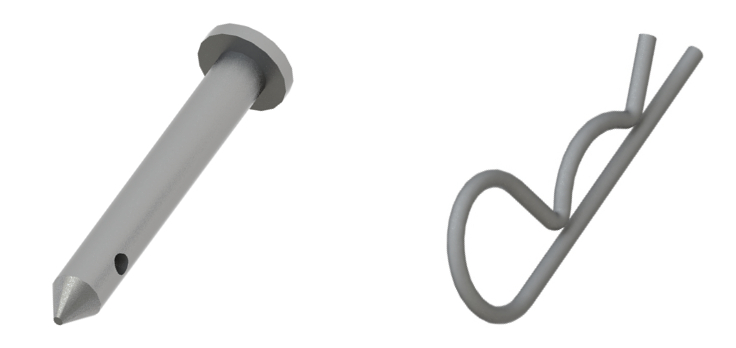

Bolts and spring cotter pins

Article no.	Designation	Weight	piece
Z-833001	Bolt Ø 10 × 60 mm	0,04 kg
Z-833002	Bolt Ø 10 × 80 mm	0,05 kg
Z-834001	Bolt Ø 12 × 60 mm	0,07 kg
Z-834002	Bolt Ø 12 × 80 mm	0,08 kg
Z-850001	Spring cotter pin	0,02 kg

All prices net in CHF, excl. VAT and transport, ex warehouse. Tobler AG general terms & conditions apply.
