Formwork Panels

The plastic-coated formwork panel of the future

Experience the future of conreting with the Tobler Longlife Panel. The innovative formwork panel has all-round polyurethane edge protection. Neither falls nor heavy blows can harm the panel.

Longlife Panels can cope with more than 100 usage cycles with a consistent concrete look and are ideal for exposed concrete.

Technical information
Wood type:	spruce
Coating:	3-layer concrete formwork panel with plastic surface, abrasion-resistant, nailable
Thickness:	27 mm
Bending strength EN 785:	35 m²
Specific weight:	15,5 kg/m²

Sustainably cost-efficient

Get ready for sustainbability with the new Tobler Longlife Panel.

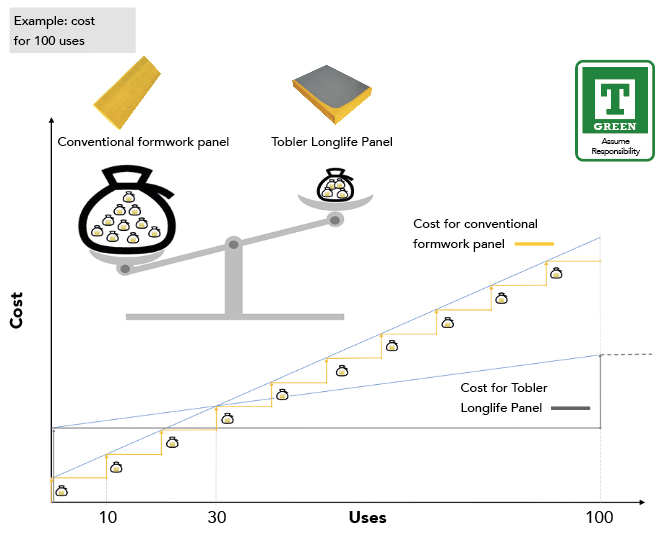

A conventional formwork panel just lasts around 10 uses before it already has to be replaced.

A Tobler Longlife Panel manages 100 or even more usage cycles with a perfect look. It pays off after as little as 30 uses – both for you and our environment.

Benefits

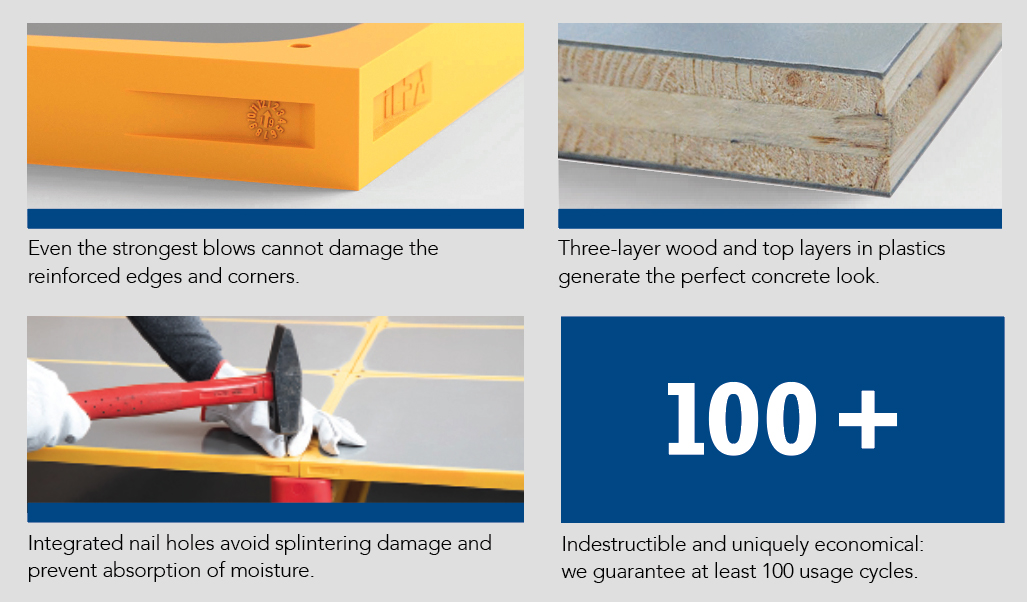

Plastic-coated with polyurethane edge protection
Consistent, durable concrete appearance
For a perfect exposed concrete result
Integrated nail holes
Impact-resistant edges and corners
Economic efficiency
Long service life

Resistant formwork panel with plastic surface

You can achieve smooth, even concrete surfaces using the three-layer FIR – Stock formwork panel with its polyolefin-based formwork shell. The plastic surface makes it easier to nail, thus avoiding chipping during nailing. The panel is both resistant to water, alkali concrete and other corrosive agents.

Technical information
Wood type:	spruce
Coating:	3-layer concrete formwork panel with polyolefin-based plastic surface
Thickness:	27 mm
Bending strength EN 789:	35 m²
Specific weight:	15,0 kg/m²

Benefits

High wear resistance
No chipping when nailing
Water-resistant surface (< 3 %)
Quick and easy removal of concrete residues from panels
Chemically resistant
Long service life

The conventional coated wooden formwork panel

The 3-layer formwork panel combines quality, durability, and dimensional stability. The panel is fully sanded and weatherproof glued with a melamine resin coating.The special PU edge sealing prevents penetration of moisture and concrete adhesion. Large or special sizes are also available on request.

Technical information
Wood type:	spruce
Coating:	Fully sanded surface Resistant melamine resin coating
Glue:	BFU 100 (AW 100)
Thickness:	27 mm
Bending strength EN 789:	35 m²
Specific weight:	ca. 12,5 kg/m²

Benefits

Highest quality and dimensional stability
Water-repellent edge sealing
No cracking due to the bar structure in the ceiling layers
Fully sanded
Resistant melamine resin coating
Continuously glued middle layer, thus no breaking of the longitudinal edges

Offer enquiry Formwork Panels

The plastic-coated formwork panel

• Packaging unit: 40 pieces

Item no.	Designation	Weight	Area	piece
84-F-505200	Dimensions: 200 × 50 cm	15,5 kg	1 m²

The plastic-coated formwork panel Tobler AG

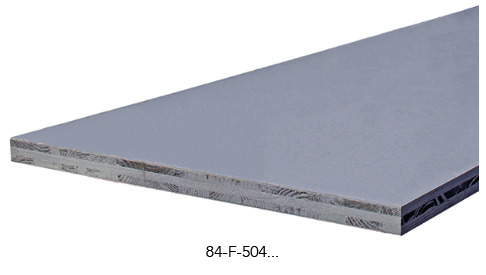

Resistant formwork panel with plastic surface

• Packaging unit: 40 pieces

Item no.	Designation	Weight	Area	piece
84-F-504200	Dimensions: 50 × 200 cm	15,0 kg	1 m²
84-F-504250	Dimensions: 50 × 250 cm	18,7 kg	1,25 m²

Resistant formwork panel with plastic surface Tobler AG

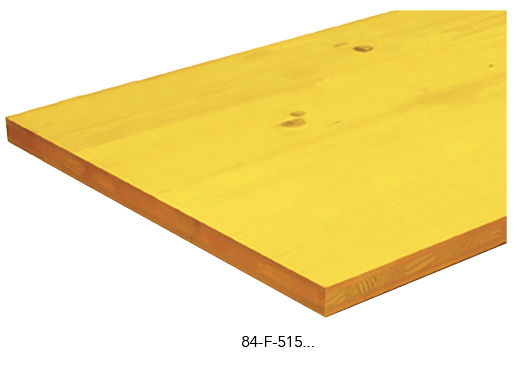

The conventional coated wooden formwork panel

• Packaging unit: 40 pieces

Item no.	Designation	Weight	Area
84-F-515100	Dimensions: 100 × 50 cm	6,2 kg	0,5 m²
84-F-515150	Dimensions: 150 × 50 cm	9,3 kg	0,75 m²
84-F-515200	Dimensions: 200 × 50 cm	12,5 kg	1 m²
84-F-515250	Dimensions: 250 × 50 cm	15,6 kg	1,25 m²
84-F-515300	Dimensions: 300 × 50 cm	18,7 kg	1,5 m²
