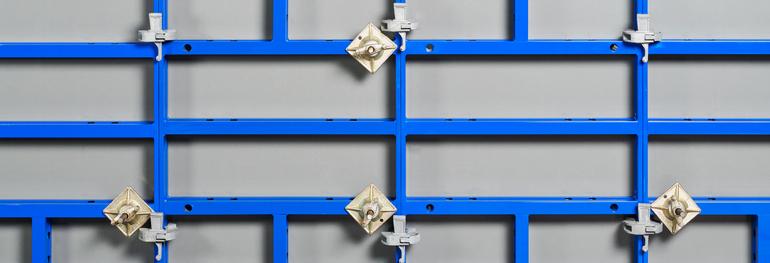

The wall elements

  1. Home
  2. Formwork System
  3. Wall formwork
  4. Tobler Manu Handset Formwork
  5. The wall elements

Offer enquiry The wall elements

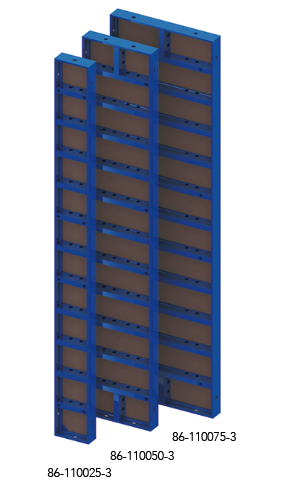

With phenolic resin panel

Item no. Width Height Weight piece
86-110025-3 25 cm 300 cm 23,3 kg
86-110050-3 50 cm 300 cm 36,4 kg
86-110075-3 75 cm 300 cm 50,4 kg
86-120025-3 25 cm 150 cm 12,1 kg
86-120050-3 50 cm 150 cm 18,0 kg
86-120075-3 75 cm 150 cm 24,7 kg
86-113025-3 25 cm 100 cm 8,6 kg
86-113050-3 50 cm 100 cm 13,5 kg
86-113075-3 75 cm 100 cm 17,8 kg
86-114025-3 25 cm 75 cm 6,7 kg
86-114050-3 50 cm 75 cm 10,7 kg
86-114075-3 75 cm 75 cm 14,1 kg
With phenolic resin panel Tobler AG

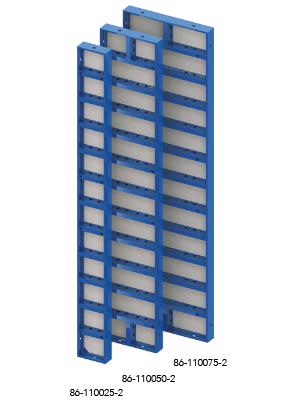

With Alkus panel

Item no. Width Height Weight piece
86-110025-2 25 cm 300 cm 24,3 kg
86-110050-2 50 cm 300 cm 39,2 kg
86-110075-2 75 cm 300 cm 52,2 kg
86-120025-2 25 cm 150 cm 12,5 kg
86-120050-2 50 cm 150 cm 19,2 kg
86-120075-2 75 cm 150 cm 25,5 kg
86-113025-2 25 cm 100 cm 9,1 kg
86-113050-2 50 cm 100 cm 14,4 kg
86-113075-2 75 cm 100 cm 19,2 kg
86-114025-2 25 cm 75 cm 7,1 kg
86-114050-2 50 cm 75 cm 11,4 kg
86-114075-2 75 cm 75 cm 15,2 kg
With Alkus panel Tobler AG

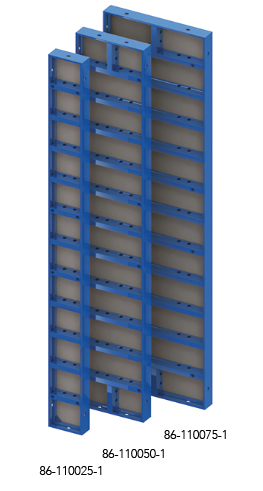

With Strato panel

Item no. Width Height Weight piece
86-110025-1 25 cm 300 cm 23,8 kg
86-110050-1 50 cm 300 cm 37,8 kg
86-110075-1 75 cm 300 cm 50,0 kg
86-120025-1 25 cm 150 cm 12,3 kg
86-120050-1 50 cm 150 cm 18,6 kg
86-120075-1 75 cm 150 cm 25,1 kg
86-113025-1 25 cm 100 cm 8,8 kg
86-113050-1 50 cm 100 cm 14,0 kg
86-113075-1 75 cm 100 cm 18,5 kg
86-114025-1 25 cm 75 cm 6,9 kg
86-114050-1 50 cm 75 cm 11,1 kg
86-114075-1 75 cm 75 cm 14,7 kg
With Strato panel Tobler AG

Multi-purpose elements

Item no. Width Height Weight piece
86-123075-3 75 cm 100 cm 17,8 kg
86-122075-3 75 cm 150 cm 24,5 kg
86-123075-2 75 cm 100 cm 25,7 kg
86-122075-2 75 cm 150 cm 19,0 kg
86-123075-1 75 cm 100 cm 18,4 kg
86-122075-1 75 cm 150 cm 24,9 kg
Multi-purpose elements Tobler AG

Wall levelling

Item no. Width Height Weight piece
86-160100 5 cm 100 cm 2,2 kg
86-160150 5 cm 150 cm 3,1 kg
86-160300 5 cm 300 cm 6,1 kg
86-161100 10 cm 100 cm 3,0 kg
86-161150 10 cm 150 cm 4,4 kg
86-161300 10 cm 300 cm 8,4 kg
Wall levelling Tobler AG

All prices net in CHF, excl. VAT and transport, ex warehouse. Tobler AG general terms & conditions apply.
