Offer enquiry Railings

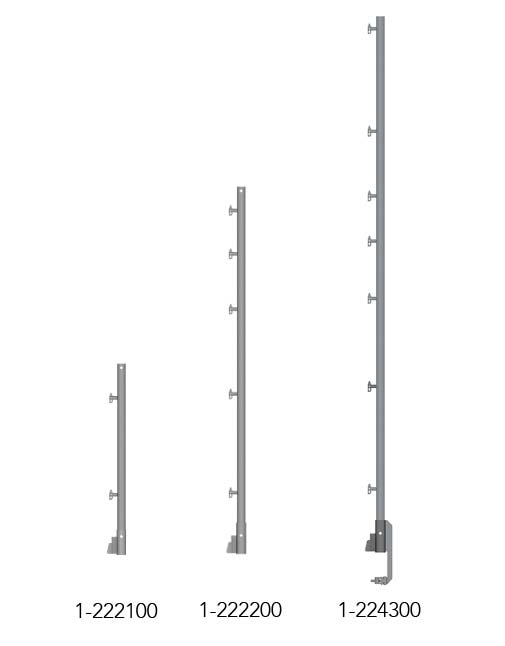

Railing post

• with toe board holder
• Tube diameter 48.3 mm

Item no.	Designation	Height	Wall Thickness	Weight	piece
1-222100	made of steel	110 cm	2,7 mm	4,0 kg
1-222200	made of steel	200 cm	2,7 mm	7,3 kg
1-224200	made of steel	200 cm	3,25 mm	8,4 kg
1-224300	made of steel	300 cm	3,25 mm	13,1 kg
1-122100	• made of aluminium • only for roof pitches up to 25	110 cm	4,0 mm	2,1 kg
1-122200	• made of aluminium • only for roof pitches up to 25	200 cm	4,0 mm	3,8 kg

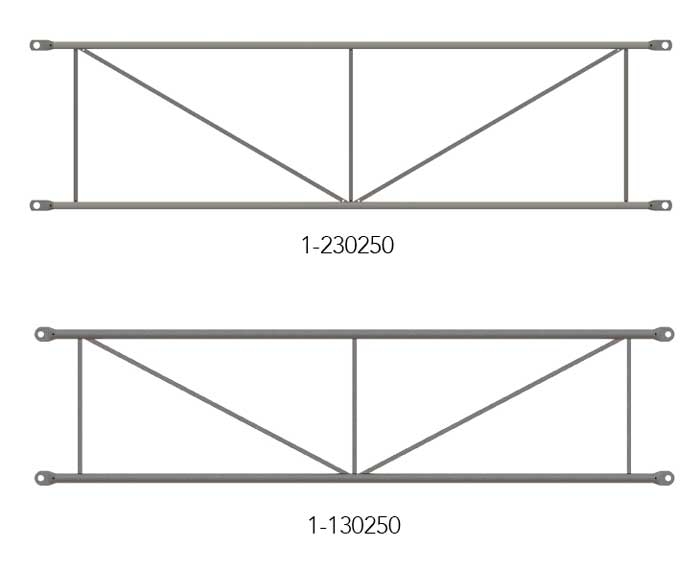

Steel and aluminium railings

with diagonal bracing

Item no.	Designation	Length	Height	Weight	piece
1-230070	made of steel	70 cm	60 cm	2,5 kg
1-230100	made of steel	100 cm	60 cm	3,5 kg
1-230125	made of steel	125 cm	60 cm	4,2 kg
1-230150	made of steel	150 cm	60 cm	5,1 kg
1-230180	made of steel	180 cm	60 cm	6,0 kg
1-230200	made of steel	200 cm	60 cm	6,9 kg
1-230225	made of steel	225 cm	60 cm	7,7 kg
1-230250	made of steel	250 cm	60 cm	8,3 kg
1-230300	made of steel	300 cm	60 cm	10,1 kg
1-130070	made of aluminium	70 cm	60 cm	1,4 kg
1-130100	made of aluminium	100 cm	60 cm	2,0 kg
1-130150	made of aluminium	150 cm	60 cm	2,9 kg
1-130200	made of aluminium	200 cm	60 cm	4,0 kg
1-130250	made of aluminium	250 cm	60 cm	4,8 kg
1-130300	made of aluminium	300 cm	60 cm	5,8 kg
1-130350	made of aluminium	350 cm	60 cm	6,7 kg

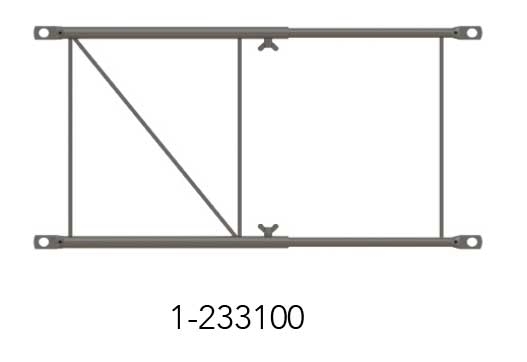

Adjustable steel railing

Item no.	Length	Weight	piece
1-233100	70 – 105 cm	5,4 kg
1-233300	170 – 300 cm	12,2 kg

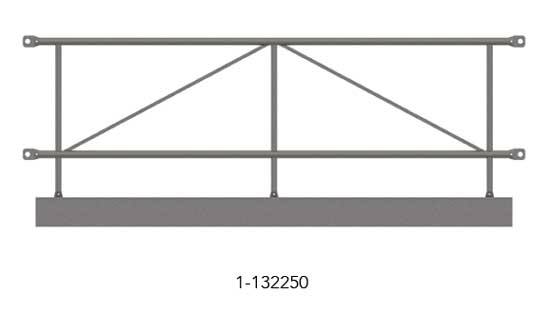

Aluminium safety railing

• with diagonal bracing
• with toe board

Item no.	Length	Height	Weight	piece
1-132070	100 cm	70 cm	3,0 kg
1-132100	100 cm	100 cm	4,0 kg
1-132150	100 cm	150 cm	5,5 kg
1-132200	100 cm	200 cm	7,5 kg
1-132250	100 cm	250 cm	8,9 kg
1-132300	100 cm	300 cm	11,0 kg
1-132350	100 cm	350 cm	12,4 kg
1-132400	100 cm	400 cm	14,5 kg

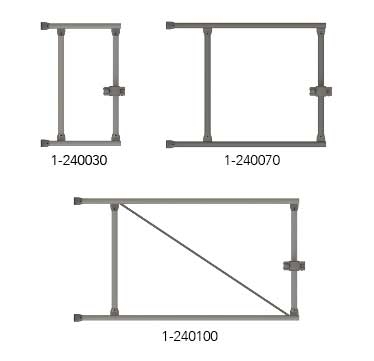

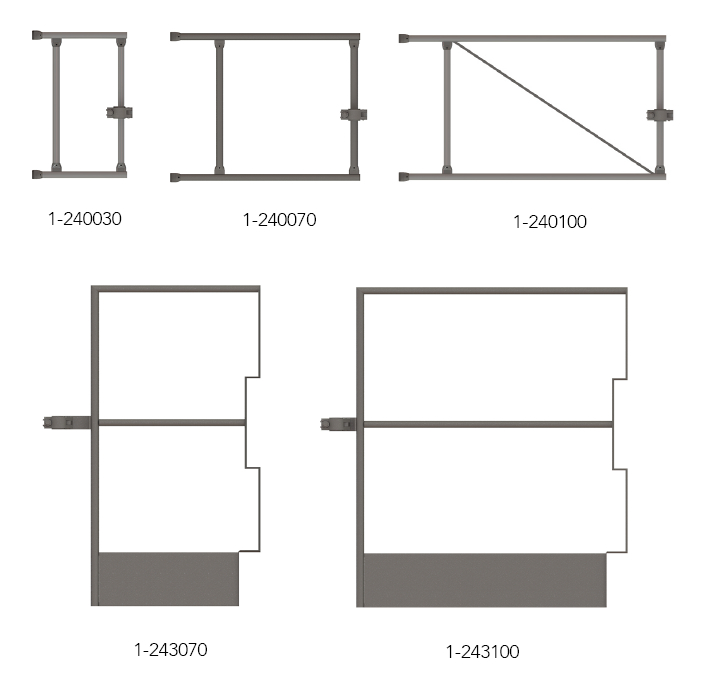

End railing made of steel

Item no.	Designation	Width	Weight	piece
1-240030	with screw coupling	30 cm	3,0 kg
1-240070	with screw coupling	70 cm	3,8 kg
1-240100	with screw coupling	100 cm	5,2 kg
1-241070	with wedge clutch	70 cm	4,6 kg

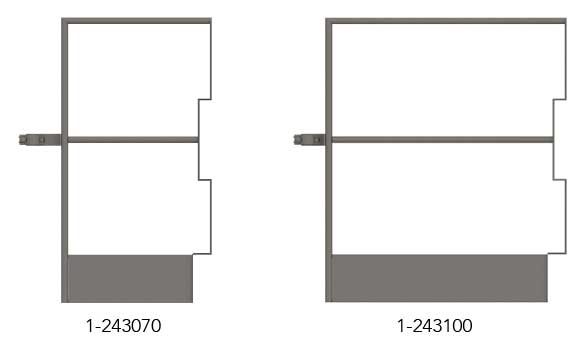

End railing made of steel with end toe board

Item no.	Width	Height	Weight	piece
1-243070	70 cm	120 cm	6,5 kg
1-243100	100 cm	120 cm	7,1 kg

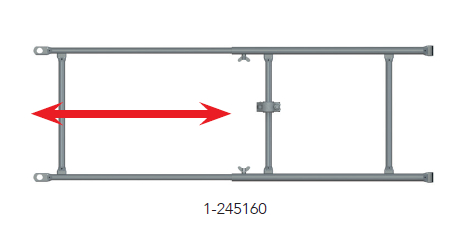

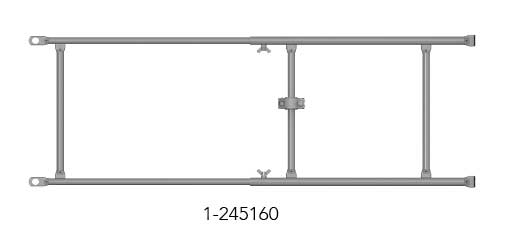

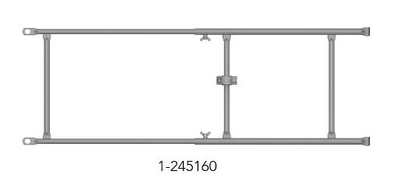

Adjustable end railing made of steel

• with screw coupling

Item no.	Width	Weight	piece
1-245160	70 / 100–160 cm	8,5 kg
1-245210	70 / 160–210 cm	9,8 kg
