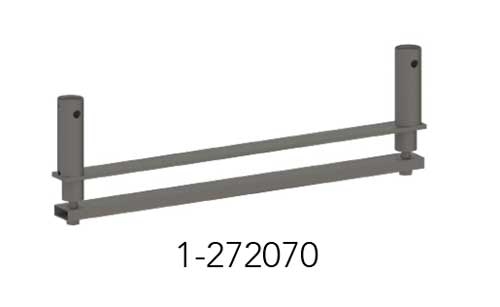

Special traverse

• for scaffolding tapers on the long side and stairway entrances
• Frames and guardrail posts can be attached
• made of galvanised tubular steel
• max. 1 frame can be attached
• can only be used with aluminium or steel decking

Item no.	Width	Weight	piece
1-272070	70 cm	5,3 kg
1-272100	100 cm	6,9 kg

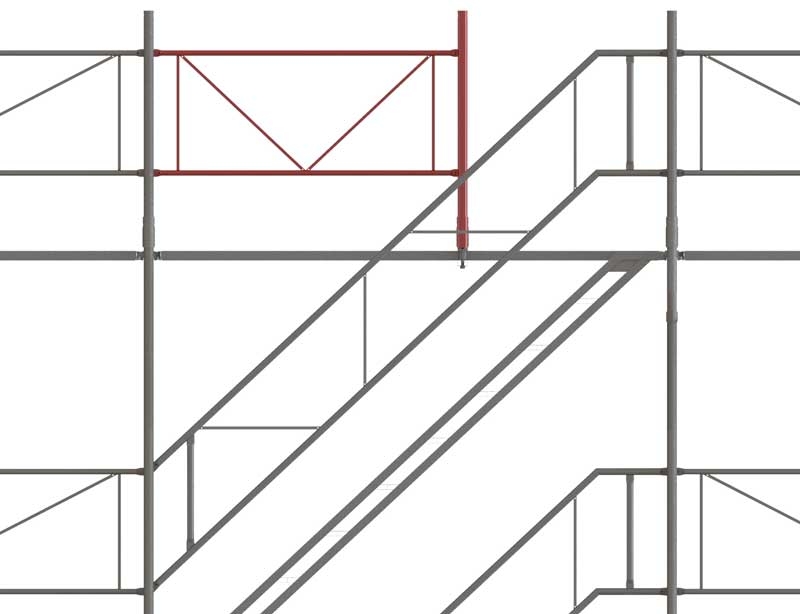

Application example

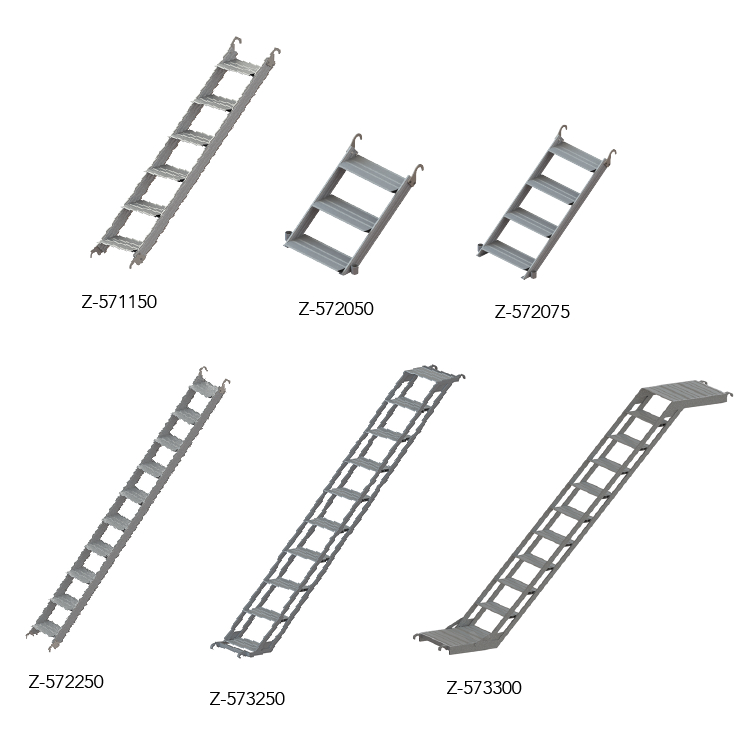

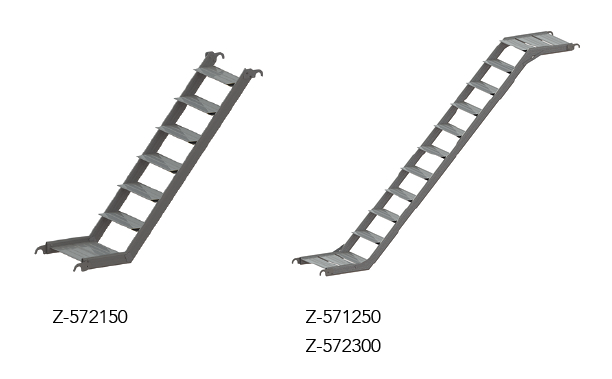

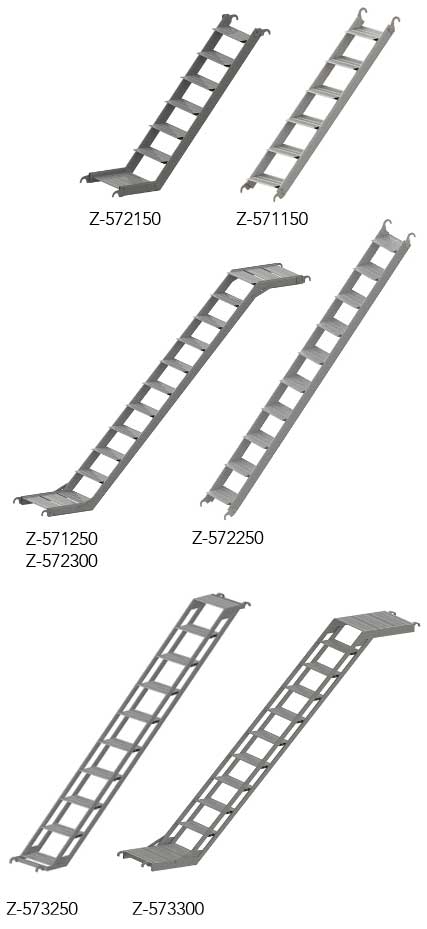

Staircase aluminium

Item no.	Designation	Length	Width	Height	Weight	piece
Z-572150	with platform	150 cm	60 cm	125 cm	11,5 kg
• non-slip • 18 cm tread depth
Z-571150	without platform	150 cm	60 cm	125 cm	13,3 kg
Z-571250	with platform	250 cm	60 cm	200 cm	23,6 kg
Z-572200	with single cheek	200 cm	60 cm	200 cm	15,9 kg
Z-572250	without platform	250 cm	60 cm	200 cm	17,6 kg
Z-572300	with platform	300 cm	60 cm	200 cm	24,4 kg
• non-slip • 18 cm tread depth • with double cheek
Z-573250	without platform	250 cm	60 cm	200 cm	18,1 kg
Z-573300	with platform	300 cm	60 cm	200 cm	28,7 kg
Z-571150	without platform	150 cm	60 cm	125 cm	13,3 kg

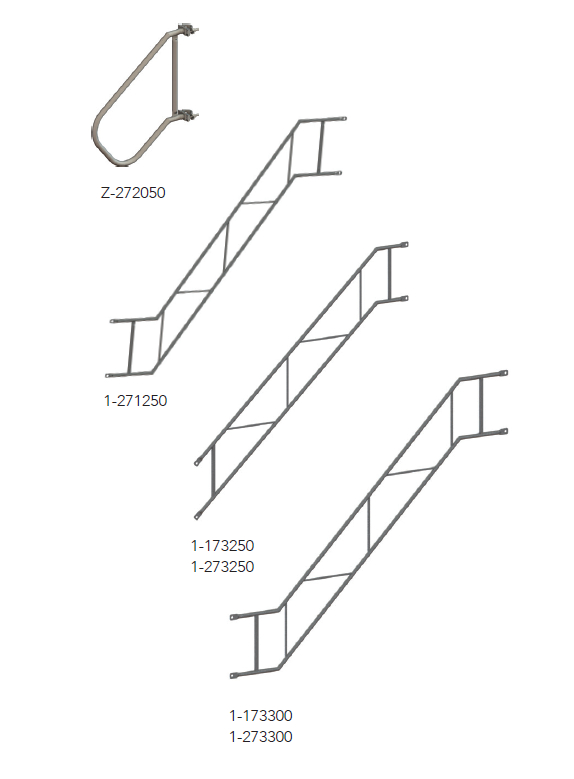

Stair railing

Item no.	Designation	Length	Height	Weight	piece
made of steel
1-271250	Suitable for staircase with landing Z-571250	250 cm	200 cm	14,7 kg
1-273200		200 cm	200 cm	11,6 kg
1-273250		250 cm	200 cm	13,7 kg
1-273300		300 cm	200 cm	15,8 kg
made of aluminium
1-173200		200 cm	200 cm	6,2 kg
1-173250		250 cm	200 cm	7,4 kg
1-173300		300 cm	200 cm	8,5 kg

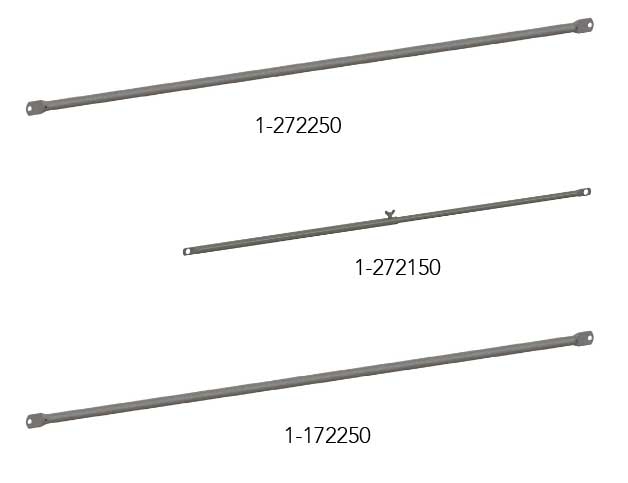

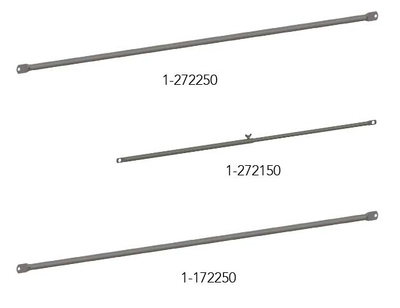

Stair handrail

Item no.	Designation	Length	Weight	piece
made of steel
1-272200	Suitable for staircase Z-572200	200 cm	4,1 kg
1-272250	Suitable for staircase Z-572250	250 cm	4,9 kg
adjustable
1-272150		100 – 150 cm	3,2 kg
1-272320		180 – 320 cm	5,2 kg
made of aluminium
1-172200	Suitable for staircase Z-572200	200 cm	2,5 kg
1-172250	Suitable for staircase Z-572250	200 cm	3,0 kg
