Offer enquiry Flat roof railing bracket

Flat roof railing bracket

• Made of galvanised steel
• Wall thickness 3.25 mm

Article no.	Length	Weight	Bracket width	piece
Z-610040	27 cm	2,50 kg	15 x 15 cm
Z-610060	60 cm	4,20 kg	15 x 15 cm

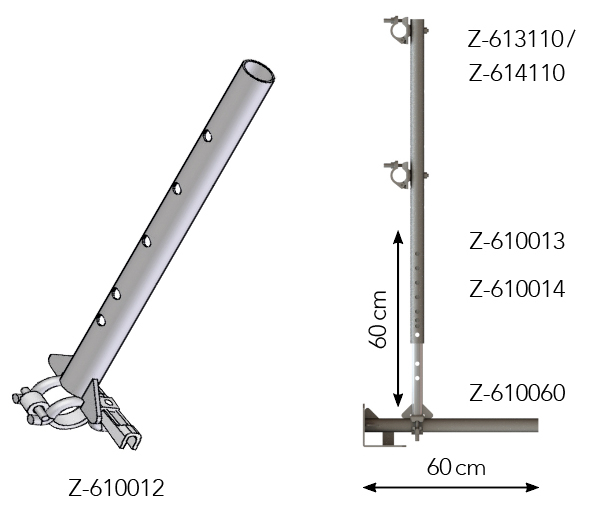

Post bracket

• Tube Ø 38 mm
• Wall thickness 3.25 mm

Article no.	Length	Weight	piece
Z-610012 with tapered pin mount, adjustable	60 cm	2,50 kg
Z-610013 with screw mounts, adjustable	60 cm	2,10 kg
Z-610014 with tapered pin mount, non-adjustable	30 cm	2,50 kg

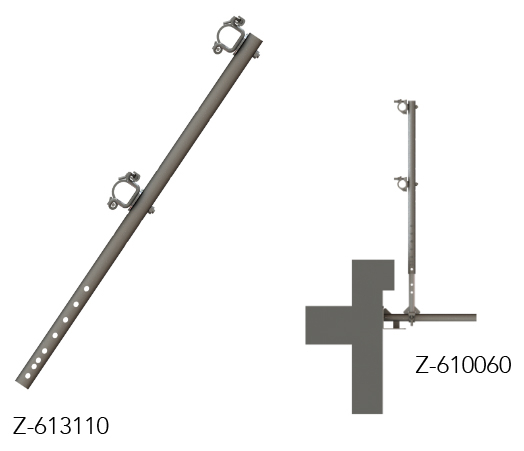

Guardrail post tapered pin mounts

• Aluminium with two tapered pin mounts

Article no.	Length	Wall thickness	piece
Z-613110	110 cm	4 mm

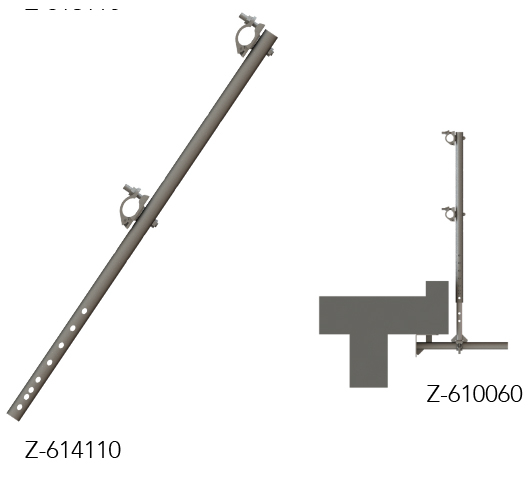

Guardrail post screw mounts

• Aluminium with two screw mounts

Article no.	Length	Wall thickness	piece
Z-614110	110 cm	3,60 mm

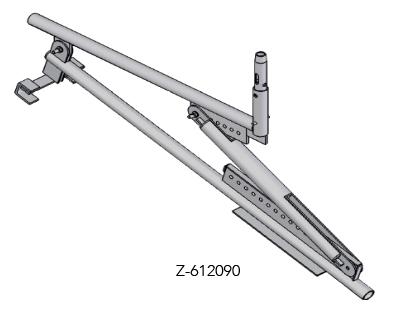

Roof scaffolding bracket

• Roof scaffolding bracket made of aluminium
• Adjustable height
• Load: 500 kg / bracket

Article no.	Length	Weight	piece
Z-612090	90 cm	11,80 kg

Push-on spigot

• Push-on spigot with coupling, compatible with MATO 1, 2 and 8 as well as roof scaffolding bracket

Article no.	Length	Weight	piece
Z-612091	25 cm	1,80 kg

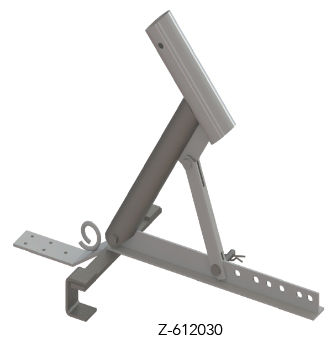

Solar bracket

• Solar bracket
• Adjustable angle 0 – 60°

Article no.	Length	Weight	piece
Z-612030	30 cm	4,80 kg

Additional support for solar bracket

Article no.	Length	Weight	piece
Z-612035	29 cm	1,20 kg

Flat roof bracket for metal facade

Article no.	Weight	piece
Z-610020	3,50 kg

All prices net in CHF, excl. VAT and transport, ex warehouse. Tobler AG general terms & conditions apply.
