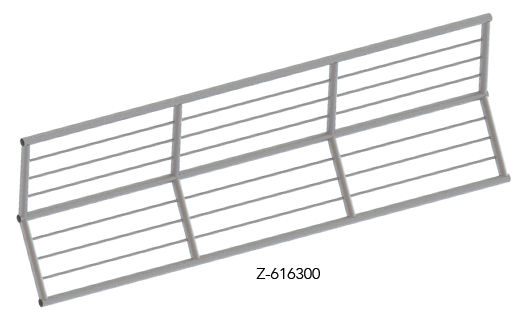

The Tobler integral console bracket is easy to handle, stable and flexible to use. Together with the special safety railings based on round tubes, it is the perfect choice for working safely and productively on sloped and flat roofs.

The integral console bracked simply hooks onto the gutter or the roof edge. The force is dispersed by means of special facade supports. For more information, see the detailed instructions for construction and use.

Labeling :

The Integral Console Bracket MATO Pro has been granted NF approval by AFNOR CERTIFICATION (No. R27.02).

The NF label for Equipements de chantiers certifies compliance with the NF EN 13374 standard and the NF 096 reference document. The list of certified products and their classification can be found at www.marque-nf.com.

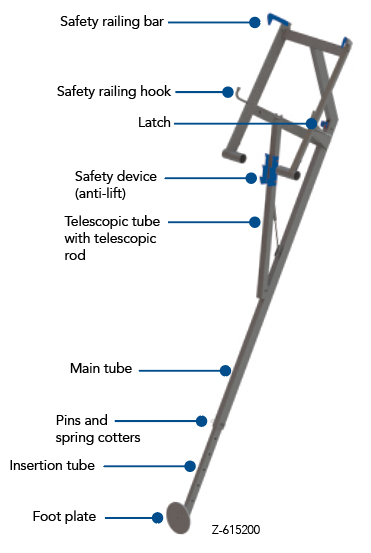

Assembling the integral console bracket

The Tobler integral console bracket and its safety railing are designed to provide appropriate fall protection on both flat and inclined roofs.

The product is suitable as temporary edge protection in the roof area, in accordance with the requirements of EN 13374, for roofs inclined up to 45°. It is used in work areas and foot traffic routes where roofs pitches are greater than 0° and up to 45°, if the fall height is exceeding 2 m.

Step 1: Hooking and securing

Version 1: Installation in the gutter

• The integral console bracket is inserted in the gutter.
• The anti-lift device is positioned underneath the bead fold or another kind of edge on the gutter.
• The instructions for construction and use must always be followed.

Version 2: Attachment to the roof edge

• The round tubes of the integral console bracket

  are positioned behind a roof edge that is at least 6 cm high.
• The anti-lift device is secured by attaching it ­underneath a copper roof edge strip or another type of edge formation.
• The instructions for construction and use must ­always be followed.

Step 2: Bracing the foot plate on the facade

• A load-supporting, firm and even facade is required for the bracing.
• The instructions for construction and use must ­always be followed.

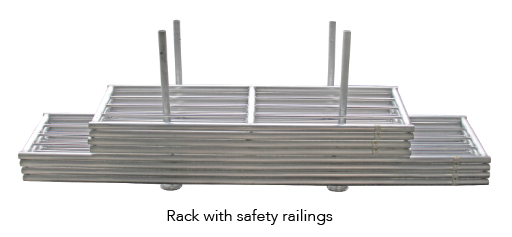

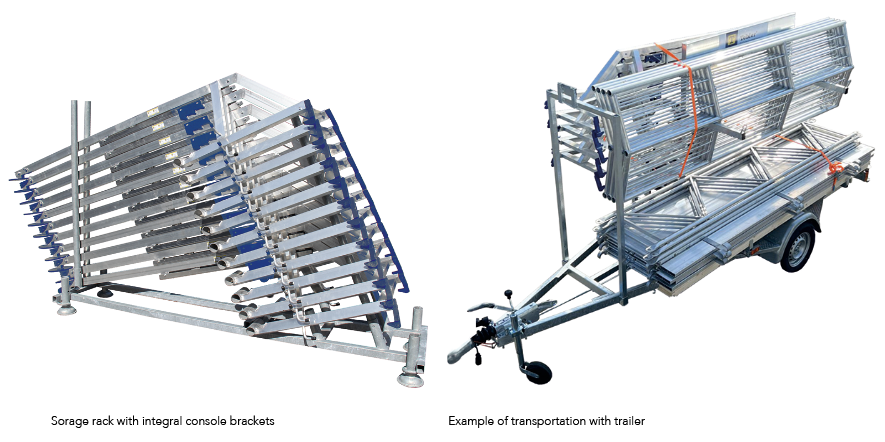

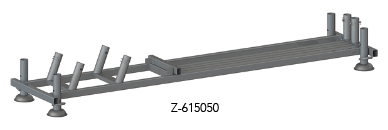

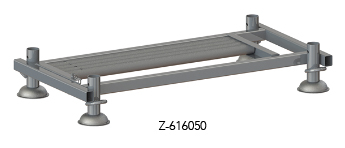

Storage racks for safe transportation

Logistics always play a very important role. On construction sites and during transport, time and space mean money. Due to the ever-decreasing numbers of staff on sites, advantages in transport and logistics are becoming more and more important. Tobler is your ideal partner for storage and logistics.
