Ridge and gable protection

Your advantages

Vollaluminium – Leichtbau: nur 7,8 kg
einfacher Aufbau
verstellbar von 0 – 30 °
Solarpanels bis an den First montierbar
Absturzsicherung dort wo sie gebraucht wird
komplettes Einrüsten nicht nötig
Kein Entfernen des Dachziegels notwendig
Geländerpfosten mit Schnellverschluss- kupplungen
auf allen Ziegeldächern anwendbar bis 45 ° Dachneigung
zuverlässiges, mobiles Seitenschutz-System nach EN 13374, Klasse A

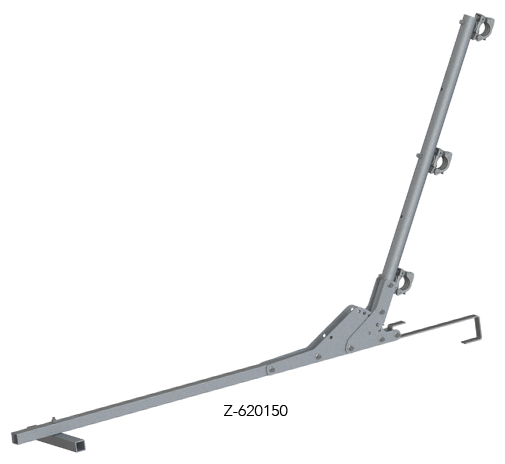

Console bracket for ridge guardrails

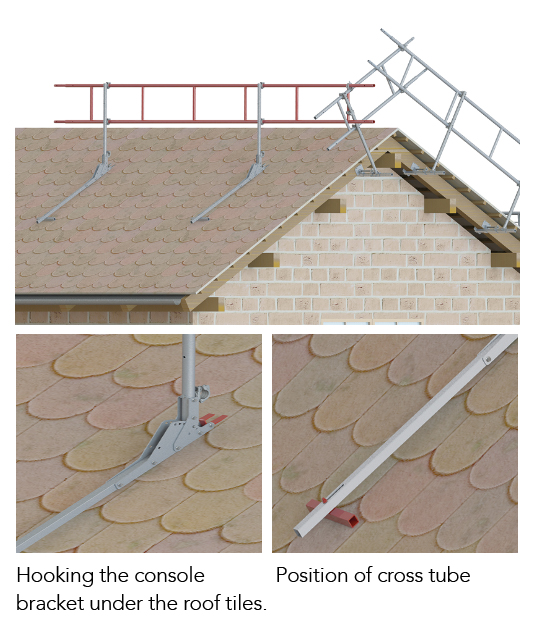

Tobler ridge protection is easy, safe and adjustable. It offers perfect protection against falling near the ridge of the roof and, thanks to its light weight, is very easy and quick to assemble and disassemble. The stable anchor hook is mounted under the roof tiles, which simply need to be raised slightly for the purpose.

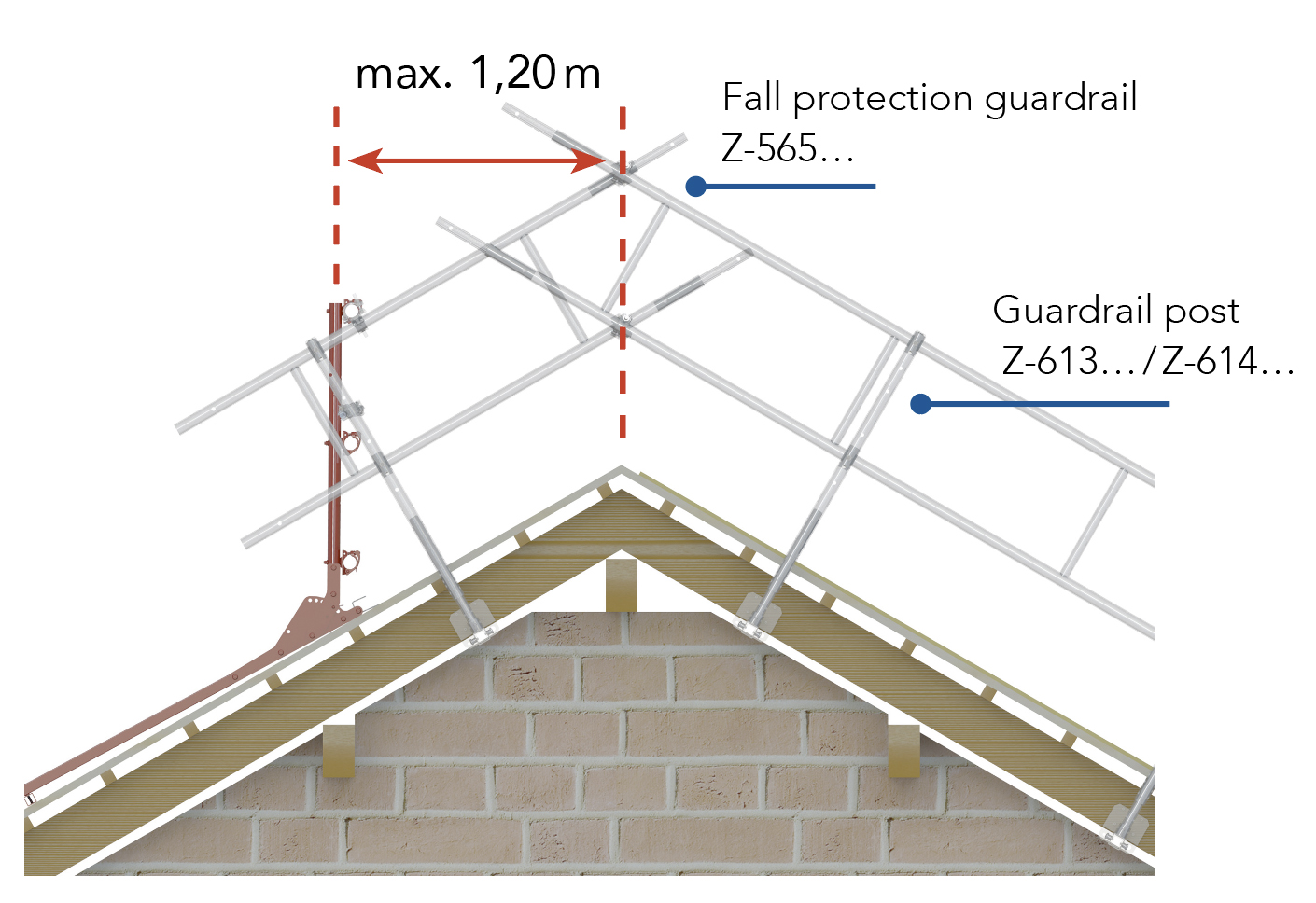

Gable protection

Building on the Tobler rafter ties, guardrail posts with half-couplings are used to attach the upper and lower scaffolding tubes for the gable guardrail. The guardrail posts are secured in place using pins or screws.

Offer enquiry Ridge and gable protection

Console bracket for ridge guardrails

Item no.	Length	Height	Weight	Adjustable	piece
Z-620150	160 cm	100 cm	7,80 kg	0 – 30 °

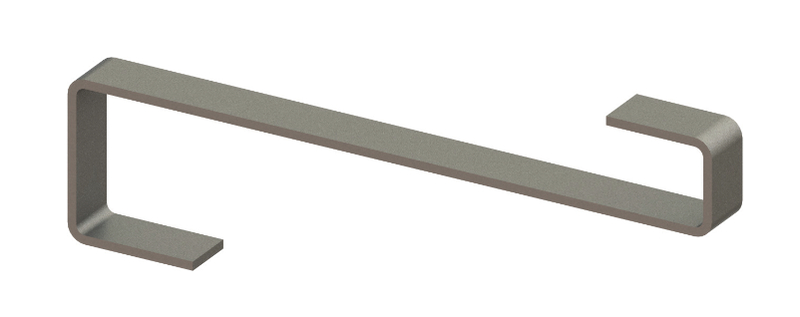

Anchor hook for ridge protection

This special anchor hook is used if the standard anchor hook cannot be used. It is screwed into the rafters.

Item no.	Weight	piece
Z-620015	0,70 kg

Anchor hook for ridge protection Tobler AG

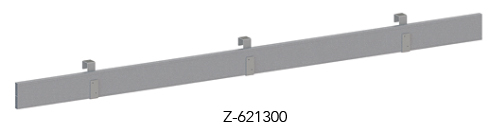

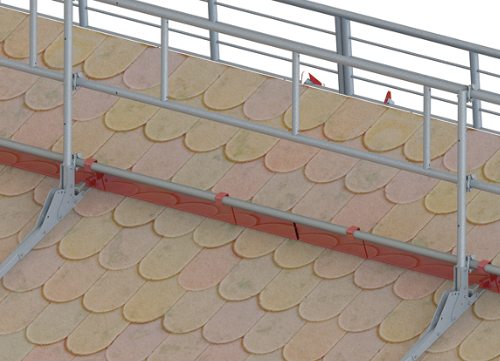

Toe board for ridge protection

• Made of aluminum

Item no.	Length	Height	Weight	piece
Z-621300	300 cm	15 cm	5,00 kg

Toe board for ridge protection Tobler AG

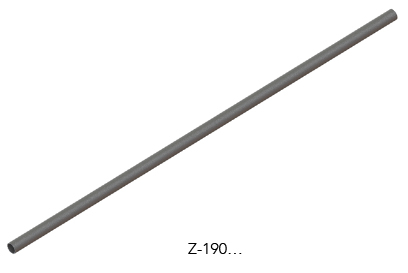

Scaffolding tube

• Made of aluminum
• Diameter: 48,3 mm × 4,00 mm

Item no.	Length	Weight
Z-190050	50 cm	0,70 kg
Z-190100	100 cm	1,40 kg
Z-190150	150 cm	2,10 kg
Z-190200	200 cm	2,80 kg
Z-190250	250 cm	3,60 kg
Z-190300	300 cm	4,30 kg
Z-190350	350 cm	5,00 kg
Z-190400	400 cm	5,70 kg
Z-190450	450 cm	6,40 kg
Z-190500	500 cm	7,10 kg
