Cable bridges

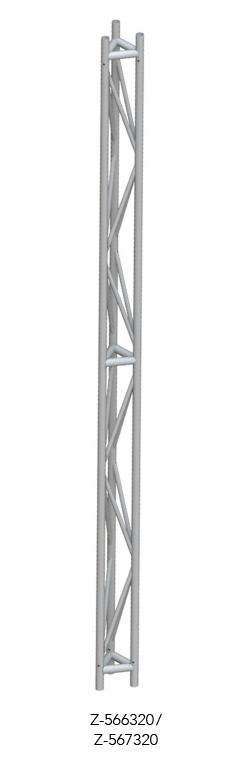

Triangular beam for cable bridge aluminum

• Axial dimension: 20 × 20 ×20 cm
• Made of aluminum

Item no.	Length	Weight	piece
Z-566160	160 cm	16,0 kg
Z-566320	320 cm	24,0 kg
Z-566420	420 cm	30,0 kg
Z-566520	520 cm	36,0 kg
Z-566620	620 cm	42,0 kg
Z-566720	720 cm	52,6 kg
Z-566820	820 cm	54,0 kg

Triangular beam for cable bridge steel

• Made of steel

Item no.	Length	Weight	piece
Z-567160	160 cm	34,0 kg
Z-567320	320 cm	43,5 kg
Z-567420	420 cm	55,0 kg
Z-567520	520 cm	75,0 kg

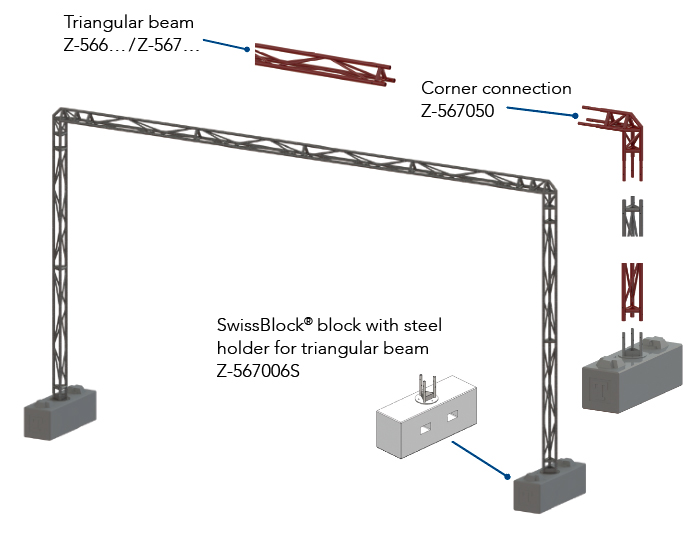

Corner connection to triangular beam

• Made of steel

Item no.	Weight	piece
Z-567050	29,2 kg

Connecting tube

Item no.	Length	piece
Z-560045	45 cm

Hex bolt including nut

Item no.	Size	piece
Z-570065	M 12 × 65

Cross coupling 48 / 48 mm with screw

Item no.	Weight	piece
Z-540248	1,2 kg

Steel holder for triangular beam

Item no.	Weight	piece
Z-567015	14,2 kg

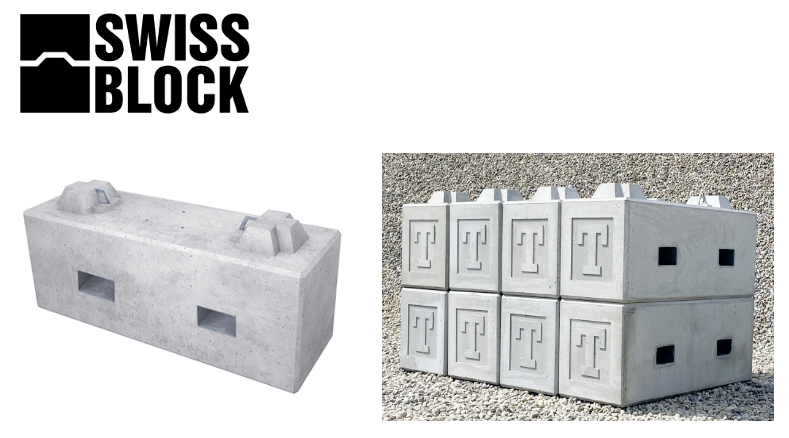

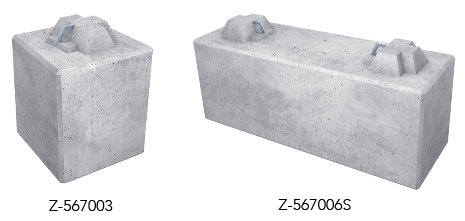

SwissBlock® system blocks

Item no.	Dimensions	Weight per element	piece
Z-567006S	150 × 50 × 50 cm	840 kg
Z-567003	50 × 50 × 50 cm	300 kg

All prices net in CHF, excl. VAT and transport, ex warehouse. Tobler AG general terms & conditions apply.
