Stair towers Tobler AG

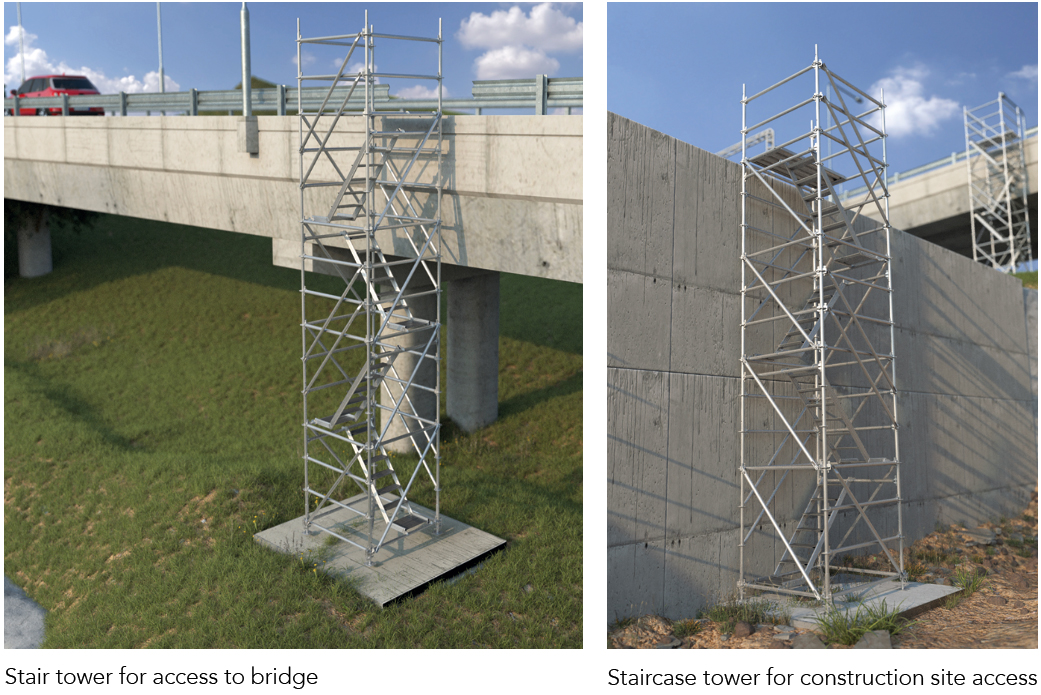

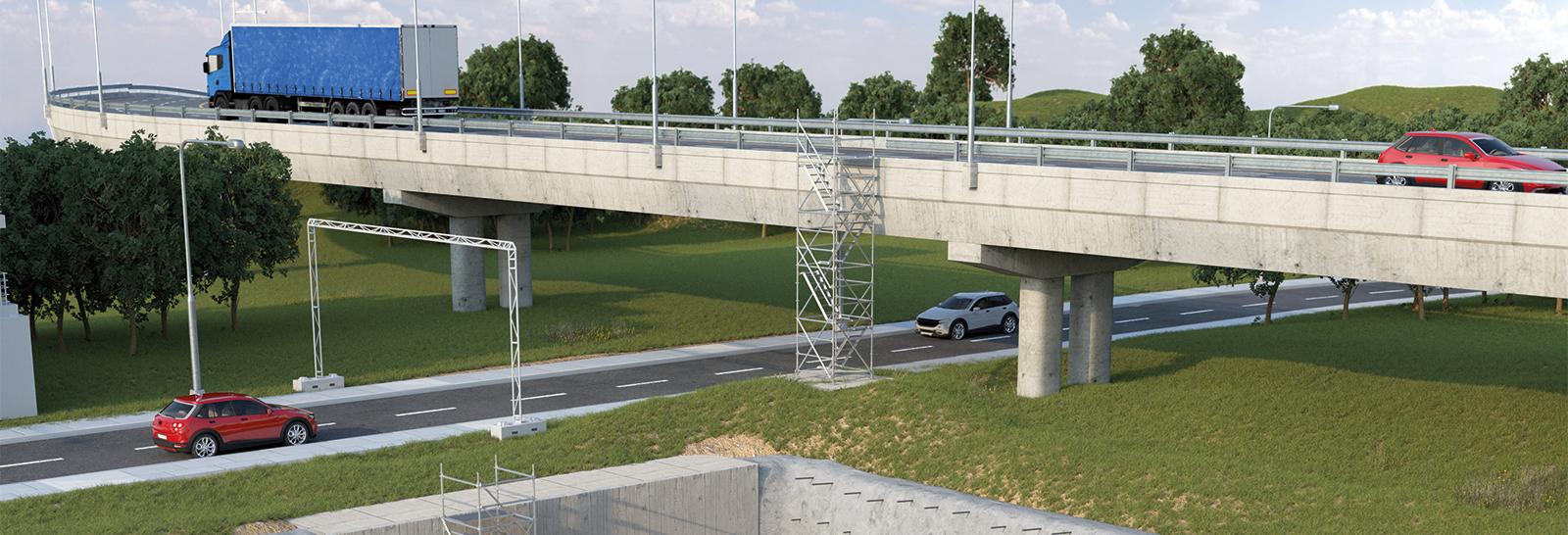

Stair towers

Your advantages

Fastest and simplest way to access a construction site
Comfortable and ergonomic way to access every working level
Easy to assemble
The perfect solution for easily transporting all your materials
High level of worker protection and safety

When it comes to safety and efficiency on your construction site, at Tobler we make no comprises.
Reach heights quickly, easily and comfortably with our stair towers.

Offer enquiry Stair towers

“Standard” stair tower

• Freely extendable height

Item no.	Designation	Staircase tower, 3 m high/unit	Staircase tower, 6 m high/unit	Staircase tower, 9 m high/unit	piece
8-123150	Heavy-duty ledger 150 cm, aluminum, 6,4 kg	6	10	14
8-210043	Base post 43 cm, steel, 2,2 kg	4	4	4
8-213200	Vertical standard 200 cm, steel, screwed-on spigot, 9,5 kg	8	8	20
8-213300	Vertical standard 300 cm, steel, screwed-on spigot, 14,3 kg		4
8-220150	Ledger 150 cm, steel, 4,9 kg	14	31	43
8-226150	Vertical diagonal brace 150 × 150 cm, steel, 7,7 kg	9	18	26
8-510010	Spindle lock for base post 43 cm, 0,9 kg	4	4	4
8-9550099	Perforated rosette, clampable, spanner size 22 mm, 1,0 kg	4	8	12
Z-121150	Platform, aluminum, 150 × 64 cm, Load-bearing capacity: 600 kg/m², platform height: 25 mm, with wind protection, 10,4 kg	1	1	1
Z-570065	Hex bolt M 12 × 65, steel galvanised / DIN 931, incl. nut 0,10 kg	4	12	16
Z-572150	Stair with landing, aluminum, 60 × 150 cm, height 125 cm, 13,3 kg	2	4	6
Z-9520080	Screw jack baseplate 80 cm, with rolled thread, 4,9 kg	4	4	4

All prices net in CHF, excl. VAT and transport, ex warehouse. Tobler AG general terms & conditions apply.
